Remote Control Ready 5 Spool Electro-Hydraulic Valve 80 Lpm

Name: 5 Spool Hydraulic Valve 80lpm 5 Electro Hydraulic Actuators
SKU: HID-MB-5-5
Price: 3047.95 AUD
Availability: PreOrder

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves

SKU HID-MB-5-5

AU$3 047.95

🔥 EOFY SALE!

VOLTAGE

12 VOLT

24 VOLT

Out of stock, available for pre-order

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Remote Control Ready 5 Spool Electro-Hydraulic Valve 80 Lpm

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves

Product Details

Weight: 18.00 kg

Preorder Now New Stock arriving End of September 2024 preorder now.

Remote Control Ready 5 Spool Electro-Hydraulic monobloc Valve 80 Lpm for larger tilt trays.

Want to Know if a Remote Controlled Hydraulic Valve in your Factory or Mobile Equipment will be any Good for Your Business?

Read On to Find out.

Efficiency

Remote Controlled Hydraulic valves improve efficiency, and "Efficiency is defined as the ability to accomplish something with the least amount of wasted time, money, and effort or to put it another way "Competency in performance".

Definition courtesy of https://www.facilitiesnet.com/

Most of our Clients chose to go the remote control route because:

They realised they were wasting time and being inefficient and or
They were using expensive labour to press buttons and to pull and push levers and or
They wanted a safer and quicker way to complete a repetitive or somewhat dangerous task or
They wanted to either save money or make more money by doing all the above.

SO GET YOURSELF A 5 SPOOL MONOBLOCK VALVE COMPLETE WITH 10 ELECTRO-HYDRAULIC ACTUATORS

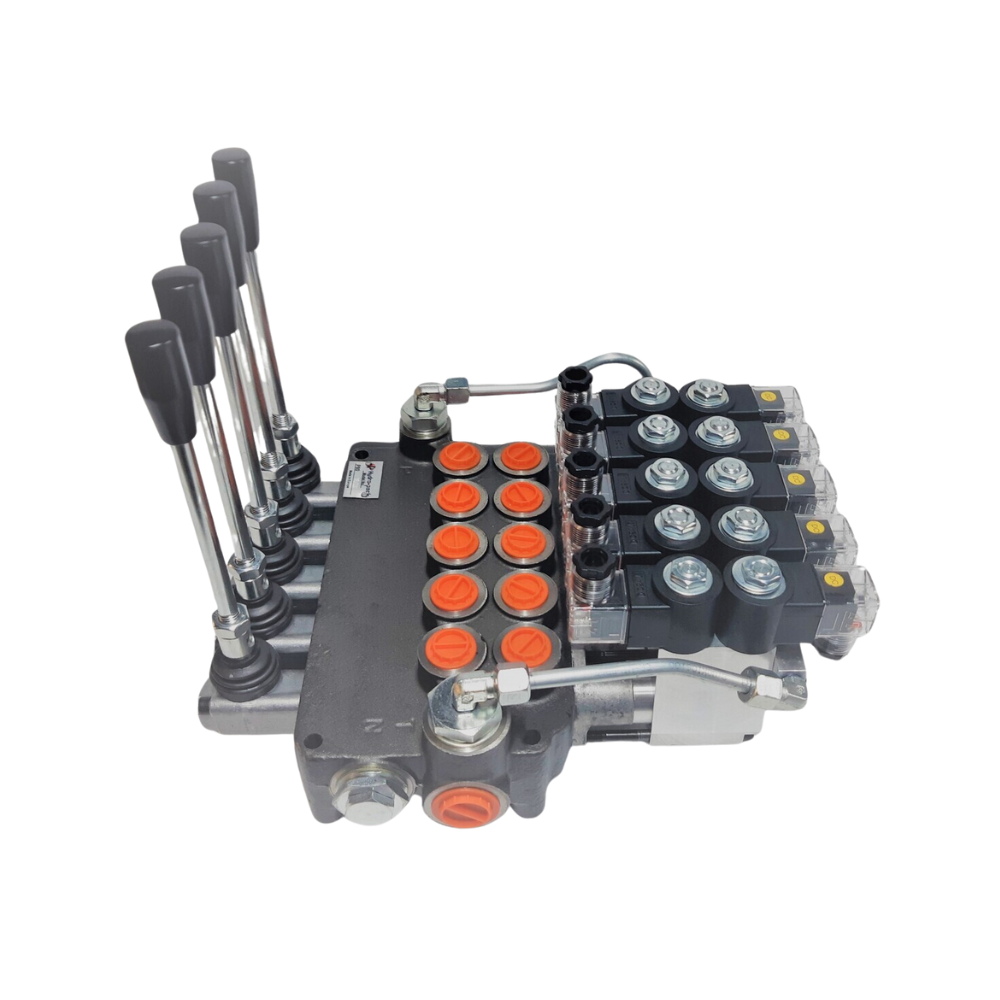

This 5 spool Monoblock valve comes with all of the spools fitted with Electro-Hydraulic Solenoid valves.

Suitable for Industrial process control applications, as well as for mobile equipment such as tow trucks and Tilt Trays Super Tilt N Slide Trailers, Cherry pickers and Cranes Trucks etc.

Safe Low Voltage 12 and 24 V DC Control No compressed Air Required!!

80 Litre per Minute 5 Spool Hydraulic Valve with 10 Electro Hydraulic Actuators

Various control options available switches and push buttons with relays, pendant controllers with push buttons and Radio Remote Control for transmission of signals up to 150 Metres

Optional Radio Remote Controls System with 10 Buttons From $995.

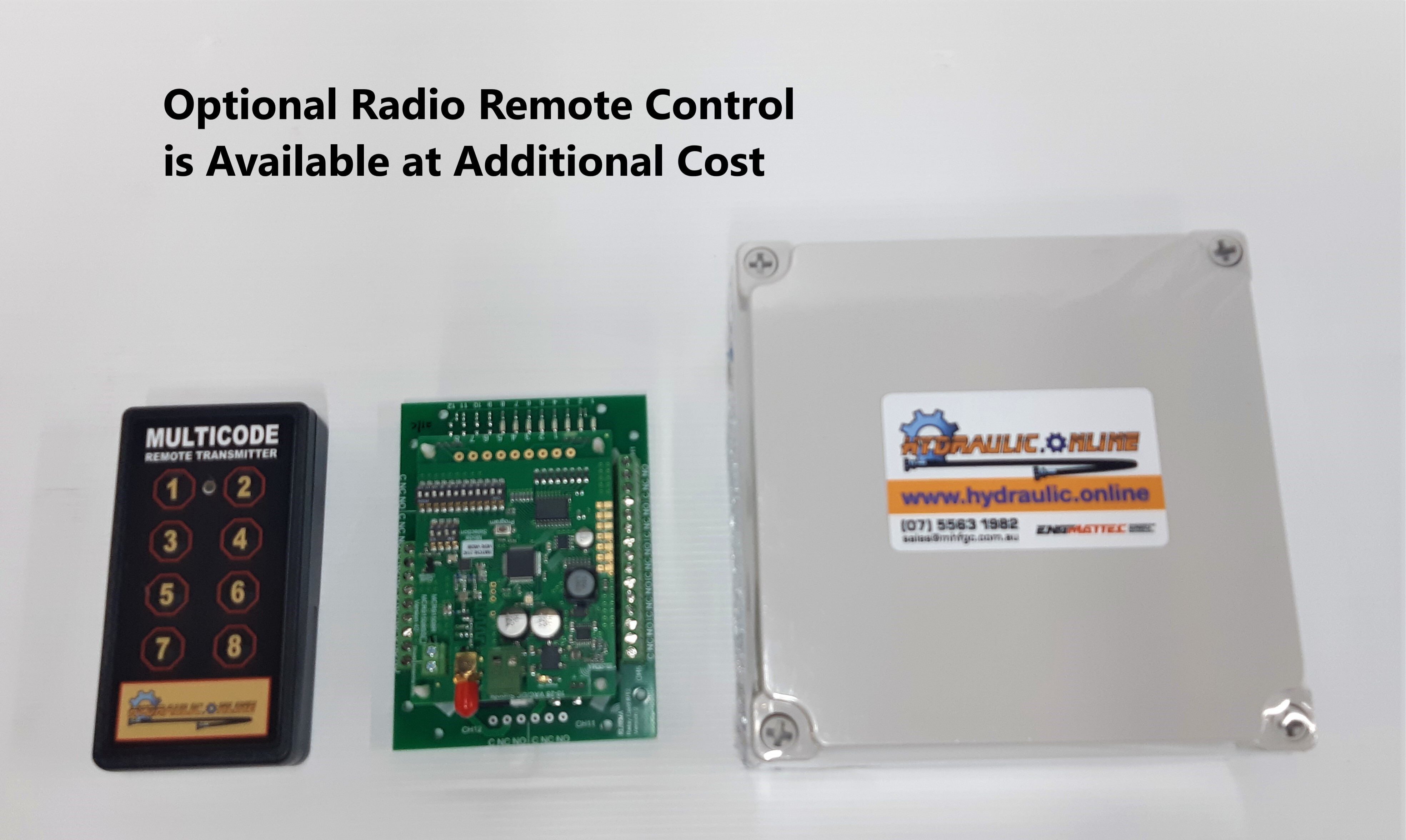

Optional Radio Remote Control is Available at Additional Cost

Call us on 07 5563 1982 for a Free no-obligation consultation.

Made in Europe this monoblock valve is specifically designed for remote control applications.

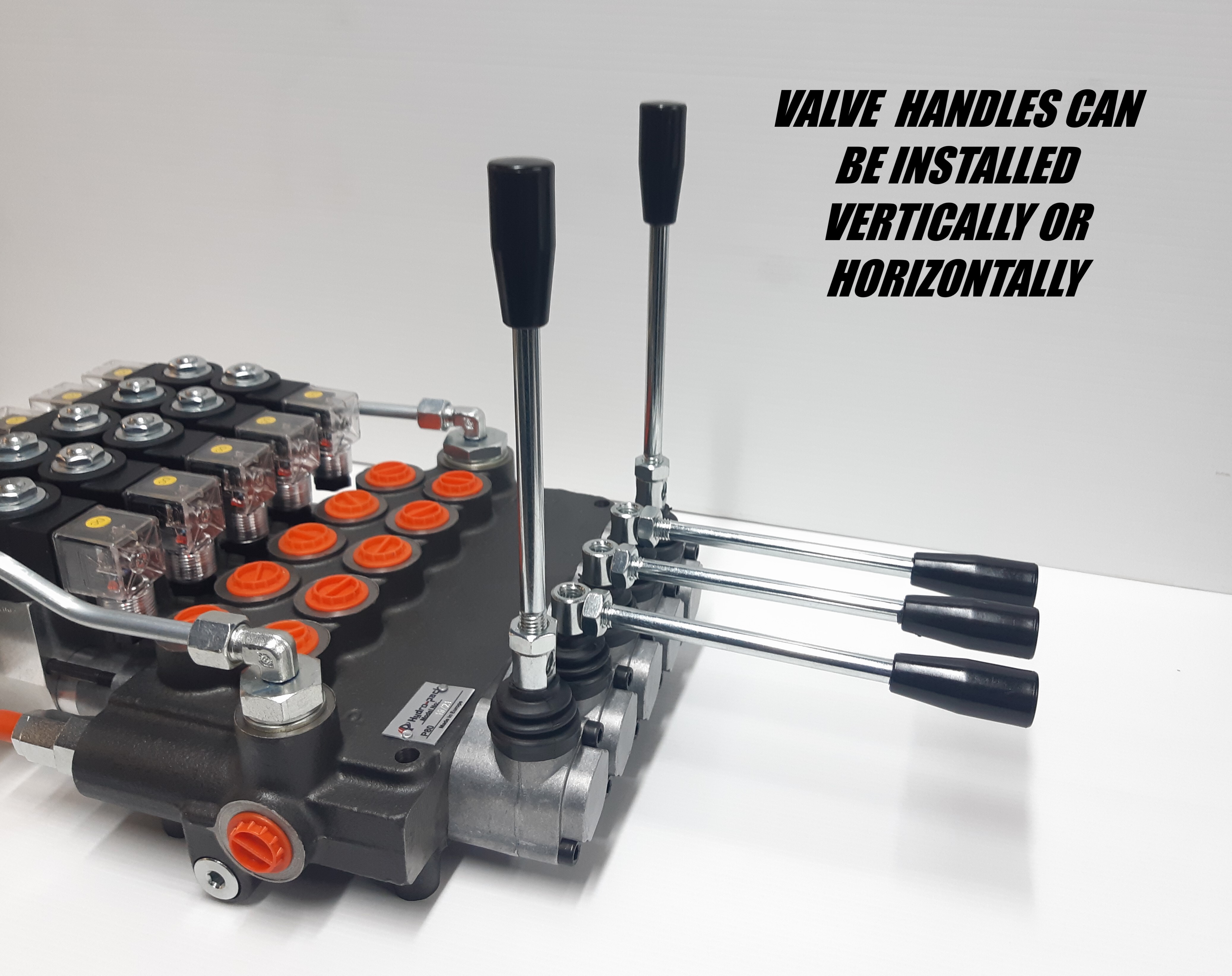

The valve also comes standard with 5 manual override hand actuation levers. . # Please note, for all our monoblock valves, levers can be at either vertical or horizontal fitting. ALSO, the lever boxes, are able to be rotated 180° so that you can further orientate the levers.

Electro-Hydraulic Control valves eliminate the need for a separate compressed air actuation system.

You Do Not Require the following, Clean dry air, an Air pump, Air tank, Air driers, Pressure regulators, and lubricators to remove moisture, rust, dust, and lubricate the air.

Not to mention and light flexible air tubing that is susceptible to deterioration and damage.

This in turn has the following advantages

Greatly simplifies and tidy's up the hydraulic system's architecture,
Speeds up installation and set up and
Improves reliability and consequently safety.

Principals of operation.

Electro-hydraulic Valves use Solenoid actuated Cartridge Valves to

divert a small amount of system Oil flow from the actual hydraulic circuit to
move the flow control spool and
change the direction of the flow of hydraulic oil

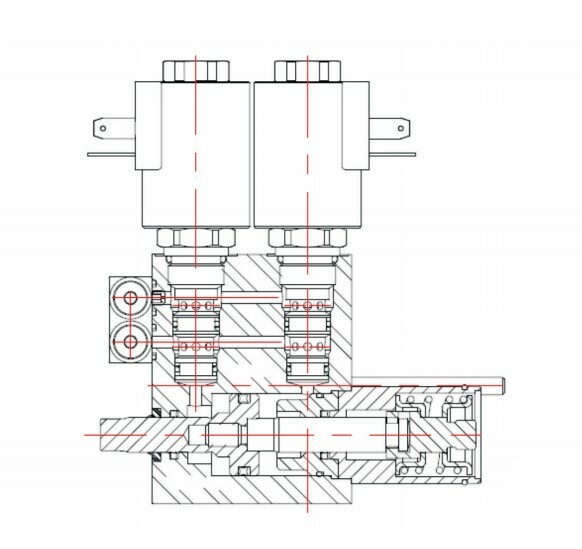

Sectional View of Electro Hydraulic Actuators

These valves are generally used in Remote Control Applications, such as those found in

Automotive Tilt Trays,
Mobile Plant
Wood Chippers
Stump Grinders and
Agricultural equipment.

This model has many more useful applications and can be used to operate up to 3 separate functions that require semi automatic actuation of Valves, Cylinders or Rotating motors.

MANUFACTURED IN EUROPE THIS QUALITY 5 SPOOL VALVE IS RATED TO FLOW up to 80 LITERS / MINUTE (20 Gallons / Minute) at pressures up to 250 bar (3600 psi).

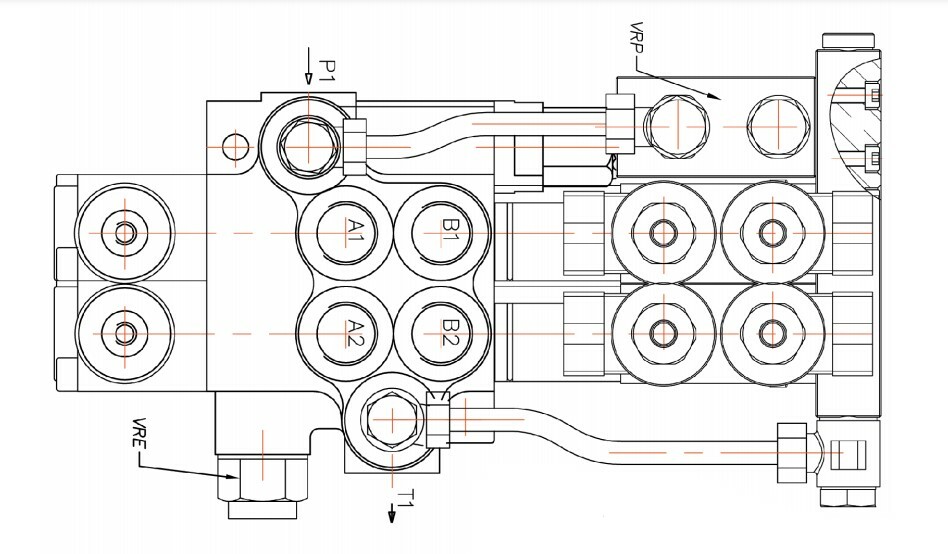

Plan Drawing of P80 Hydraulic Valve indicating location on Inlet and Outlet Ports and Electro Hydraulic Valve

IDEAL FOR TILT TRAYS, TRUCKS AND ALL MOBILE PLANT, Cranes, Skip Bin Trucks, Front end Loaders, Backhoes and any hydraulic project REQUIRING 3 FUNCTIONS WITH REMOTE CONTROL CAPABILITY, READY FOR FITTING.

This unit can replace most small to large tilt tray trucks existing spool valves or any other mobile plant equipment that requires remote control capabilities.

Simply bolt on, either re-attach your existing hoses, or worst case buy adaptors (we can supply cheaply) to make your hose threads compatible.

Specifications

Construction = Monoblock

Material of Construction = Steel

No of Spools = 5 Spools all with Manual override lever

No of Electro-Hydraulic Actuated Spools = (5) Three.

Material of Construction = Case Hardened Steel

O-rings made of NBR (Buna-N®)

Max Flow Rate = 80 liters/min (20 Gallons per Minute)

Max Working Pressure = 250 Bar (3600 PSI)

A and B Ports Pressure Rated to 300 bar (4400 psi)

Spool Type = Cylinder

Coil voltage = 24 Volt DC +/- 10% (12 Volt DC also available)

Coil power rating = 24 watts

Coil duty cycle = 100%

Built-in Relief Valve = Adjustable (factory set at 140 bar 2100 PSI) # If loads will not lift, please undo lock nut on relief, & with an allen key turn clockwise 1/2 a turn at a time whilst testing operation for more power. Stop when load lifts.

Ports Sizes

Pressure Port 1/2" BSPP

Cylinder Ports 1/2" BSPP

Tank Port 3/4" BSPP

Power beyond port 1/2" BSPP

Operating temperature range: -20 °C to + 80°C

Dimensions = L x W x H = 200 x 200 x 60 mm

Weight 12kg

This a High-Quality Valve and has many outstanding features, including:

Built-in adjustable relief valve

High performance,

High efficiency,

Compact construction.

Low-pressure drop.

Long service life.

Choice of various ports and circuit valves.

High accuracy spool is hardened for long term accuracy.

Manual Override Handles for fine control and emergency operation.

Please note* These 80 LPM valves require a separate "Power Beyond" sleeve to operate another valve downstream.

Installation; As per photos, there is One side entry pressure port "P1" , and one side exit Tank return port "T1 ",

Top entry Pressure and Tank ports are available for use.... with modifications to the Eletro Hydraulic Supply and Return piping.

There is also a "N" (VRE) port. This "N" (VRE) port is for the: "Power Beyond" function.

This allows another valve to run pressure from this "N" (VRE) port downstream if necessary.

(Power beyond requirements must be less than or equal to 80 litres/min flow)

A & B ports will connect to your cylinders, motors or other functions.
