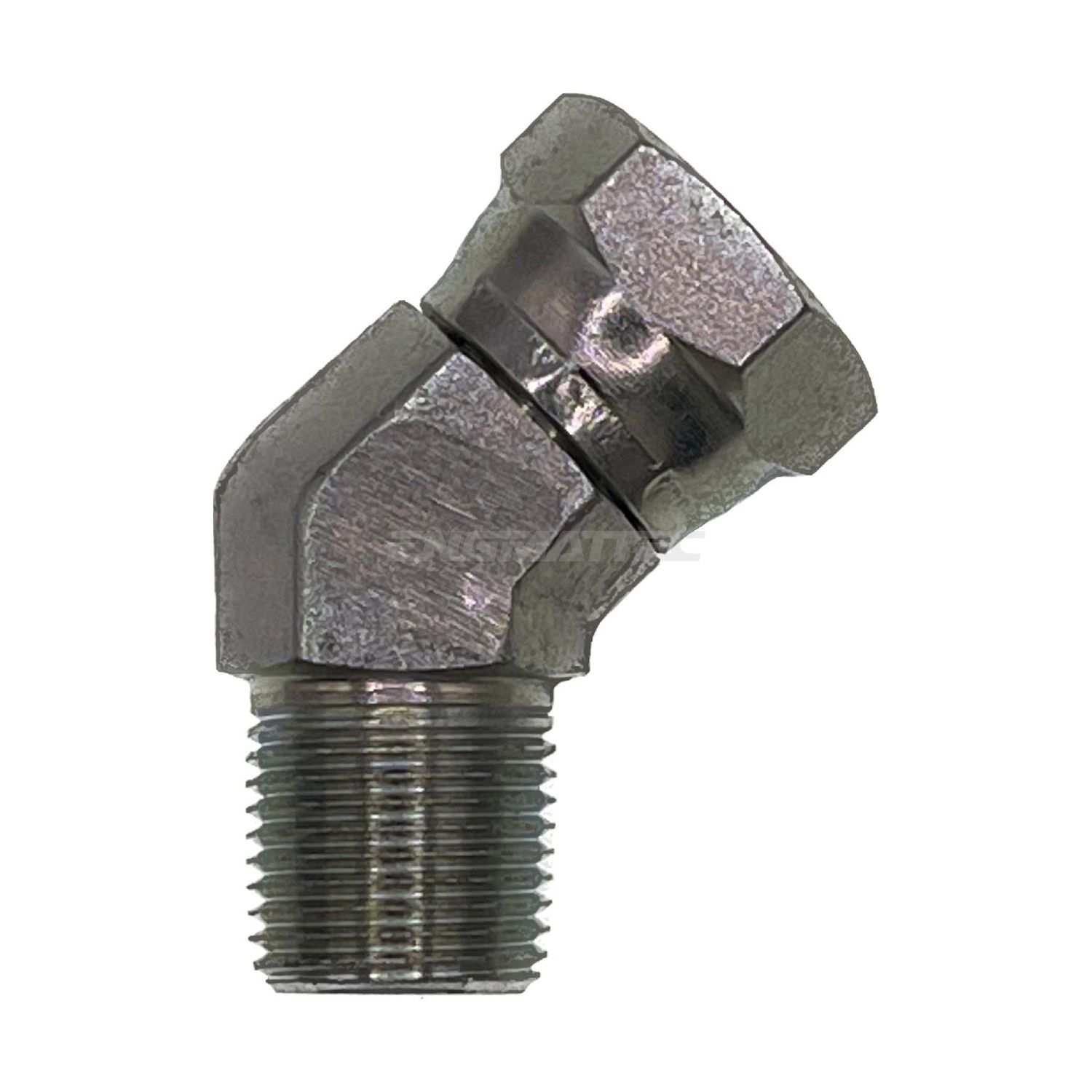

NPSM Swivel Female x NPT Tapered Male 45° Compact Elbow

Straight-thread swivel female one end, tapered NPT male the other. Turns a line 45° and still lets you break the joint later without unwinding the whole run – common on gauges, filter heads and return lines.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• NPSM Swivel Female – ANSI B1.20.1 straight pipe thread with a 60° internal cone. It seals on the cone seat rather than the thread, so it must not be taped.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. It seals on thread interference, so tape or sealant is a must.

How to Choose

• The NPSM female is straight-threaded with a 60° internal cone. It is not an NPT female, even though the thread pitch matches.
• Do not tape the NPSM end. It seals on the cone, and tape holds the cone off its seat.
• The NPT male end does need tape or sealant, so the two ends are treated differently.

Where You’ll Find It

• NPSM Swivel Female – Gauges, filter heads, sensors and return lines where the joint has to come apart regularly.
• NPT Tapered Male – American-built gearboxes, pumps, compressors and older industrial pipework.

Cross-Reference

• NPSM Swivel Female – ANSI B1.20.1 straight pipe thread with a 60° internal seat. Written NPSM, sometimes called an NPT swivel.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. The dryseal variant is written NPTF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

This is the fitting most often taped on the wrong end. If it weeps at the swivel, strip the tape out, inspect the cone for a witness mark, and re-seat it dry. Tape at a swivel joint never fixes the leak because it is usually the cause of it.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	H	S1	Material	Finish
NSF-NTM-45C-0202	14.3mm	11.1mm	Mild steel	Plated finish
NSF-NTM-45C-0404	17.5mm	14.3mm	Mild steel	Plated finish
NSF-NTM-45C-0606	22.2mm	19.1mm	Mild steel	Plated finish
NSF-NTM-45C-0808	25.4mm	22.2mm	Mild steel	Plated finish
NSF-NTM-45C-1212	31.8mm	27.0mm	Mild steel	Plated finish
NSF-NTM-45C-2424	54.0mm	47.6mm	Mild steel	Plated finish

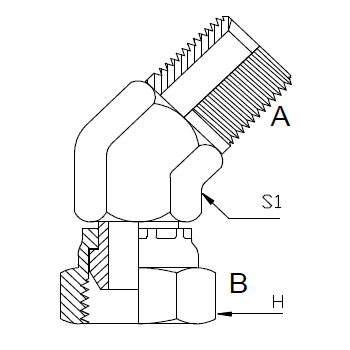

Key: H centre to face, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
