Medium Pressure Spin-On Filters 35 Bar - 1" BSPP (CSD060 / FSD060)

When a standard spin-on (max ~8 bar) is not enough: the CSD060 series is rated to 35 bar working pressure - motor return lines with back-pressure, gearbox filtration loops, offline circuits and pilot supply. The FSD060 head has a 50psi bypass and a BUILT-IN optical clogging indicator.

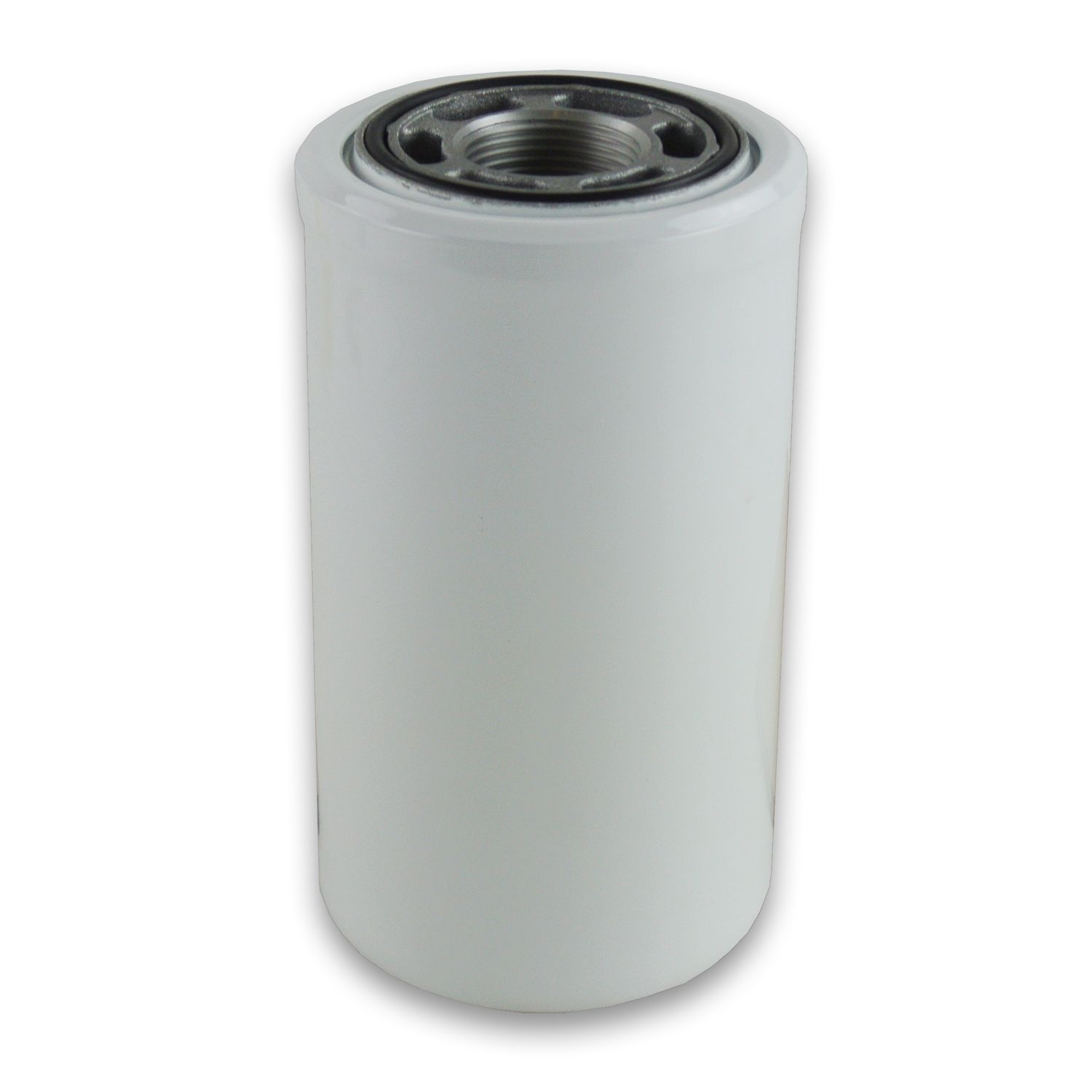

Three ways to buy: element only (1-3/8"-12 UNO can thread), head only, or the complete filter (head + element).

The picture changes as you pick - it always shows exactly what arrives in the box. All prices include GST.

Sizes & Part Numbers - every combination

What is in each kit: KIT-FSD-P10 = FSD0602AGV2D head + CSD06000P10A element | KIT-FSD-P25 = FSD0602AGV2D + CSD06000P25A | KIT-FSD-A06 = FSD0602AGV2D + CSD06000A06A. Assembled by us before dispatch.

How to Choose

• 10µm nominal is the standard pick; 25µm for coarse duty; 6µm absolute for sensitive circuits.
• Line pressure over 35 bar? You need a true pressure filter - see our FHP/FMM range below.

Technicians Advice

The built-in indicator pops at 43psi differential - when it shows, the 50psi bypass is about to open, so change the can promptly. Same spin-on rules apply: oil the seal, hand-tight plus 3/4 turn, first change at 50 hours on a fresh system then every 500. Check the can is the CSD (35 bar) series at every change - a standard 8 bar can on this head will balloon.

Official Datasheets

📄 CSD/FSD Medium Pressure Spec Sheet

Complete Your Filtration Setup

⭐ Clogging Gauges & Indicators⚙ Standard 3/4" Spin-Ons⚙ Standard 1-1/4" Spin-Ons⚙ True Pressure Filters

Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.

Still not sure? Call us on 1300 146 737 or email sales@mhfgc.com.au with a photo of your setup and your pump flow - we will pick the right part for you.
