M+S MR Series Low-Speed High-Torque Hydraulic Motor | Roll-Gerotor Design

Professional Reliability for Heavy-Duty Agricultural & Industrial Drives
The M+S MR Series is a high-performance spool valve hydraulic motor utilising a precision roll-gerotor gear set.

This design incorporates rollers in the gear ring, significantly reducing friction, enhancing starting torque, and extending the operational life of the motor even under continuous high-pressure conditions.

All MR motors are mangano-phosphatised as standard to provide superior protection against corrosion and wear in harsh environments.

Technical Specifications (Series Range):

• Displacement: 51.5 to 397 cm³/rev (3.14 to 24.4 in³/rev).
• Maximum Speed: Up to 970 RPM (intermittent).
• Maximum Torque: Continuous up to 610 Nm (450 ft-lb); Intermittent up to 690 Nm (509 ft-lb).
• Maximum Output: Up to 15 kW (20.1 HP).
• Maximum Flow Rate: 75 Lt/min (20 GPM).

Click here to Down load Full Specifications of the MR Hydraulic Motor range

Key Features:

• Advanced Shaft Seals: Available with high-pressure shaft seals (U-version) for applications with high back-pressure.
• Needle Bearing Option: Available with needle bearings (N-version) for increased radial load capacity.
• Versatile Porting: Standard side ports or optional rear ports to suit tight installation envelopes.
• Shaft Options: Comprehensive range including 25mm Straight, 1" Straight, SAE 6B Splined, and Tapered versions.

Interchangeable & Equivalent to:

The MR series is a direct, professional-grade alternative to the following industry models:

• Danfoss: OMR Series
• White: WR (255) Series
• Hydnet: BMR Series
• Bosch Rexroth: MGR / GMR Series
• Brevini: BRE Series

Technician’s Advice:

"The MR series is the 'Step-Up' motor for those needing better efficiency than a standard gerotor.
The internal rollers make it much smoother at very low speeds.
For the best performance, ensure your system filtration is maintained at ISO code 18/16/13 or better.
Before initial start-up, always fill the motor case with clean hydraulic fluid and run it without load for 10 to 15 minutes.
This 'pre-lubrication' step is vital to protect the roll-gerotor set from scoring.
If you are experiencing high return line pressure, always use the case drain port to prevent shaft seal failure."

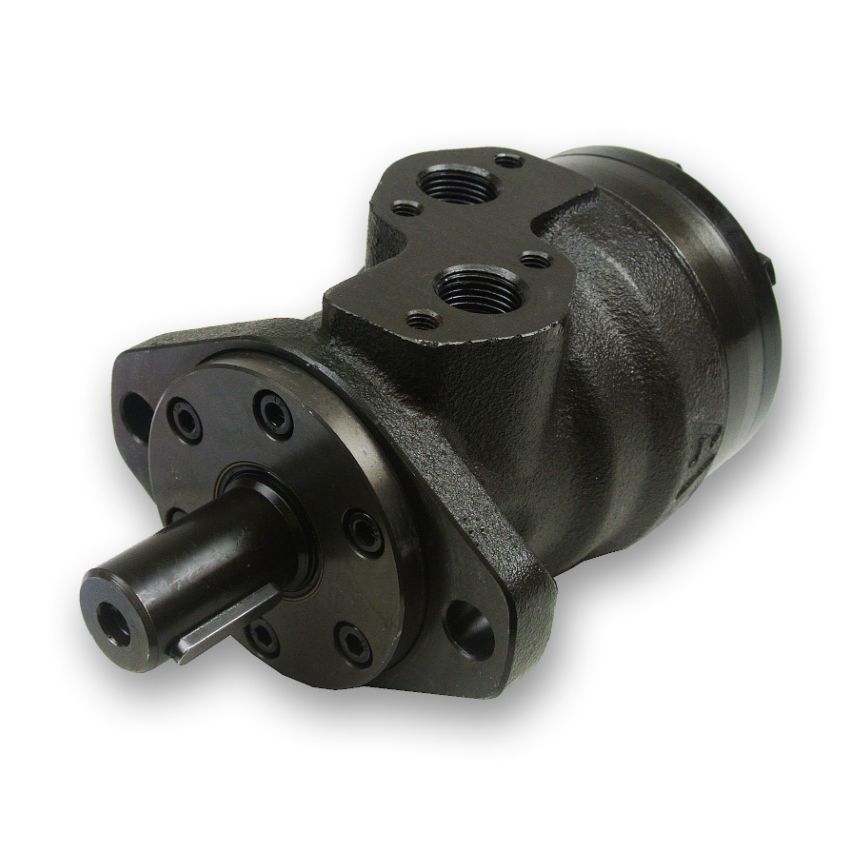

MR Series Geroler Motor manufactured in Europe by M+S Hydraulic

MR series high torque geroller orbital motors. Available in 2 bolt SAE A flange, side ports with various shaft options.
