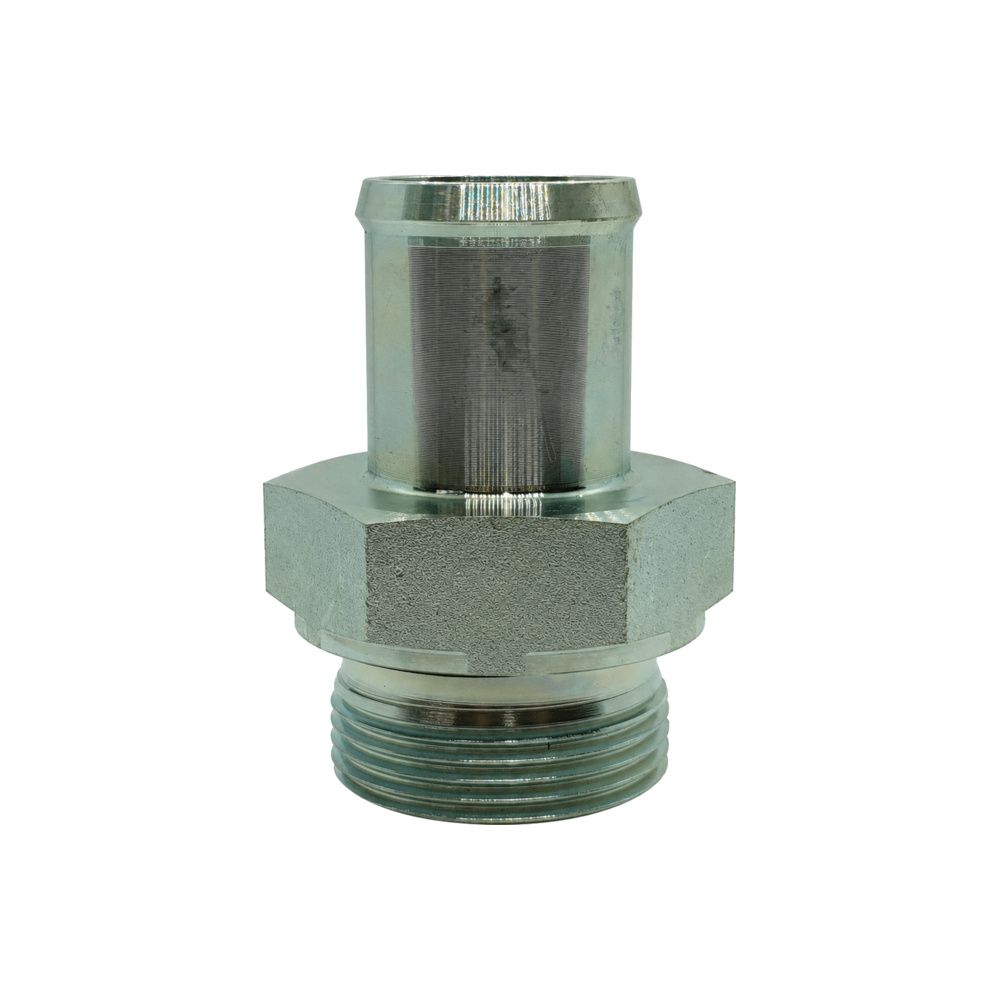

Low-Pressure Hose Tail - BSPP Male Fixed - Straight - Crimp-On
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/Two piece Crimp-on Hosetails in Straight, 45° & 90°/Low Pressure Hose Tails
Product Details
Brand: Hydraulic.Online
Weight: 0.11 kg
Low-Pressure Hose Tail - BSPP Male Fixed - Straight - Crimp-On
Low-pressure crimp-on hose tail: the BSPP Male Fixed end Parallel male, seals with a bonded washer against the port face. For return lines, drain lines and low-pressure circuits on Australian machinery with parallel ports. These suit low-pressure hose only – never fit them to a pressure line.
⬇ Thread Identification Chart (PDF)
Ferrule: low-pressure tails use their own matching ferrule – call 1300 146 737 and we will pair the right one to your hose.
Ways to buy:
- Off the shelf – pick your size below.
- Need a size you can’t see? Call us – if it exists, we can get it.
Pick your size
| Variation | SKU | Price inc GST |
| Low-Pressure Hose Tail - (12) 3/4" Hose x (12) 3/4" BSPP Male Fixed - Straight | HTL-BPM-1212 | $15.20 |
| Low-Pressure Hose Tail - (16) 1" Hose x (12) 3/4" BSPP Male Fixed - Straight | HTL-BPM-1612 | $22.50 |
| Low-Pressure Hose Tail - (16) 1" Hose x (16) 1" BSPP Male Fixed - Straight | HTL-BPM-1616 | $24.20 |
| Low-Pressure Hose Tail - (20) 1-1/4" Hose x (12) 3/4" BSPP Male Fixed - Straight | HTL-BPM-2012 | $37.20 |
| Low-Pressure Hose Tail - (20) 1-1/4" Hose x (16) 1" BSPP Male Fixed - Straight | HTL-BPM-2016 | $19.60 |
| Low-Pressure Hose Tail - (20) 1-1/4" Hose x (20) 1-1/4" BSPP Male Fixed - Straight | HTL-BPM-2020 | $28.50 |
| Low-Pressure Hose Tail - (20) 1-1/4" Hose x (24) 1-1/2" BSPP Male Fixed - Straight | HTL-BPM-2024 | $81.10 |
| Low-Pressure Hose Tail - (24) 1-1/2" Hose x (16) 1" BSPP Male Fixed - Straight | HTL-BPM-2416 | $30.90 |
| Low-Pressure Hose Tail - (24) 1-1/2" Hose x (20) 1-1/4" BSPP Male Fixed - Straight | HTL-BPM-2420 | $30.90 |
| Low-Pressure Hose Tail - (24) 1-1/2" Hose x (24) 1-1/2" BSPP Male Fixed - Straight | HTL-BPM-2424 | $33.40 |
| Low-Pressure Hose Tail - (32) 2" Hose x (24) 1-1/2" BSPP Male Fixed - Straight | HTL-BPM-3224 | $53.90 |
| Low-Pressure Hose Tail - (32) 2" Hose x (32) 2" BSPP Male Fixed - Straight | HTL-BPM-3232 | $52.30 |
Specifications
| Parameter | Value |
| Type | Low-pressure crimp-on hose tail |
| End form | BSPP Male Fixed |
| Configuration | Straight |
| Material | Zinc-plated carbon steel |
| Suits hose | Low-pressure return and suction hose |
| Brand | Engmattec |
How to choose
- First number is the hose bore in dash sixteenths – (08) = 12.7 mm (1/2") hose.
- Second is the thread end – check it with the Thread Identification Chart if unsure.
- Low pressure only – for pressure lines use our two-piece braided hose tails.
Technicians Advice
Always fit a new bonded washer - a reused washer is the number one cause of weeping on BSPP males.
Buying in bulk or fitting out a fleet? Call us for trade pricing.
Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
