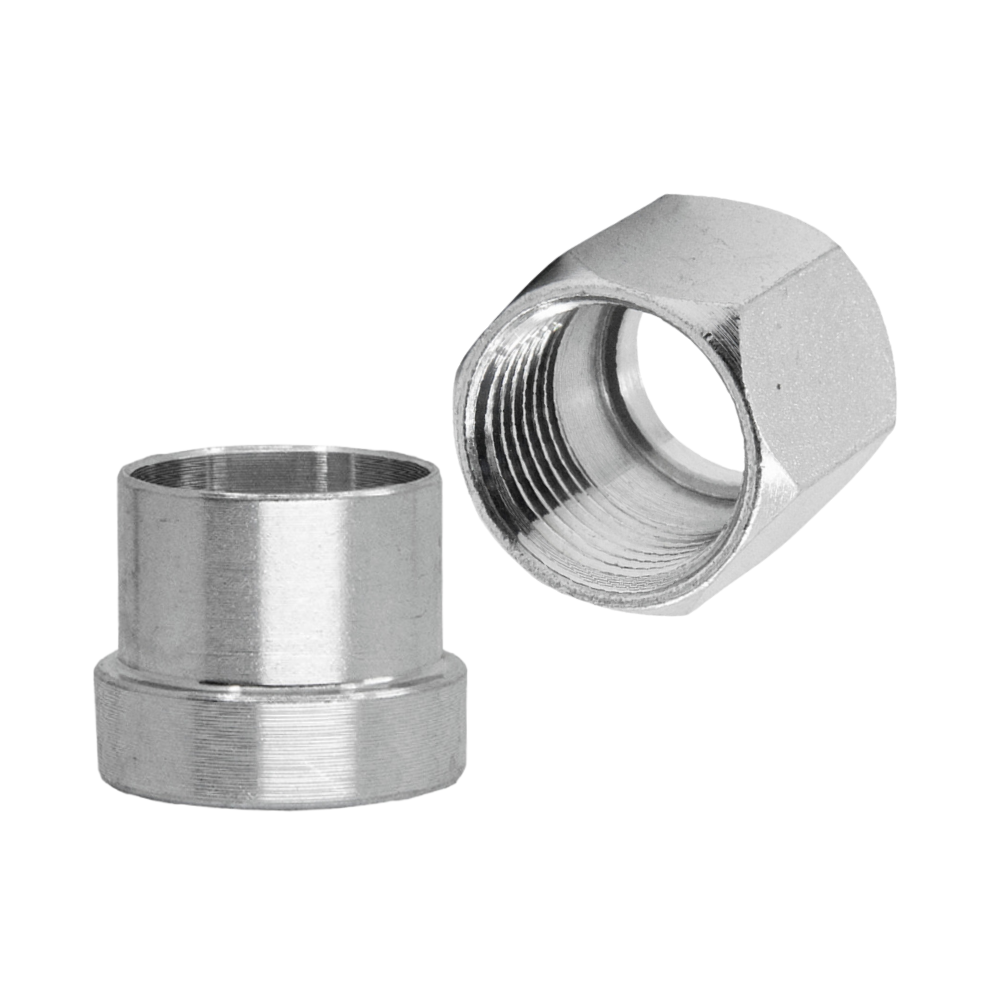

JIC Tube Nuts and Sleeves for Flared Hydraulic Tube

Replacement JIC tube nuts and sleeves for 37° flared tube assemblies. The two-piece set that clamps a flared tube end onto a JIC cone.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.

How to Choose

• This is a spare part, sold on its own so a damaged one does not mean replacing the whole assembly.

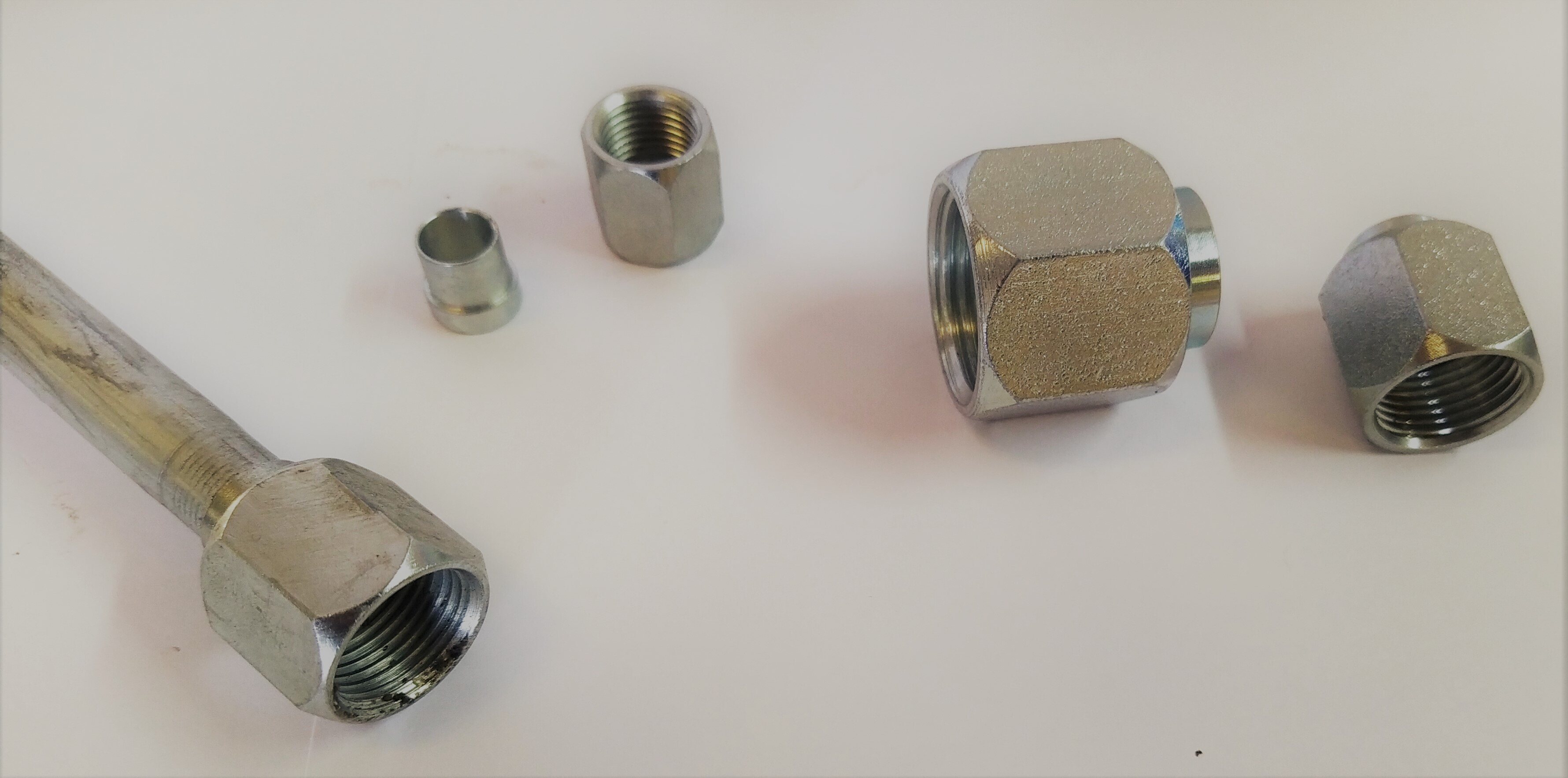

• Nut and sleeve work as a pair. The sleeve backs up the flare and the nut supplies the load.
• Sized by tube outside diameter. Measure the tube rather than going by the fitting.
• The flare on the tube does the sealing, not the nut.

Technicians Advice

If a flared joint weeps, look at the flare itself before you blame the nut. A cracked or off-centre flare cannot be fixed with torque, and re-flaring the tube properly is the only cure.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Downloads

📄 Thread Identification Chart (PDF)
