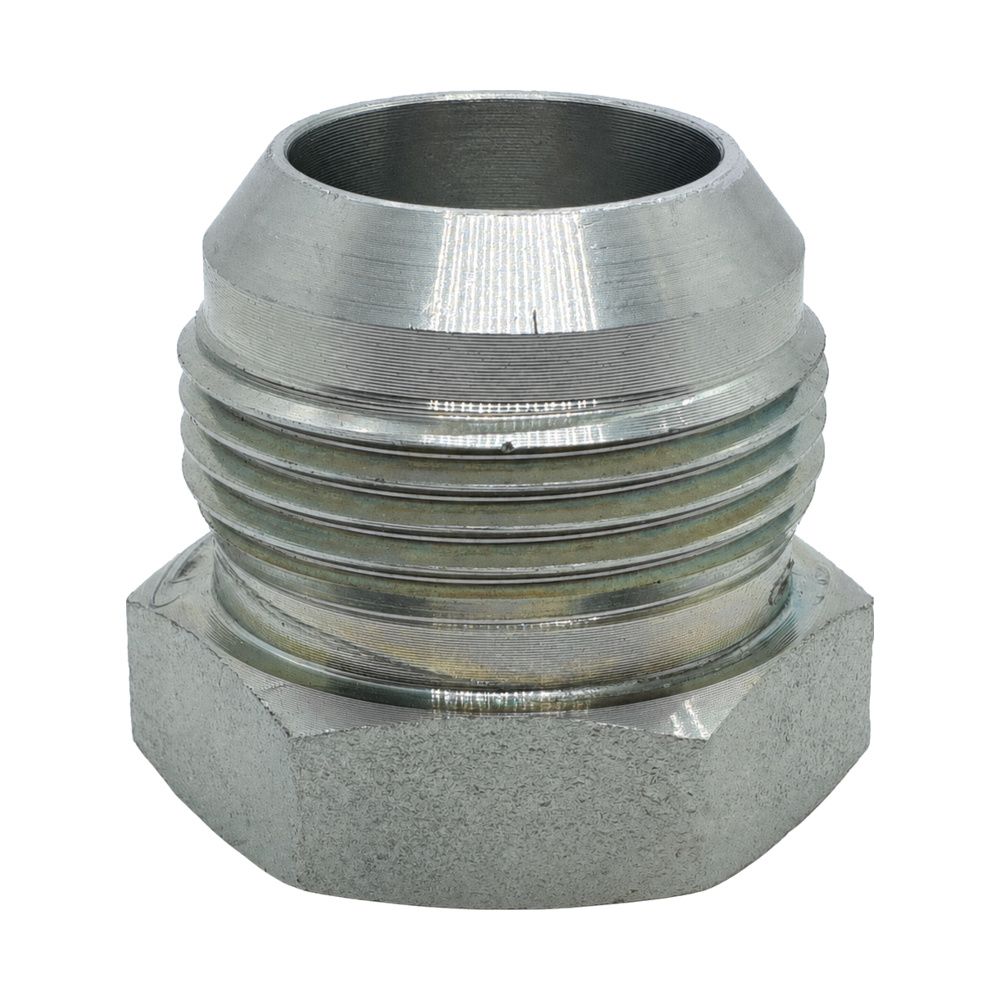

JIC 37° Male Blanking Plug

A JIC 37° male plug for blanking off a JIC swivel female or hose end. One of the most-used items in a repair kit.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• Seals metal to metal on the 37° cone. No tape, no sealant, no O-ring.
• Do not confuse it with a 45° SAE plug. The two look alike and the wrong angle frets the seat.

Technicians Advice

Keep a few of these in the truck. Capping and plugging a line the moment it comes apart keeps dirt out and oil in, and it is the single cheapest thing you can do to stop a repair turning into a contamination problem.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	L	H1	Material	Finish
JIM-05	17.8mm	11.1mm	Mild steel	Plated finish
JIM-06	19mm	11.1mm	Mild steel	Plated finish
JIM-07	20mm	12.7mm	Mild steel	Plated finish
JIM-08	20mm	14.3mm	Mild steel	Plated finish
JIM-09	21mm	15.9mm	Mild steel	Plated finish
JIM-12	24mm	20.6mm	Mild steel	Plated finish
JIM-14	28mm	23.8mm	Mild steel	Plated finish
JIM-17	33mm	28.6mm	Mild steel	Plated finish
JIM-19	33mm	31.8mm	Mild steel	Plated finish
JIM-21	34mm	34.9mm	Mild steel	Plated finish
JIM-26	37mm	42.9mm	Mild steel	Plated finish
JIM-30	42mm	51.8mm	Mild steel	Plated finish
JIM-40	52mm	66.7mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
