In-Tank Immersed Return Filter 1/2" to 1-1/4" BSPP Low Profile – Housings & Elements (FIF Series)

Store/Hydraulic Oil Filters for Suction, Return, and Pressure Applications

SKU FIF-04B-P10-R4

AU$100.58

Part

Please choose

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

In-Tank Immersed Return Filter 1/2" to 1-1/4" BSPP Low Profile – Housings & Elements (FIF Series)

Store/Hydraulic Oil Filters for Suction, Return, and Pressure Applications

Product Details

Tank Top Return Filters - FIF Series

Low-profile housings that sit almost fully INSIDE the tank - perfect where lid clearance is tight. 1/2" to 1-1/4" BSPP, 25-100 L/min, visual clogging indicator on the head. Returning oil is filtered before it re-enters the reservoir, and the element is serviced from above without draining a drop.

Two ways to buy:

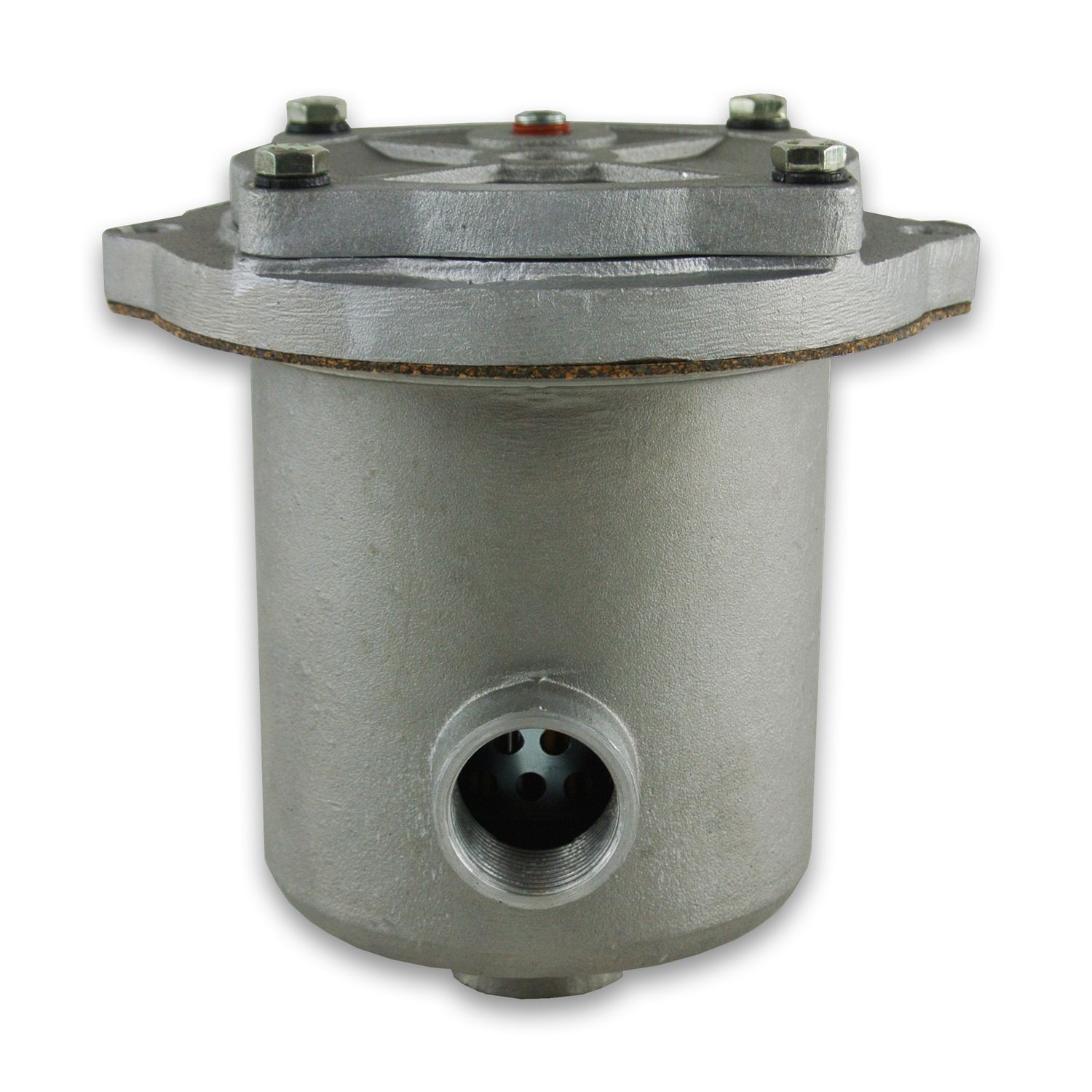

Complete Housing - ships with a 10 micron nominal element and 25psi bypass. Bolt in, plumb the return, done.
Replacement Element - pick the row matching YOUR housing size, in 10µm nominal (standard), 25µm nominal (older/high-flow) or 10µm absolute (sensitive valve packages).

The picture changes as you pick - it always shows exactly what arrives in the box. All prices include GST.

Sizes & Part Numbers - every combination

Part	SKU	Price inc GST
Complete Housing 1/2" BSPP – 25 LPM (10µm)	FIF-04B-P10-R4	AU$100.58
Complete Housing 3/4" BSPP – 40 LPM (10µm)	FIF-06B-P10-R4	AU$137.81
Complete Housing 1" BSPP – 50 LPM (10µm)	FIF-08B-P10-R4	AU$163.15
Complete Housing 1-1/4" BSPP – 100 LPM (10µm)	FIF-10B-P10-R4	AU$360.36
Element – suits 1/2" housing – 10µm nominal	FIE-04-P10	AU$20.59
Element – suits 1/2" housing – 25µm nominal	FIE-04-P25	AU$20.59
Element – suits 1/2" housing – 10µm absolute	FIE-04-A10	AU$39.60
Element – suits 3/4" housing – 10µm nominal	FIE-06-P10	AU$27.72
Element – suits 3/4" housing – 25µm nominal	FIE-06-P25	AU$27.72
Element – suits 3/4" housing – 10µm absolute	FIE-06-A10	AU$45.94
Element – suits 1" housing – 10µm nominal	FIE-08-P10	AU$31.68
Element – suits 1" housing – 25µm nominal	FIE-08-P25	AU$31.68
Element – suits 1" housing – 10µm absolute	FIE-08-A10	AU$60.19
Element – suits 1-1/4" housing – 10µm nominal	FIE-10-P10	AU$67.32
Element – suits 1-1/4" housing – 25µm nominal	FIE-10-P25	AU$67.32
Element – suits 1-1/4" housing – 10µm absolute	FIE-10-A10	AU$151.27

How to Choose

Housing: match the port to your return line and cover your full return flow (round UP - returns spike when cylinders retract).
Element: the "suits" column is the one that matters - measure your housing port or check your old element diameter/height against the spec sheet.

Technicians Advice

Change the element at 50 hours on a new system, then every 500 hours or when the clogging indicator reads red at operating temperature. Check the lid O-ring every change - a hard O-ring lets unfiltered oil sneak past. Keep the bypass spring with the housing, not the element, when swapping brands.

Official Datasheets

📄 FIF Tank Top Return Filter Spec Sheet

Complete Your Filtration Setup

⭐ Return Clogging Gauges ⚙ TIFP Tank Tops ⚙ FIF Immersed ⚙ CFR Dual Entry ⚙ Spin-On Return Assemblies

Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.

Still not sure? Call us on 1300 146 737 or email sales@mhfgc.com.au with a photo of your setup and your pump flow - we will pick the right part for you.
