Inline sequence valve

Sequence valve is used to feed 2 cylinders in sequence: it provides flow to the secondary circuit when a primary circuit function has reached the pressure setting. Reverse flow is free. It's ideal for circuits with low pressure on the secondary cylinder as the pressures are added.

These are quality items made in Italy.
Pressure Rating = 5-300bar/4500psi
Size = 1/4" 3/8", 1/2", 3/4", & 1" BSPP Bore

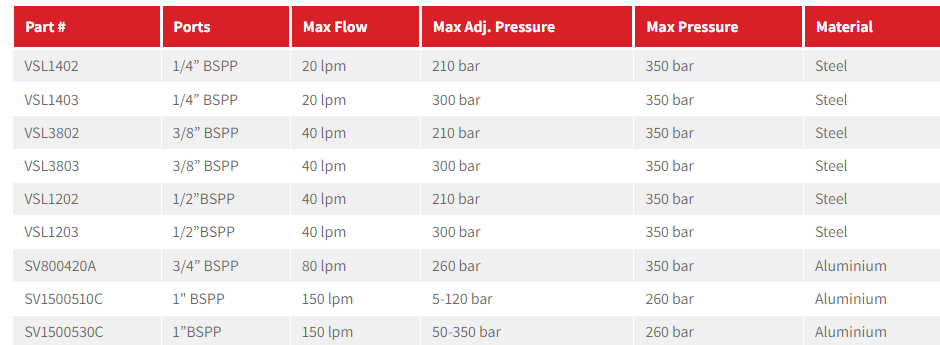

Flows and available pressure ranges ;

Need another size or type? just call us on 07 5563 1982
