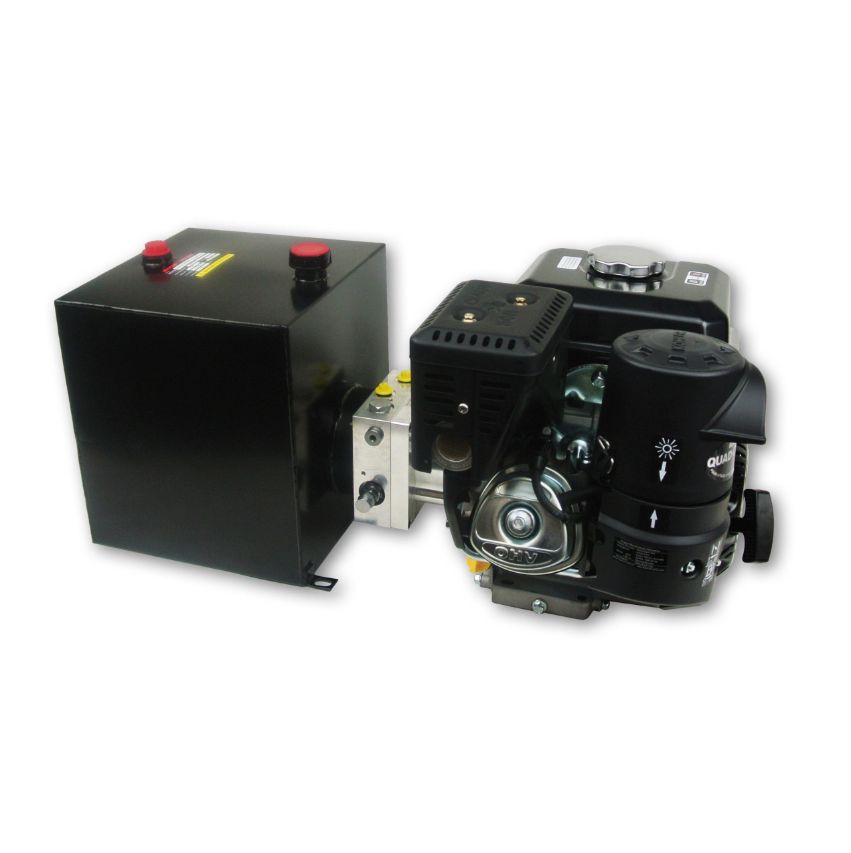

7 hp 8 LPM Petrol powered Hydraulic Power Unit with P and T ports

Petrol Hydraulic Power Pack 8.0 Lpm P&T or Double Acting

Store/Power Packs and Hydraulic Power Units 12 & 24 VDC, 240 & 415 VAC, Petrol or Diesel

SKU 60PE010H278B

AU$2,997.90

On Sale

was ~~AU$4,326.00~~ Save 31%

Oil Flow Type

Please choose

Petrol-powered 7hp petrol HPU — P&T or double-acting Cetop 3 | 8 LPM | 3,000 PSI | Pull start | 18L tank

In stock: 5 available

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Petrol Hydraulic Power Pack 8.0 Lpm P&T or Double Acting

Store/Power Packs and Hydraulic Power Units 12 & 24 VDC, 240 & 415 VAC, Petrol or Diesel

Product Details

Brand: Mocen

No Power on Site? No Problem.

This compact 7hp petrol hydraulic power pack runs wherever you need hydraulic power — no mains supply, no generator, no compromise. Pull it out of the ute tray, connect your hose, pull the cord. Ready to work in under a minute. Available in two configurations: P&T ports only for use with your own directional valve, or with a factory-fitted 12V double-acting Cetop 3 solenoid valve for pendant-controlled operation.

Who Uses This Unit?

👷 Tradies & Contractors

Post drivers, rock breakers, compactors, trench shoring — anywhere on site that needs hydraulic power without a mains connection. Compact enough for ute tray or trailer mount.

🚗 Farmers & Rural Operators

Log splitters, post hole diggers, fence post drivers, workshop presses. Light enough to move around the property, powerful enough to do the job all day.

🏭 Hire Fleets & Light Industrial

Reliable pull-start petrol units are a hire fleet staple. Simple to operate, easy to service, and built to run continuously under commercial conditions.

Choose Your Configuration

Option 1 — P&T Ports Only

Part# 60PE010H278B — Connect your own directional valve

Pressure and tank ports only — no valve fitted. Connect your own lever-operated monoblock or sectional directional control valve for manual operation. The lower-cost base configuration, ideal when you already have a valve or prefer manual lever control.

Best for:

Log splitters
Tip trailers & tipping bins
Workshop presses
Applications with existing manual valve

🔗 You'll Also Need

› Monoblock Directional Control Valve — lever-operated, suits P&T port connection

› JIC/UNO Adaptors JIM-UNM-90C-0909 — required to connect JIC hose ends to 9/16" UNO ports

Option 2 — Double Acting Cetop 3

Part# 60PE131CH278B — Factory-fitted solenoid valve included

Includes a factory-fitted Cetop 3 double-acting solenoid valve (closed centre, 12V DC). Controlled via pendant switch or push-button — no lever required. Ideal for applications where the operator needs to stand clear of the equipment or where remote operation is required.

Best for:

Post drivers & rock breakers
Compactors & tampers
Hydraulic tools requiring remote control
Any double-acting cylinder or hydraulic motor

🔗 You'll Also Need

› Remote Control Pendant D/A KCB22-03 — push-button 12V DC pendant switch for solenoid valve control

› JIC/UNO Adaptors JIM-UNM-90C-0909 — required to connect JIC hose ends to 9/16" UNO ports

Technical Specifications

Specification	P&T Ports (60PE010H278B)	Double Acting (60PE131CH278B)
Engine	7hp (gross) petrol, single cylinder, air-cooled, OHV
Start Type	Recoil (pull start)
Fuel	Unleaded petrol
Gear Pump Displacement	2.7cc
Flow Rate	8 LPM
Max Operating Pressure	3,000 PSI / 200 Bar
Relief Valve Setting	Factory set 2,500 PSI — field adjustable to 3,000 PSI
Reservoir (Tank)	18 litres (usable)
Port Standard	9/16" UNO SAE6# (O-ring face seal)
Valve Configuration	P&T ports only — no valve fitted	1 × Cetop 3 DA solenoid, closed centre, 12V DC
Solenoid Voltage	N/A	12V DC only
Mounting	Vertical or horizontal
Remote Control	N/A	Pendant switch compatible (not included)

Tank upgrades available as cost-plus options: 21L, 22L, 30L, 38L. Additional sandwich valve spools available (up to 3 spools total). Non-standard spool centres (Tandem, Open, Float, Single Acting) available on request. Contact us to discuss.

ℹ Port Standard — 9/16" UNO SAE6# (Read Before Ordering Hose)

All ports on this unit are 9/16" UNO (SAE6#) O-ring face seal standard. UNO ports use the same thread as JIC fittings but seal via an O-ring crushed into a face groove — not a 37° JIC flare seat. A JIC/UNO adaptor is required to connect standard JIC hose ends to these ports. For hose assemblies with BSPP ends, use a BSPP × JIC adaptor at the hose end plus a JIC/UNO adaptor at the port. See our JIC adaptor range for the fittings you need.

⚠ Solenoid Voltage — 12V DC Only

The solenoid valve on the Double Acting variant operates on 12V DC only. These units run on the engine's own starting battery. 24V solenoids are not available and not compatible. Do not attempt to run 12V solenoids on 24V systems.

⚠ Tank Installation — Warranty Condition

The oil reservoir must be properly supported and isolated against vibration and mechanical stress during installation. Improper mounting that allows the tank to flex, vibrate unsupported, or bear external load will void the tank warranty. Ensure the tank is correctly mounted and braced before operating the unit.

Freight — Australia-Wide Delivery

These units are heavy and bulky. Freight is not included in the listed price and is calculated based on your delivery location and carrier. For remote areas, or if you'd like a freight estimate before committing to an order, please call us on (07) 5563 1982 or contact us online and we'll provide a quote.

Not Sure Which Configuration Is Right?

Tell us what you're powering — cylinder bore size, stroke length, cycle speed, and duty cycle — and we'll confirm the right unit and configuration for your application.
