Hose Tail - Metric Heavy DKOS Swivel Female - Straight - Two-Piece Crimp-On
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/Two piece Crimp-on Hosetails in Straight, 45° & 90°/Metric Heavy Hose Tails
Product Details
Brand: Hydraulic.Online
Weight: 0.05 kg

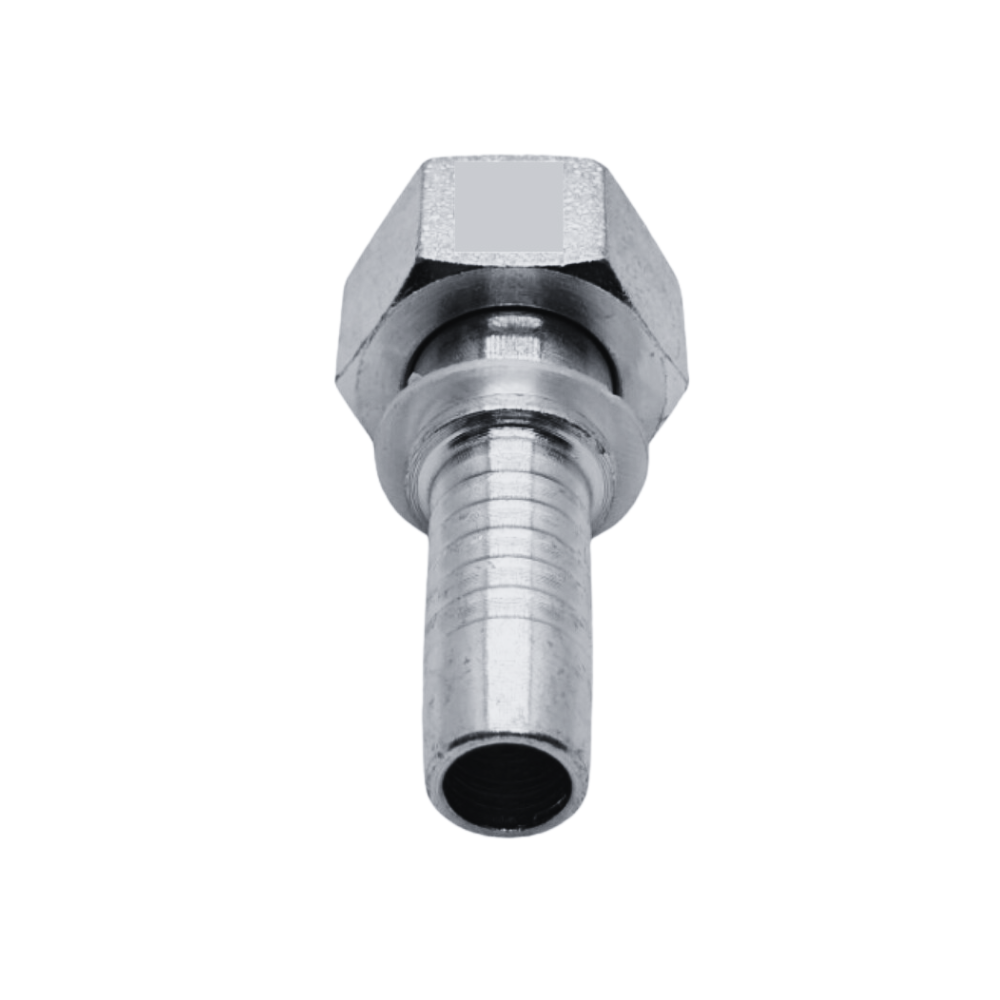

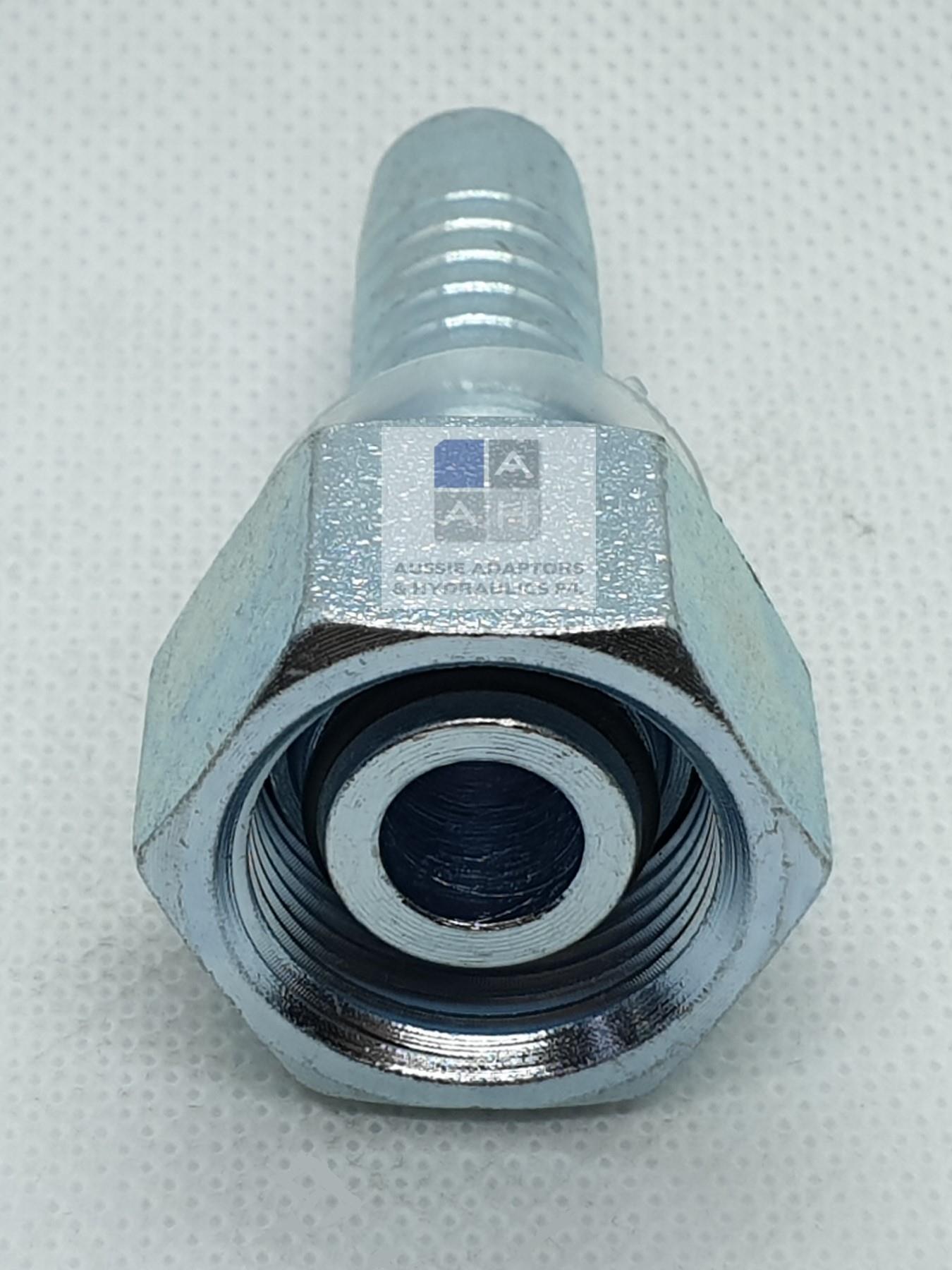

Hose Tail – Metric Heavy (S) Swivel Female – Straight – Two-Piece Crimp-On
A heavy series metric 24° cone swivel female on a straight crimp tail. The high-pressure metric hose end on European-built machinery.
Two-piece crimp-on – how it goes together
This is the tail (stem) only. A two-piece assembly is the tail plus a separate ferrule crimped over the hose. Our FS-R2 Multi-Fit ferrule covers 1-wire, 2-wire, M3K and MXT braided hose, so one ferrule series does the lot and you stock half the parts.
Add the matching FS-R2 Multi-Fit ferrule
How to choose
- A straight tail is the default. Only go to a bend when the hose would otherwise leave the port at an angle it does not like.
- Heavy (S) is built for the pressures light series runs out of. Match it to the circuit.
- S will not seal in an L port even where the thread starts.
⬇ Crimp Dimensions Chart (PDF) ⬇ Thread Identification Chart (PDF)
Where You’ll Find It
- Metric Heavy (S) Swivel Female – Pressure-side European tube assemblies needing a re-breakable joint.
Cross-Reference
- Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.
Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.
Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standard listed above.
★ Dimensions & Sizes
All measurements in millimetres unless a thread size is shown. Scroll the table sideways on a phone.
| Part number | Hose | Thread | Material | Finish |
|---|---|---|---|---|
| HTB-MHF-0414 | 1/4" | M14x1.5 (6S) | Mild steel | Plated finish |
| HTB-MHF-0416 | 1/4" | M16x1.5 (8S) | Mild steel | Plated finish |
| HTB-MHF-0420 | 1/4" | M20x1.5 (12S) | Mild steel | Plated finish |
| HTB-MHF-0520 | 5/16" | M20x1.5 (12S) | Mild steel | Plated finish |
| HTB-MHF-0618 | 3/8" | M18x1.5 (10S) | Mild steel | Plated finish |
| HTB-MHF-0620 | 3/8" | M20x1.5 (12S) | Mild steel | Plated finish |
| HTB-MHF-0622 | 3/8" | M22x1.5 (14S) | Mild steel | Plated finish |
| HTB-MHF-0624 | 3/8" | M24x1.5 (16S) | Mild steel | Plated finish |
| HTB-MHF-0820 | 1/2" | M20x1.5 (12S) | Mild steel | Plated finish |
| HTB-MHF-0822 | 1/2" | M22x1.5 (14S) | Mild steel | Plated finish |
| HTB-MHF-0824 | 1/2" | M24x1.5 (16S) | Mild steel | Plated finish |
| HTB-MHF-1030 | 5/8" | M30x2 (20S) | Mild steel | Plated finish |
| HTB-MHF-1230 | 3/4" | M30x2 (20S) | Mild steel | Plated finish |
| HTB-MHF-1236 | 3/4" | M36x2 (25S) | Mild steel | Plated finish |
| HTB-MHF-1636 | 1" | M36x2 (25S) | Mild steel | Plated finish |
| HTB-MHF-1642 | 1" | M42x2 (30S) | Mild steel | Plated finish |
| HTB-MHF-2052 | 1.1/4" | M52x2 (38S) | Mild steel | Plated finish |
| HTB-MHF-2452 | 1.1/2" | M52x2 (38S) | Mild steel | Plated finish |
| HTB-MHF-0418 | 1/4" | M18x1.5 (10S) | Mild steel | Plated finish |
Crimp diameters – 2026 chart (mm)
Crimp outside diameter in millimetres, measured across the flats after crimping, using the FS‑R2 Multi‑Fit ferrule. One ferrule series covers 1‑wire, 2‑wire, M3K and MXT braided hose.
| Hose size | CR1 1‑wire (100R1AT / 1SN) |
CR2 2‑wire (100R2AT / 2SN) |
M3K (100R17) |
MXT |
|---|---|---|---|---|
| -04 (1/4") | 17.25 | 18.40 | see note | 18.20 |
| -05 (5/16") | 18.65 | 19.20 | – | – |
| -06 (3/8") | 19.95 | 21.20 | 19.80 | 20.50 |
| -08 (1/2") | 23.25 | 24.15 | 23.60 | 23.50 |
| -10 (5/8") | 26.95 | 27.45 | – | – |
| -12 (3/4") | 30.75 | 31.85 | 32.30 | 30.40 |
| -16 (1") | 39.25 | 40.40 | 40.00 | 38.10 |
| -20 (1-1/4") | 48.80 | 51.00 | – | – |
| -24 (1-1/2") | 56.00 | 58.30 | – | – |
| -32 (2") | 70.80 | 72.50 | – | – |
Pressure‑wash hose 3/8" 6,000 psi crimps to 20.20mm on the FS‑R2‑06 ferrule.
Note: 1/4" M3K uses a one‑wire‑specific ferrule rather than the FS‑R2 – call 1300 146 737 and we will sort it.
Check the finished crimp with calipers at two points 90° apart and aim within ±0.1mm of the figure. Thermoplastic 100R7 and PTFE 100R14 hose crimp to different diameters on a different ferrule series – ask us before you crimp either onto these tails.
These figures are for Hydraulic.Online two‑piece tails with FS‑R2 ferrules. Never mix a tail from one system with a ferrule from another.
Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP
Technicians Advice
On heavy series the cone does the sealing and the nut only supplies the load. If it weeps, inspect the cone face rather than reaching for a longer bar – a scored cone will not come good under torque.
