Hydraulic Filter Clogging Indicators & Gauges – Suction, Return & Pressure Filter Service Alerts

Name: Filter Clogging Indicators & Gauges | Suction Return Pressure
SKU: 114-01-211
Price: 39.6 AUD
Availability: InStock

Store/Gauges Flow & Pressure Test Kits/Analogue Pressure Gauges Mechanical Liquid Filled

SKU 114-01-211-V-000Z-SK

AU$39.60

On Sale

was ~~AU$48.00~~ Save 18%

Indicator

Please choose

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

Hydraulic Filter Clogging Indicators & Gauges – Suction, Return & Pressure Filter Service Alerts

Store/Gauges Flow & Pressure Test Kits/Analogue Pressure Gauges Mechanical Liquid Filled

Product Details

Weight: 0.10 kg

Hydraulic Filter Clogging Indicators & Gauges - Know Exactly When to Change Elements

Stop guessing when to change filter elements. An indicator reads the pressure (or vacuum) across the element and tells you the moment it starts bypassing - change on condition, not by the calendar, and never run unfiltered oil unknowingly.

Match the indicator to the filter:

Suction & return gauges/switches (1/8" BSPT) screw into the gauge port on our spin-on heads and tank-top return filters. Visual gauges show green/red at a glance; electrical switches drive a dash light, buzzer or PLC input.
Pressure filter indicators (DEA/DLA/DVM, 1/2" BSPP) fit the differential port on our FHP/FMM/FMP high-pressure filters (they ship with a T2-H blanking plug in that port).

The picture changes as you pick - it always shows exactly what arrives in the box. All prices include GST.

Sizes & Part Numbers - every combination

Indicator	SKU	Price inc GST
Suction Vacuum Gauge 0-30 Hg – Visual 1/8" BSPT	114-01-211-V-000Z-SK	AU$39.60

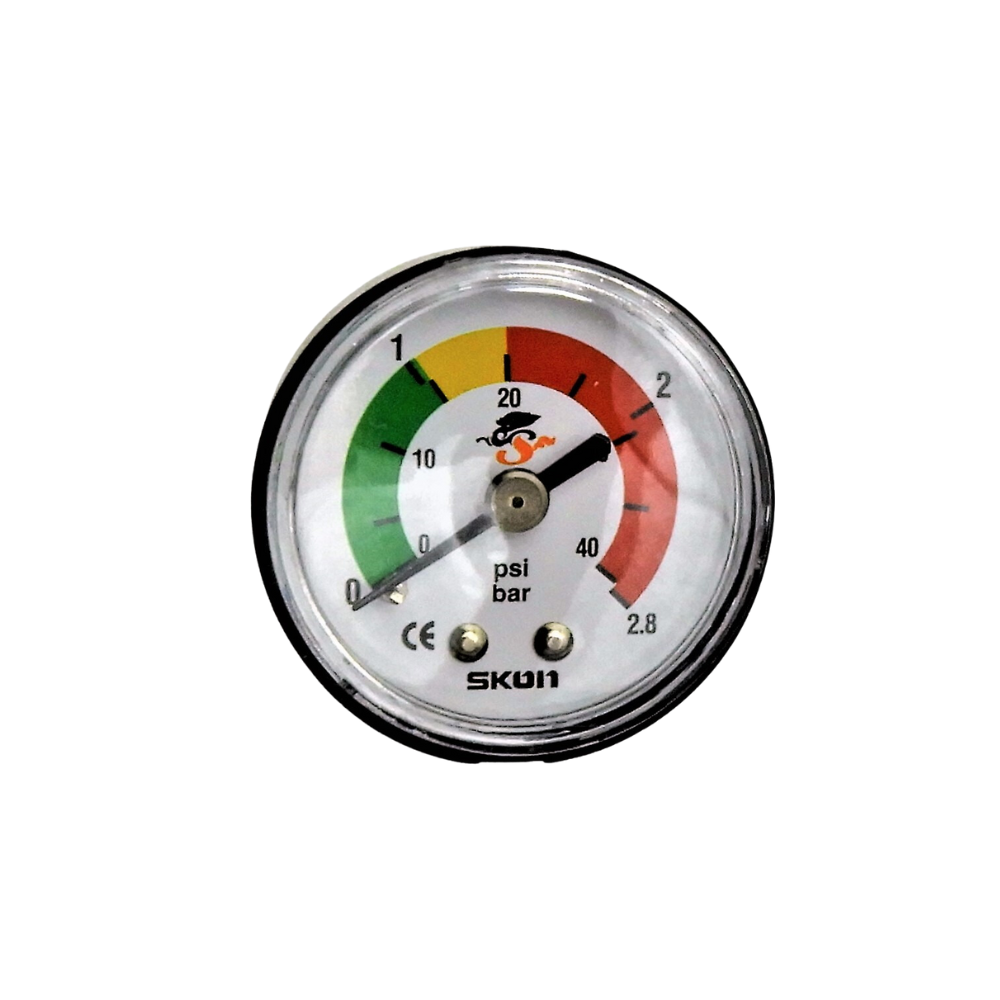

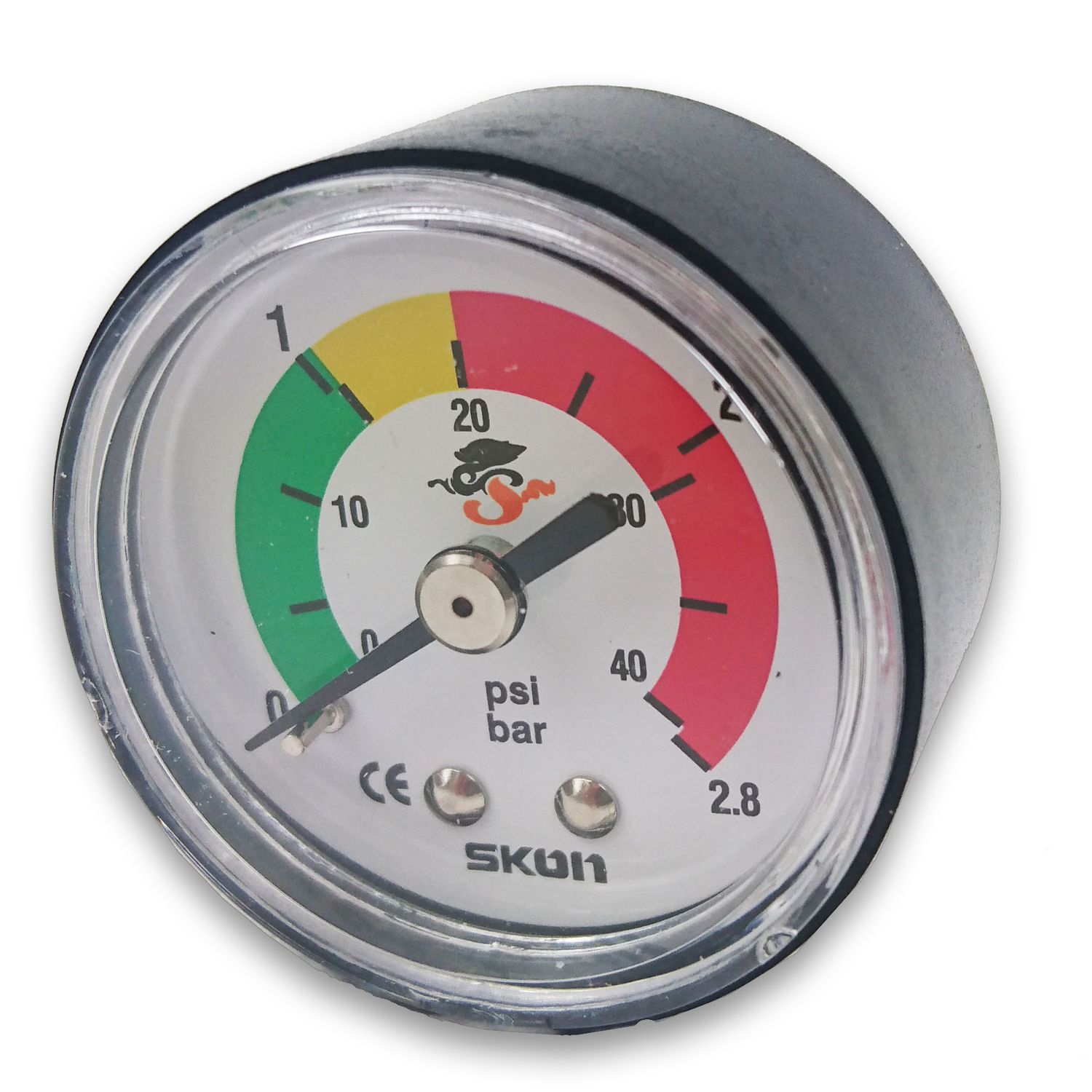

Return Gauge 0-2.8 Bar – Visual 1/8" BSPT	114-01-211-002.8J-SK	AU$39.60
Suction Switch 0.15-8 Bar – Electrical 1/8" BSPT	ES	AU$192.46
Return Switch 0.5-8 Bar – Electrical 1/8" BSPT	ER	AU$148.90
Pressure Filter Indicator 5 Bar – Electrical DIN	DEA50HA50P01	AU$364.32
Pressure Filter LED Indicator 5 Bar – DIN Connector	DLA50HA51P01	AU$479.95
Pressure Filter LED Indicator 5 Bar – 5 Pin Round	DLA50HA71P01	AU$479.95
Pressure Filter Visual Indicator – Manual Reset	DVM50HP01	AU$300.17
Blanking Plug 1/2" BSPP – Indicator Port	T2-H	AU$79.20

How to Choose

Suction line - vacuum gauge 0-30 Hg (visual) or ES switch (electrical).
Return line - 0-2.8 bar manometer (visual) or ER switch (electrical).
Pressure filter - DVM for a pop-up visual, DLA for LED, DEA for a straight electrical signal. T2-H blanks the port if you remove an indicator.

Technicians Advice

Read gauges at OPERATING temperature under normal load - cold thick oil reads high and will have you changing elements early. A gauge that never moves in months is worth a two-second tap test at service (stuck needles happen in high-vibration spots). Wire electrical switches to a dash lamp the operator can actually see.

Official Datasheets

📄 Clogging Indicators & Gauges Spec Sheet

Complete Your Filtration Setup

⭐ Complete Return Assemblies ⚙ 3/4" Spin-Ons ⚙ 1-1/4" Spin-Ons ⚙ Pressure Filters ⚙ Tank Top Returns

Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.

Still not sure? Call us on 1300 146 737 or email sales@mhfgc.com.au with a photo of your setup and your pump flow - we will pick the right part for you.
