Hydraulic Caps & Plugs Jic Various Sizes
SKU JIF JIM
AU$3.75
EOFY Sale!
was AU$3.95 Save 5%
Bulk pricing available for quantities of 6 units or more
SIZES JIC
Please choose
In stock
1
Buy more, save more
| Quantity | Price per item | Discount |
| 6 items | AU$3.50 | 7% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

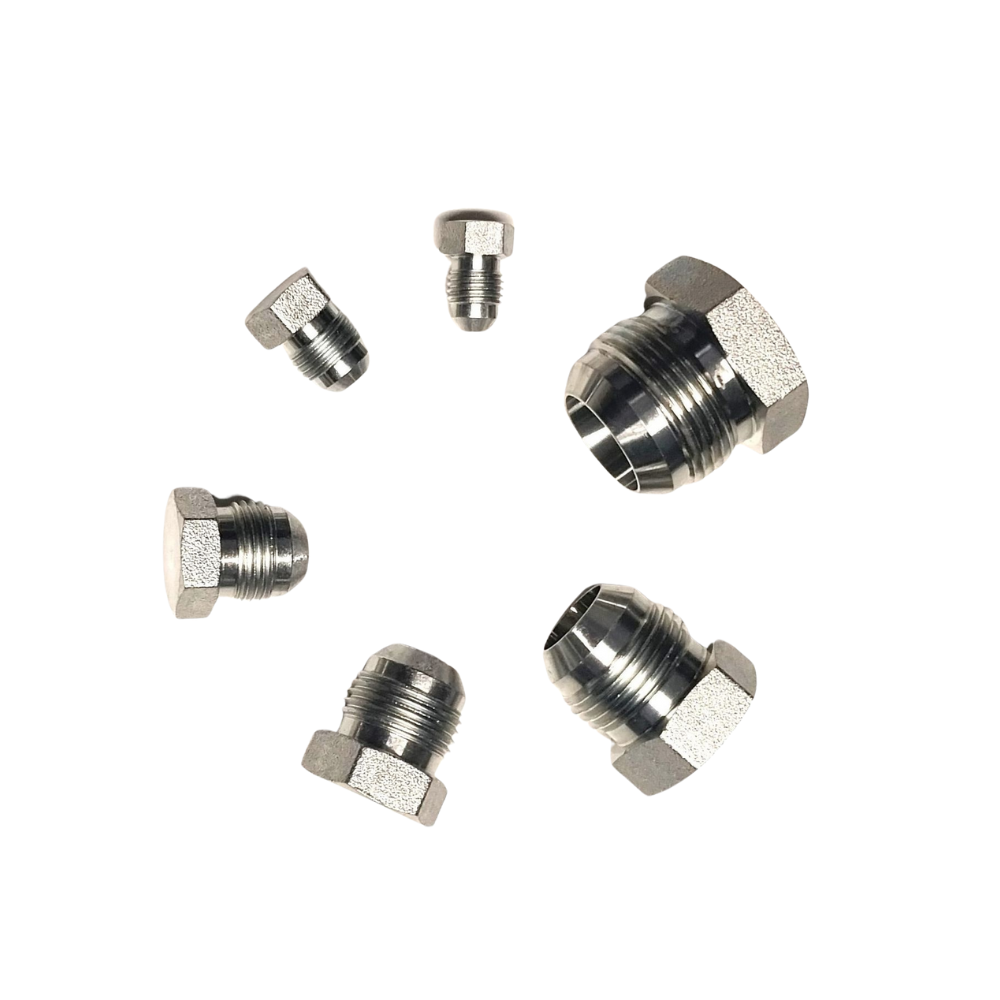

Hydraulic Caps & Plugs Jic Various Sizes
Product Details
Weight: 0.05 kg
Hydraulic Female Caps & Male Plugs in JIC Thread type available in Various Sizes.
JIC Hydraulic Caps and Plugs are used to "block" the end of disconnected hoses, pipes to keep oil in and Contaminats out.
Male Plugs can also be used with an O ring as a Low Pressure UNO Port Plug to protect Pumps, Valves, Motors, and Cylinders from leaking oil out and prevent dust water and dirt from getting in.
These are Hydraulic Jic plugs & plugs. Please select the required size from the above drop box, and insert the quantity into the 'quantity' box. We have another listing for caps, as well as other adaptors. Size conversion
| JIC/UNO THREAD ID CHART | ||||||
| Male Thread OD & Pitch | DASH SIZE | Male Thread OD | Female Thread ID | TUBE SIZE | ||
| inch – TPI | mm | inch | mm | inch | inch | |
| 5/16 – 24 UNF | -05 | 7.9 | 0.31 | 6.9 | 0.27 | 1/8 |
| 3/8 – 24 UNF | -06 | 9.5 | 0.38 | 8.5 | 0.33 | 3/16 |
| 7/16 – 20 UNF | -07 | 11.1 | 0.44 | 9.9 | 0.39 | 1/4 |
| 1/2 – 20 UNF | -08 | 12.7 | 0.50 | 11.4 | 0.45 | 5/16 |
| 9/16 – 18 UNF | -09 | 14.3 | 0.56 | 13.0 | 0.51 | 3/8 |
| 3/4 – 16 UNF | -12 | 19.1 | 0.75 | 17.5 | 0.69 | 1/2 |
| 7/8 – 14 UNF | -14 | 22.2 | 0.88 | 20.3 | 0.80 | 5/8 |
| 1-1/16 – 12 UNF | -17 | 27.0 | 1.06 | 24.9 | 0.98 | 3/4 |
| 1-3/16 – 12 UNF | -19 | 30.2 | 1.19 | 28.2 | 1.11 | 7/8 |
| 1-5/16 – 12 UNF | -21 | 33.3 | 1.31 | 31.2 | 1.23 | 1 |
| 1-5/8 – 12 UNF | -26 | 41.3 | 1.63 | 39,1 | 1.54 | 1.1/4 |
| 1-7/8 – 12 UNF | -30 | 47.6 | 1.88 | 45,5 | 1.79 | 1.1/2 |
| 2-1/2 – 12 UNF | -40 | 63.5 | 2.50 | 61,5 | 2.42 | 2 |
