Hose Tail - SAE Code 62 Flange - 90° Swept - Two-Piece Crimp-On
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/Two piece Crimp-on Hosetails in Straight, 45° & 90°/SAE Code 61 & Code 62 Hose Tails
Product Details
Weight: 0.23 kg

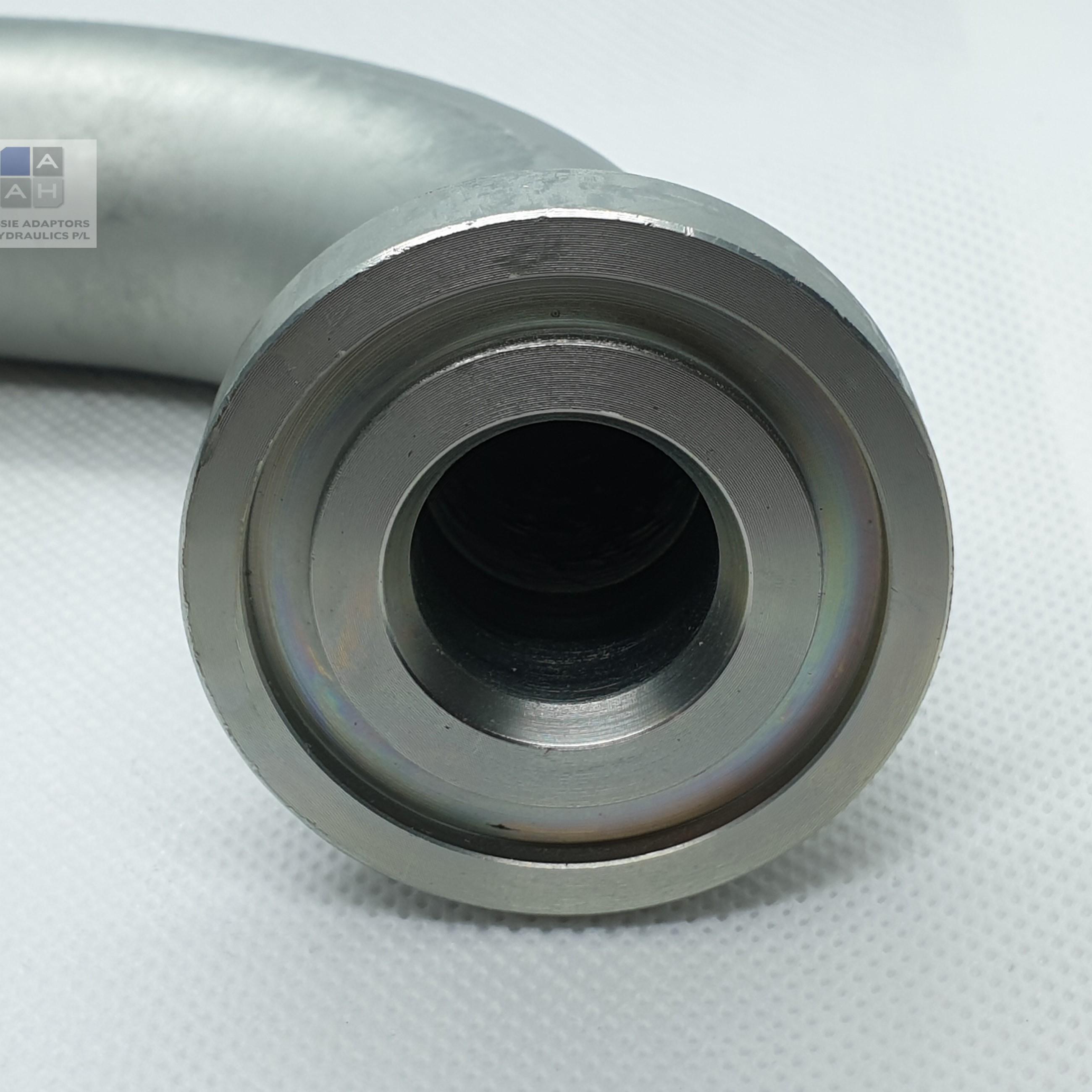

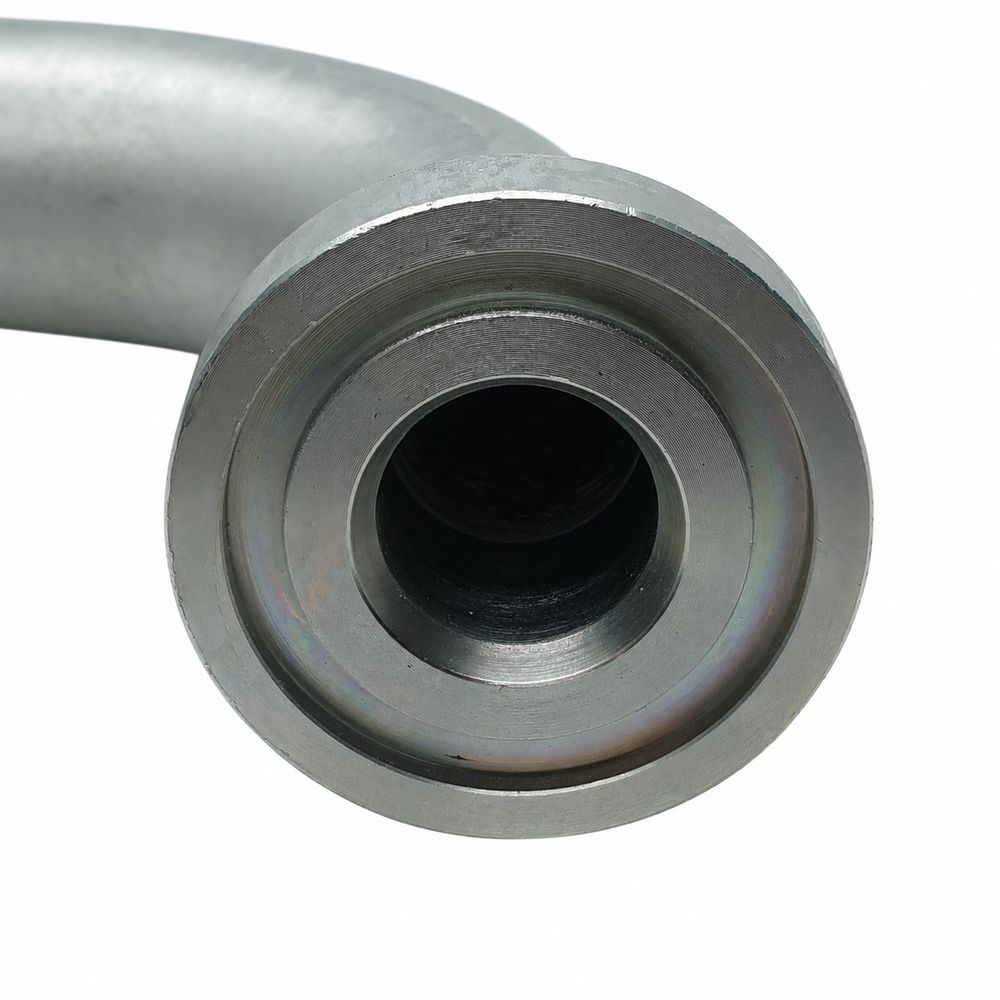

Hose Tail – SAE Code 62 Flange – 90° Swept – Two-Piece Crimp-On
A Code 62 split flange head on a 90° swept crimp tail. Takes the hose square off a high-pressure flanged port in one part, with a long sweeping bend that is easier on the hose than a compact elbow.
Two-piece crimp-on – how it goes together
This is the tail (stem) only. A two-piece assembly is the tail plus a separate ferrule crimped over the hose. Our FS-R2 Multi-Fit ferrule covers 1-wire, 2-wire, M3K and MXT braided hose, so one ferrule series does the lot and you stock half the parts.
Add the matching FS-R2 Multi-Fit ferrule
How to choose
- The bend is formed into the tail, so the angle is fixed. Work out which way the hose needs to leave the port before you order, because you cannot rotate it afterwards.
- Swept is a longer, gentler radius than compact. It needs more room but is kinder to the hose and flows better.
- Code 62 and Code 61 have different bolt patterns and head thicknesses. Do not mix them.
⬇ Crimp Dimensions Chart (PDF) ⬇ Thread Identification Chart (PDF)
★ Dimensions & Sizes
All measurements in millimetres unless a thread size is shown. Scroll the table sideways on a phone.
| Part number | Tail | Flange | Material | Finish |
|---|---|---|---|---|
| HTB-F62-90S-1616 | 1" | 1" | Mild steel | Plated finish |
Where You’ll Find It
- SAE Code 62 Flange – High-pressure pump and motor ports on excavators and heavy plant.
Cross-Reference
- SAE Code 62 Flange – SAE J518 Code 62 / ISO 6162-2 high-pressure split flange. Heavier head and tighter bolt pattern than Code 61.
Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.
Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standard listed above.
Watch first
How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type
Crimp diameters – 2026 chart (mm)
Crimp outside diameter in millimetres, measured across the flats after crimping, using the FS‑R2 Multi‑Fit ferrule. One ferrule series covers 1‑wire, 2‑wire, M3K and MXT braided hose.
| Hose size | CR1 1‑wire (100R1AT / 1SN) |
CR2 2‑wire (100R2AT / 2SN) |
M3K (100R17) |
MXT |
|---|---|---|---|---|
| -04 (1/4") | 17.25 | 18.40 | see note | 18.20 |
| -05 (5/16") | 18.65 | 19.20 | – | – |
| -06 (3/8") | 19.95 | 21.20 | 19.80 | 20.50 |
| -08 (1/2") | 23.25 | 24.15 | 23.60 | 23.50 |
| -10 (5/8") | 26.95 | 27.45 | – | – |
| -12 (3/4") | 30.75 | 31.85 | 32.30 | 30.40 |
| -16 (1") | 39.25 | 40.40 | 40.00 | 38.10 |
| -20 (1-1/4") | 48.80 | 51.00 | – | – |
| -24 (1-1/2") | 56.00 | 58.30 | – | – |
| -32 (2") | 70.80 | 72.50 | – | – |
Pressure‑wash hose 3/8" 6,000 psi crimps to 20.20mm on the FS‑R2‑06 ferrule.
Note: 1/4" M3K uses a one‑wire‑specific ferrule rather than the FS‑R2 – call 1300 146 737 and we will sort it.
Check the finished crimp with calipers at two points 90° apart and aim within ±0.1mm of the figure. Thermoplastic 100R7 and PTFE 100R14 hose crimp to different diameters on a different ferrule series – ask us before you crimp either onto these tails.
These figures are for Hydraulic.Online two‑piece tails with FS‑R2 ferrules. Never mix a tail from one system with a ferrule from another.
Technicians Advice
Even, staged, cross-pattern tightening on all four bolts. A swept 90 puts the hose out at a distance, so cycle the machine and watch where it actually sits under load rather than where it sat on the bench.
