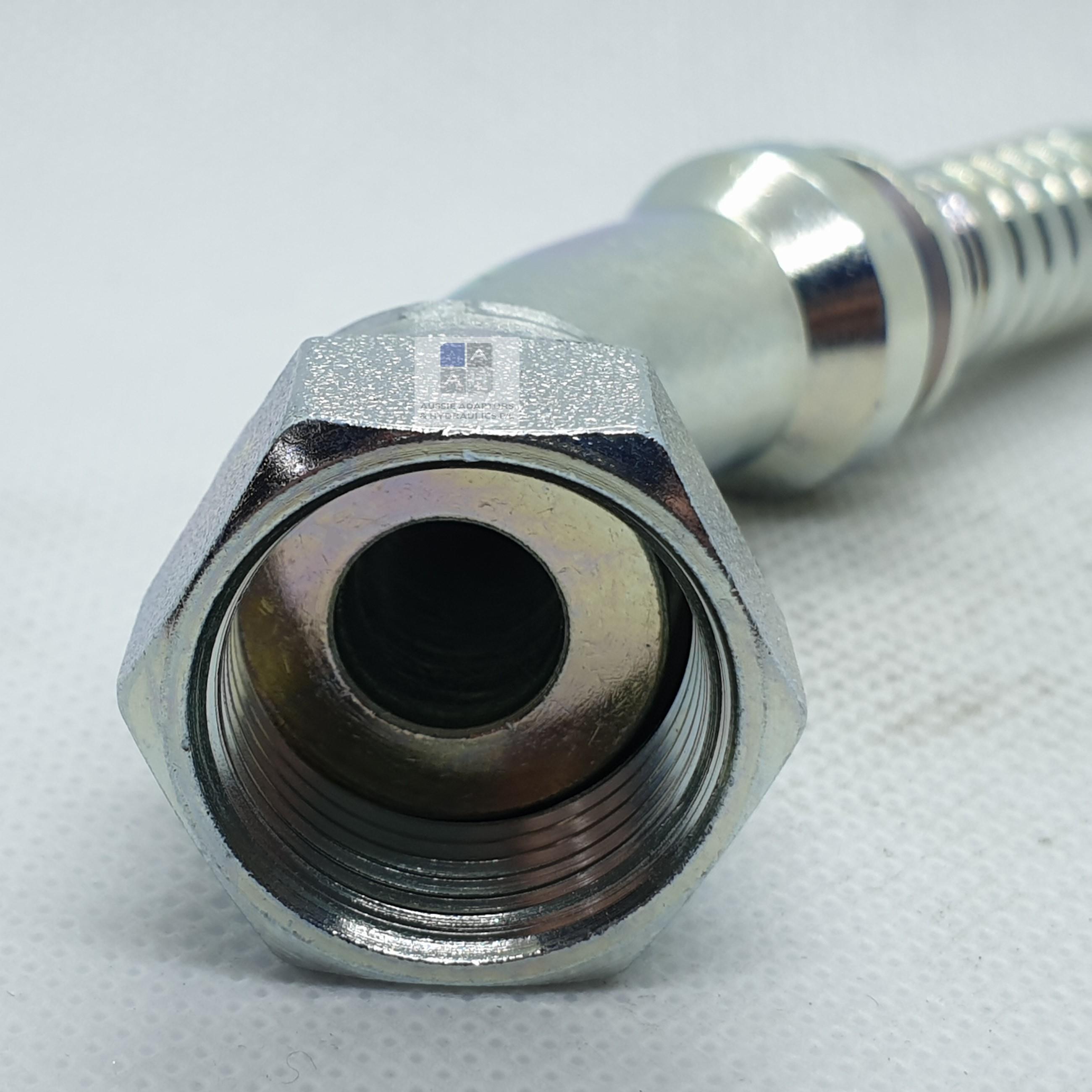

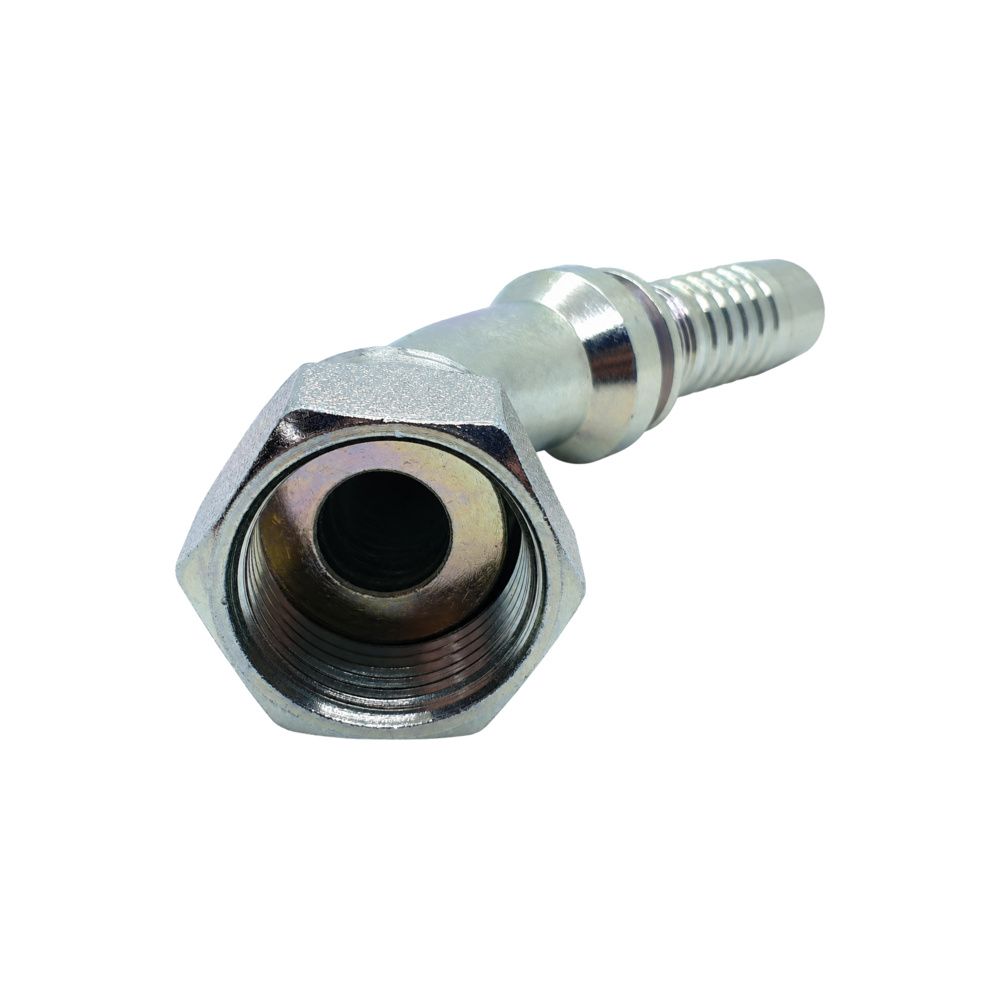

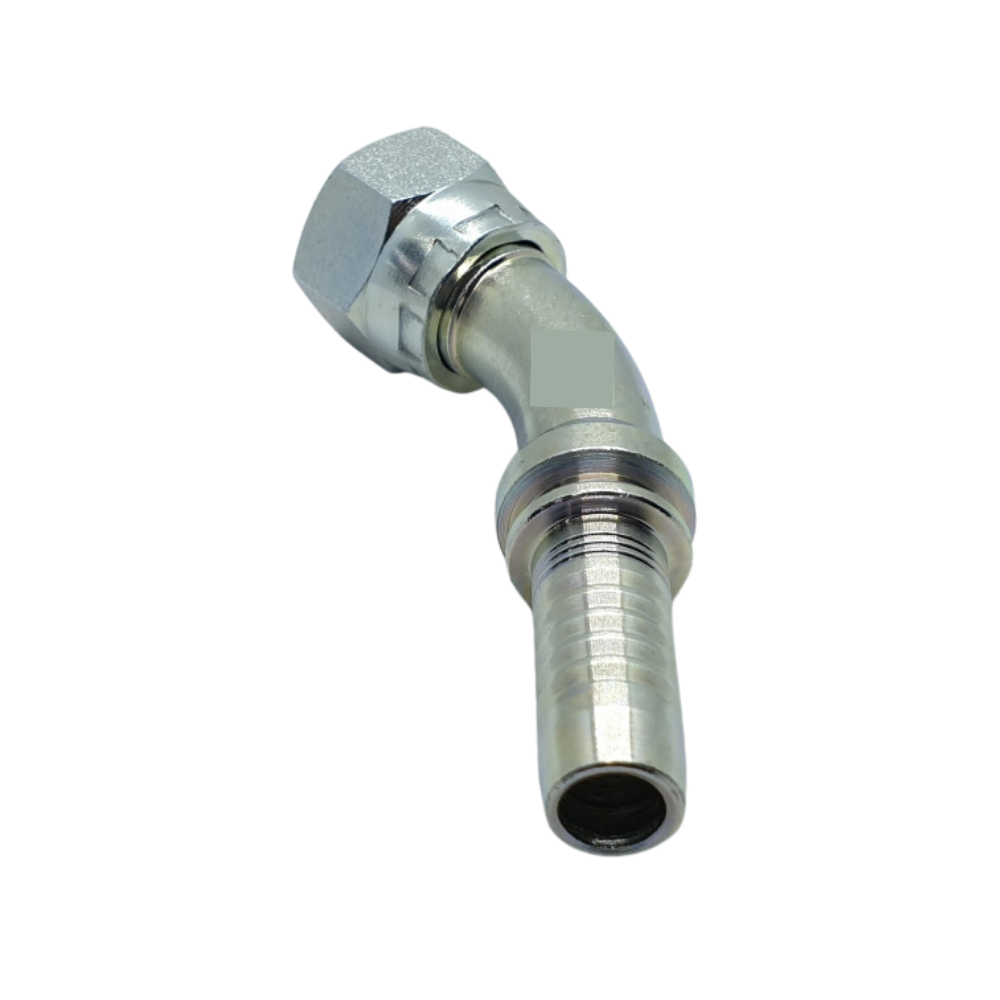

Hose Tail - ORFS Swivel Female - 45° Elbow - Two-Piece Crimp-On
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/Two piece Crimp-on Hosetails in Straight, 45° & 90°/ORFS Hose Tails
Product Details
Brand: Hydraulic.Online
Weight: 0.03 kg
Hose Tail - ORFS Swivel Female - 45° Elbow - Two-Piece Crimp-On
Two-piece crimp-on hose tail: the ORFS Swivel Female end O-ring face seal - the leak-free standard on late-model gear. Commonly found on modern excavators, harvesters and OEM circuits. Crimp it with our FS-R2 Multi-Fit ferrule – one ferrule series covers 1-wire, 2-wire, M3K and MXT braided hose, so you stock half the parts.
⬇ Crimp Dimensions Chart (PDF)⬇ Thread Identification Chart (PDF)
Don’t forget the ferrule: every two-piece tail needs an FS-R2 Multi-Fit ferrule – the same ferrule suits 1-wire and 2-wire hose. Order one per tail.
Ways to buy:
- Off the shelf – pick your size below and it’s on its way.
- Crimped onto a made-to-length hose – order through our hose assembly builder and we do the crimping.
- Need a size you can’t see? Call us – if it exists, we can get it.
Pick your size
| Variation | SKU | Price inc GST |
| Hose Tail - (04) 1/4" Hose x (09) 9/16" ORFS Swivel Female - 45° Elbow | HTB-ORF-45S-0409 | $10.80 |
| Hose Tail - (04) 1/4" Hose x (11) 11/16" ORFS Swivel Female - 45° Elbow | HTB-ORF-45S-0411 | $11.70 |
| Hose Tail - (06) 3/8" Hose x (11) 11/16" ORFS Swivel Female - 45° Elbow | HTB-ORF-45S-0611 | $12.70 |
| Hose Tail - (06) 3/8" Hose x (13) 13/16" ORFS Swivel Female - 45° Elbow | HTB-ORF-45S-0613 | $13.10 |
| Hose Tail - (08) 1/2" Hose x (13) 13/16" ORFS Swivel Female - 45° Elbow | HTB-ORF-45S-0813 | $14.10 |
| Hose Tail - (08) 1/2" Hose x (16) 1" ORFS Swivel Female - 45° Elbow | HTB-ORF-45S-0816 | $15.20 |
| Hose Tail - (10) 5/8" Hose x (16) 1" ORFS Swivel Female - 45° Elbow | HTB-ORF-45S-1016 | $14.90 |
| Hose Tail - (10) 5/8" Hose x (19) 1-3/16" ORFS Swivel Female - 45° Elbow | HTB-ORF-45S-1019 | $18.00 |
| Hose Tail - (12) 3/4" Hose x (19) 1-3/16" ORFS Swivel Female - 45° Elbow | HTB-ORF-45S-1219 | $16.60 |
| Hose Tail - (12) 3/4" Hose x (23) 1-7/16" ORFS Swivel Female - 45° Elbow | HTB-ORF-45S-1223 | $32.80 |
| Hose Tail - (16) 1" Hose x (23) 1-7/16" ORFS Swivel Female - 45° Elbow | HTB-ORF-45S-1623 | $22.10 |
| Hose Tail - (20) 1-1/4" Hose x (27) 1-11/16" ORFS Swivel Female - 45° Elbow | HTB-ORF-45S-2027 | $43.70 |
Specifications
| Parameter | Value |
| Type | Two-piece crimp-on hose tail |
| End form | ORFS Swivel Female |
| Configuration | 45° Elbow |
| Material | Zinc-plated carbon steel |
| Ferrule | FS-R2 Multi-Fit (order separately, one per tail) |
| Suits hose | 1-wire (R1AT/1SN), 2-wire (R2AT/2SN), M3K, MXT braided |
| Crimp data | See Crimp Dimensions Chart above |
| Brand | Engmattec |
How to choose
- First number is the hose bore in dash sixteenths – (08) = 12.7 mm (1/2") hose.
- Second is the thread end – check it with the Thread Identification Chart if unsure.
- One elbow per assembly – if both ends need a bend, use a screw-on elbow adaptor on the second end.
Technicians Advice
Check the O-ring is seated in its groove before every connection. Carry spares - it is a 20 cent part that stops a $2,000 clean-up.
Buying in bulk or fitting out a fleet? Call us for trade pricing.
Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
