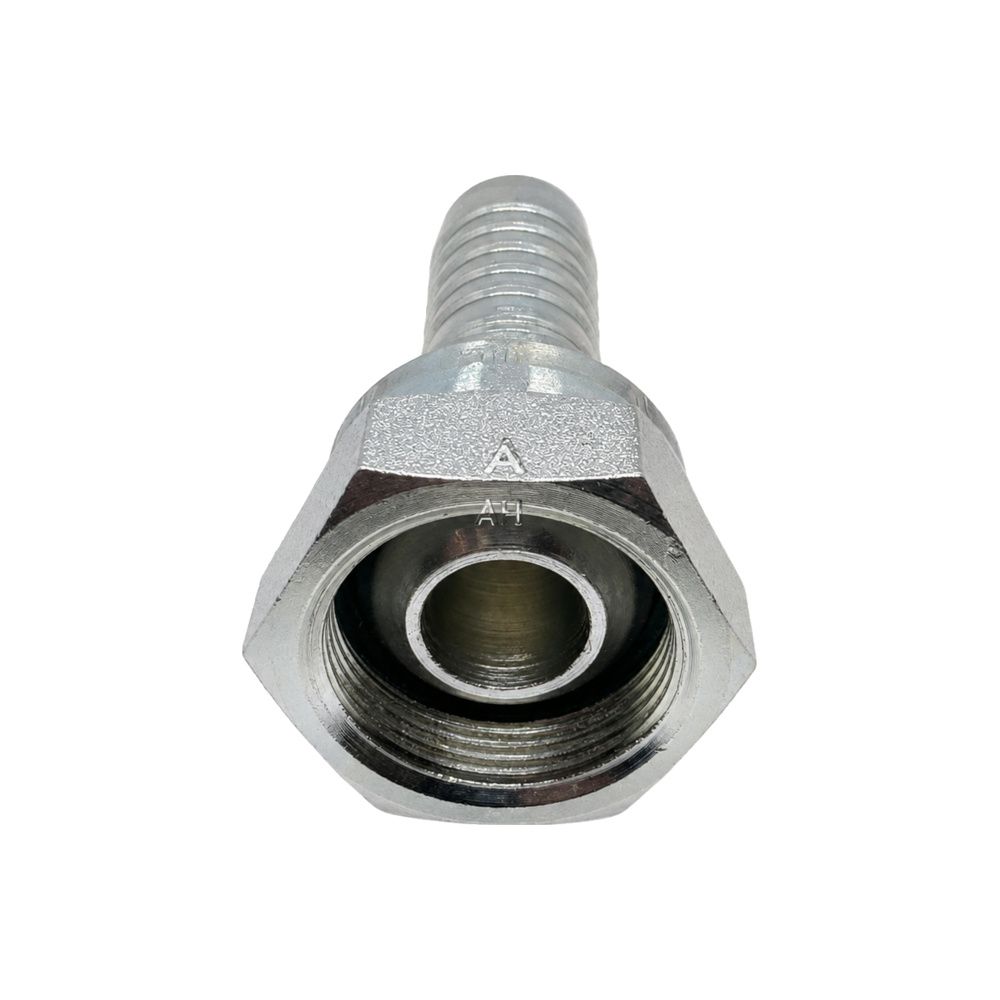

Hose Tail – Metric Multi-Seal Swivel Female – Straight – Two-Piece Crimp-On

A metric multi-seal swivel female on a straight crimp tail, for ports that take a multi-seal seat rather than a plain cone.

Mild steel body with a plated finish, manufactured to the standard listed above.

This is the tail only – ferrules are sold separately

A two-piece crimp-on assembly is two separate parts: this tail (the stem) and a ferrule that crimps over the hose. The ferrule is not included. You need one ferrule per tail.

We sell them separately on purpose. Several different ferrule styles will fit, and the right one depends on the hose you are crimping onto, not just the size:

• FS‑R2 Multi‑Fit – 1‑wire, 2‑wire, M3K and MXT braided hose. One series covers the lot, so most jobs take this.
• FS‑R7 – thermoplastic 100R7 hose. Different outside diameter and crimp figure to braided hose.
• FS‑R14 – PTFE 100R14 hose with stainless braid.

🔗 Choose your ferrule – see all styles

Not sure which one? Tell us the hose you are using on 1300 146 737 and we will match it. Never mix a tail from one system with a ferrule from another – the crimp diameter will be wrong.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• Metric Multi-Seal Swivel Female – metric thread with a multi-seal (combination) seat, seals on a captive soft seal in the seat rather than on the thread

How to Choose

• A straight tail is the default. Only go to a bend when the hose would otherwise leave the port at an angle it does not like.
• The multi-seal seat is easy to confuse with a plain metric cone. Compare against the mating part first.
• The seal is captive in the seat, so nothing goes on the thread.

Technicians Advice

Hold the old fitting against the new one and look into both seats. A multi-seal fitted into a plain cone port will hold on test and weep in service.

Where You’ll Find It

• Metric Multi-Seal Swivel Female – European and Asian-built machinery using the multi-seal port pattern, often where one fitting has to suit more than one seat form.

Cross-Reference

• Metric Multi-Seal Swivel Female – Metric multi-seal. Check the seat carefully against the mating part – multi-seal seats are easy to confuse with a plain metric cone.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Downloads

📄 Crimp Dimensions Chart (PDF) 📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 90° Swept – same threads
