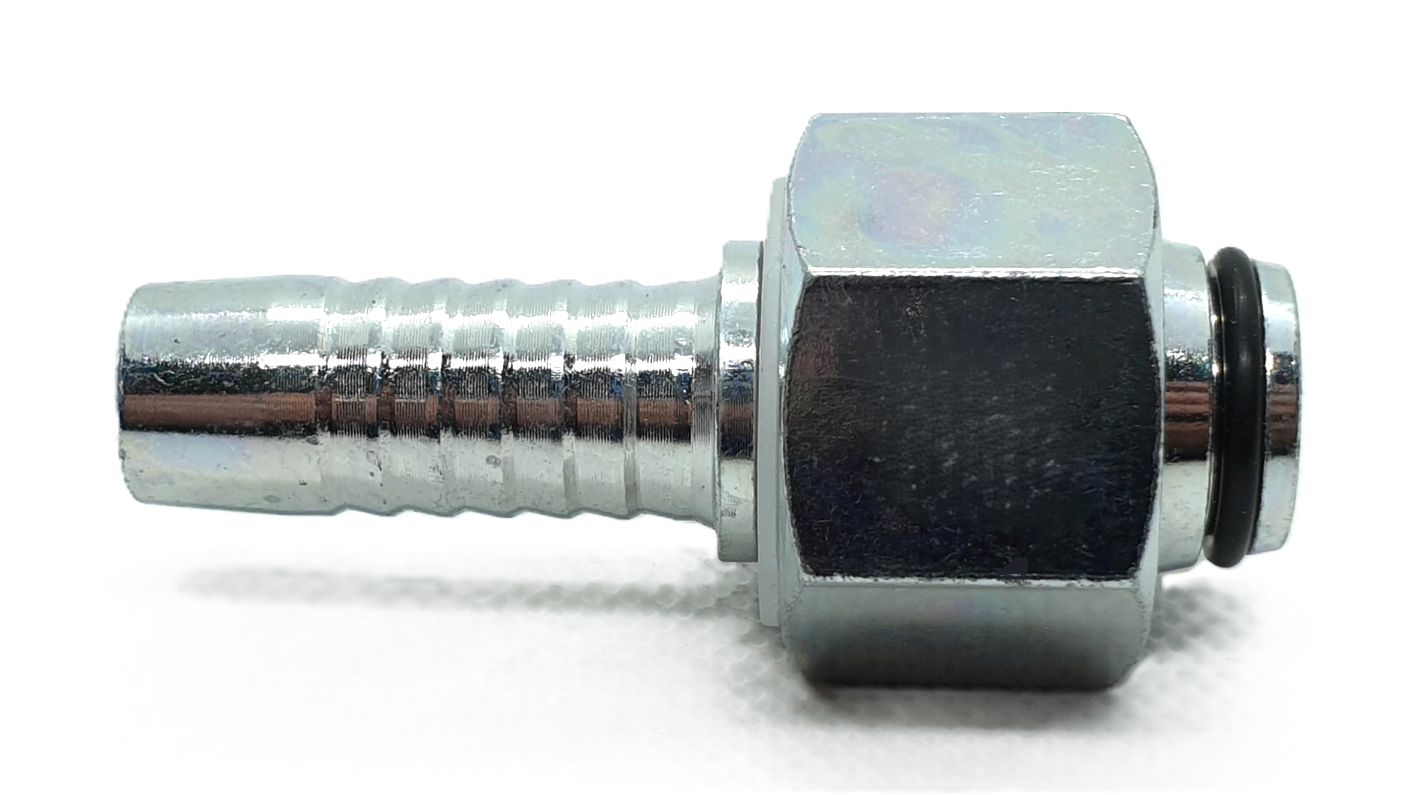

Hose Tail - Metric Heavy DKOS Swivel Female - Straight - Two-Piece Crimp-On

Two-piece crimp-on hose tail: the Metric Heavy DKOS Swivel Female end 24° cone with O-ring, DIN 2353 heavy series - for pressures over 210 bar. Commonly found on concrete pumps, crane trucks, high-pressure European gear. Crimp it with our FS-R2 Multi-Fit ferrule – one ferrule series covers 1-wire, 2-wire, M3K and MXT braided hose, so you stock half the parts.

⬇ Crimp Dimensions Chart (PDF)⬇ Thread Identification Chart (PDF)

Ways to buy:

• Off the shelf – pick your size below and it’s on its way.
• Crimped onto a made-to-length hose – order through our hose assembly builder and we do the crimping.
• Need a size you can’t see? Call us – if it exists, we can get it.

Pick your size

Specifications

How to choose

• First number is the hose bore in dash sixteenths – (08) = 12.7 mm (1/2") hose.
• Second is the thread end – check it with the Thread Identification Chart if unsure.
• One elbow per assembly – if both ends need a bend, use a screw-on elbow adaptor on the second end.

Technicians Advice

Heavy (S) series has a thicker cone and different tube size for the same thread - never swap an S nut onto an L fitting.

Buying in bulk or fitting out a fleet? Call us for trade pricing.

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
