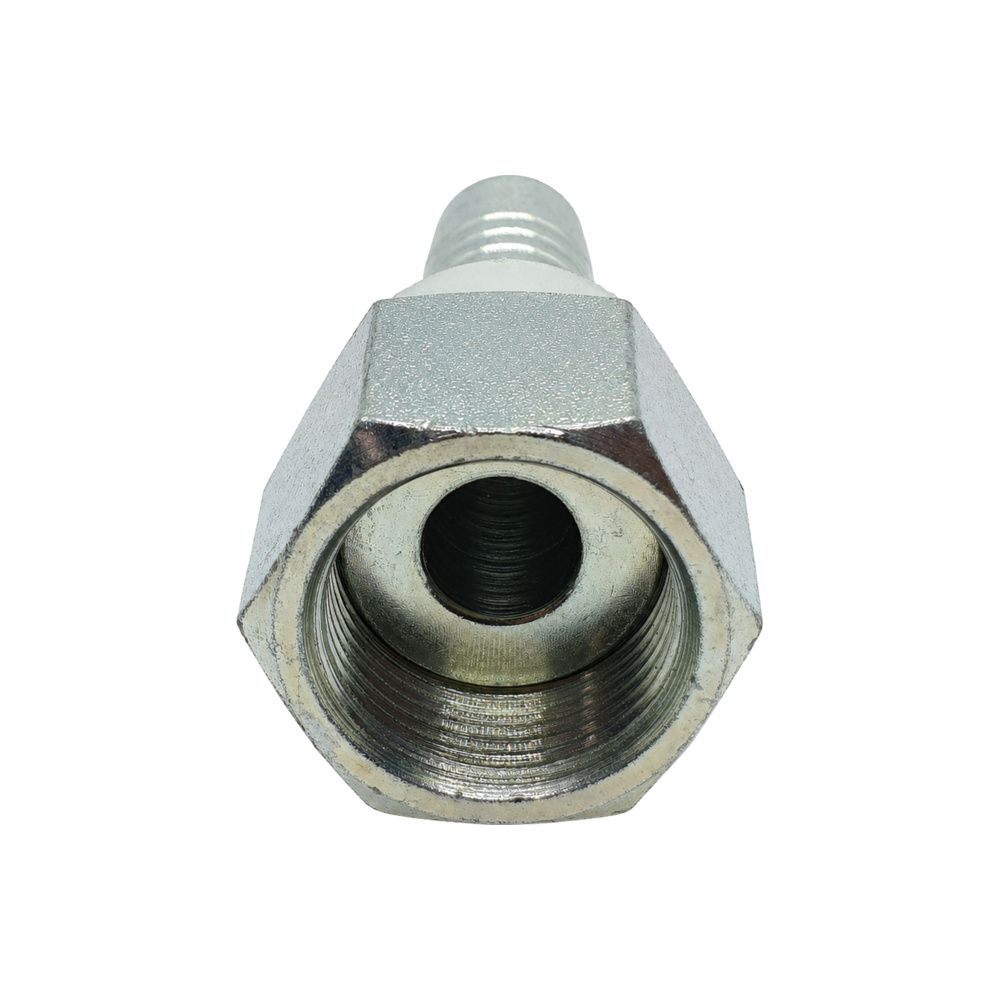

Hose Tail – Metric Cone Swivel Female – Straight – Two-Piece Crimp-On

A metric flat face swivel female on a straight crimp tail, common on Chinese and Asian-built machinery.

Mild steel body with a plated finish, manufactured to the standard listed above.

This is the tail only – ferrules are sold separately

A two-piece crimp-on assembly is two separate parts: this tail (the stem) and a ferrule that crimps over the hose. The ferrule is not included. You need one ferrule per tail.

We sell them separately on purpose. Several different ferrule styles will fit, and the right one depends on the hose you are crimping onto, not just the size:

• FS‑R2 Multi‑Fit – 1‑wire, 2‑wire, M3K and MXT braided hose. One series covers the lot, so most jobs take this.
• FS‑R7 – thermoplastic 100R7 hose. Different outside diameter and crimp figure to braided hose.
• FS‑R14 – PTFE 100R14 hose with stainless braid.

🔗 Choose your ferrule – see all styles

Not sure which one? Tell us the hose you are using on 1300 146 737 and we will match it. Never mix a tail from one system with a ferrule from another – the crimp diameter will be wrong.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• Metric Flat Face Swivel Female – metric thread with a flat sealing face, commonly the Chinese flat face pattern (e.g. M14x1.5), seals on an O-ring in the flat face, never on the thread

How to Choose

• A straight tail is the default. Only go to a bend when the hose would otherwise leave the port at an angle it does not like.
• It looks like ORFS but the thread is metric and the face diameters differ. Measure rather than assume.
• Seals on the O-ring in the flat face.

Technicians Advice

If an ORFS fitting almost threads on but binds, you are probably on a metric flat face. Stop before you damage either thread and check the callout.

Where You’ll Find It

• Metric Flat Face Swivel Female – Chinese and Asian-built machinery and imported attachments – excavators, loaders and skid steers sourced outside Europe and the US.

Cross-Reference

• Metric Flat Face Swivel Female – Metric flat face. Looks like ORFS but the thread is metric and the face diameters differ. Measure the face, do not assume it is ORFS.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Downloads

📄 Crimp Dimensions Chart (PDF) 📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 90° Swept – same threads
