Hydraulic Stainless Steel 316 JIC Female Straight Hose Tail Barb Fitting
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/Stainless Steel Hose Fittings Grade 316/316 Stainless Steel JIC Hosetails

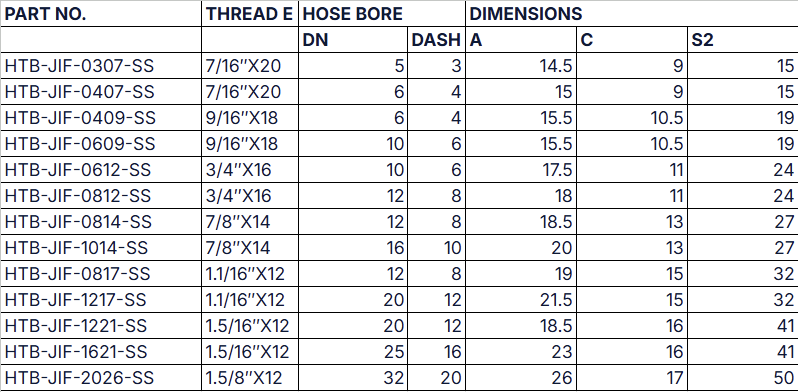

SKU HTB-JIF-0307-SS
AU$9.82
On Sale
was AU$19.64 Save 50%
Size
Please choose
In stock: 100 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Hydraulic Stainless Steel 316 JIC Female Straight Hose Tail Barb Fitting
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/Stainless Steel Hose Fittings Grade 316/316 Stainless Steel JIC Hosetails
Product Details
Brand: Hydraulic.Online
Weight: 0.10 kg

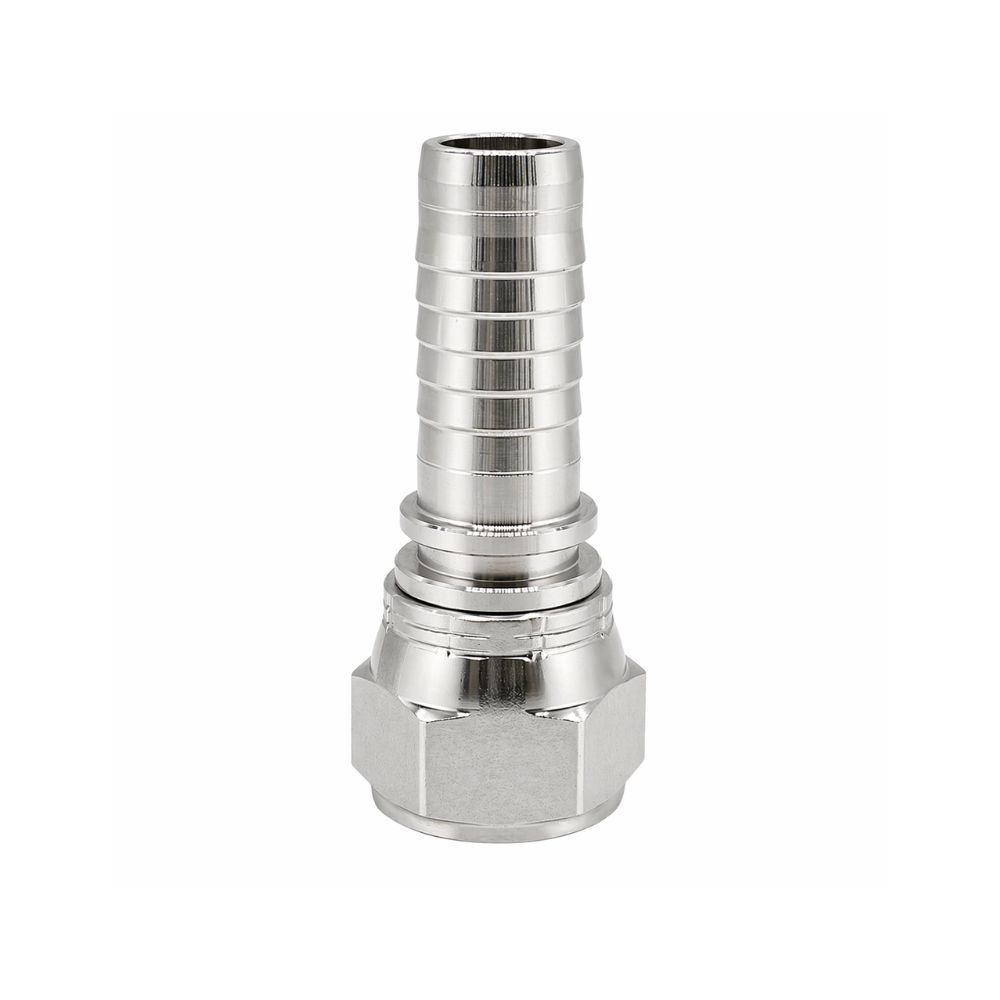

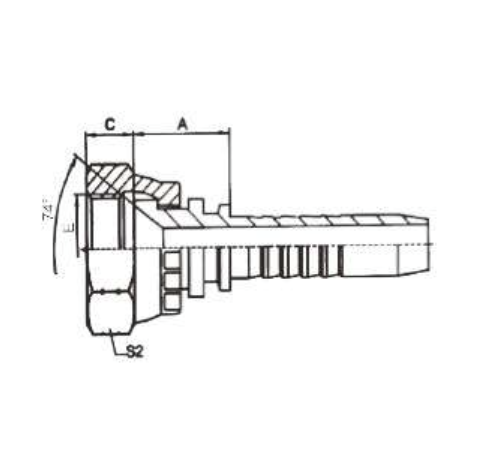

Stainless Steel JIC Female Straight Hose Tail Barb 316
These two piece crimp on hose tails are high quality 316 stainless. You will require a swaging machine to fit these to hose. Most commonly used with Thermoplastic hydraulic hose in marine environments.
| JIC/UNO THREAD ID CHART | ||||||
| Male Thread OD & Pitch | DASH SIZE | Male Thread OD | Female Thread OD | TUBE SIZE | ||
| inch – TPI | mm | inch | mm | inch | inch | |
| 5/16 – 24 UNF | -05 | 7,9 | 0.31 | 6,9 | 0.27 | 1/8 |
| 3/8 – 24 UNF | -06 | 9,5 | 0.38 | 8,5 | 0.33 | 3/16 |
| 7/16 – 20 UNF | -07 | 11,1 | 0.44 | 9,9 | 0.39 | 1/4 |
| 1/2 – 20 UNF | -08 | 12,7 | 0.50 | 11,4 | 0.45 | 5/16 |
| 9/16 – 18 UNF | -09 | 14,3 | 0.56 | 13,0 | 0.51 | 3/8 |
| 3/4 – 16 UNF | -12 | 19,1 | 0.75 | 17,5 | 0.69 | 1/2 |
| 7/8 – 14 UNF | -14 | 22,2 | 0.88 | 20,3 | 0.80 | 5/8 |
| 1.1/16 – 12 UNF | -17 | 27,0 | 1.06 | 24,9 | 0.98 | 3/4 |
| 1.3/16 – 12 UNF | -19 | 30,2 | 1.19 | 28,2 | 1.11 | 7/8 |
| 1.5/16 – 12 UNF | -21 | 33,3 | 1.31 | 31,2 | 1.23 | 1 |
| 1.5/8 – 12 UNF | -26 | 41,3 | 1.63 | 39,1 | 1.54 | 1.1/4 |
| 1.7/8 – 12 UNF | -30 | 47,6 | 1.88 | 45,5 | 1.79 | 1.1/2 |
| 2.1/2 – 12 UNF | -40 | 63,5 | 2.50 | 61,5 | 2.42 | 2 |
Please send us a message for any questions you may have.
For Thread ID Chart please send us a message and we will send to you
Tax invoices are supplied with every purchase
Emails will be answered within normal business hours (ie: 8.30am - 5.00pm M-F)
sales@mhfgc.com.au
Australia +61 7 55631982
It is our desire to always have every listed item actively in stock. Occasionally (but very seldom) due to high demand, short supply or human error we may be momentarily out of stock on an item.
If this happens you will be notified and given the option to either cancel for a full refund or wait for the part to come in (typically 3-14 days)
