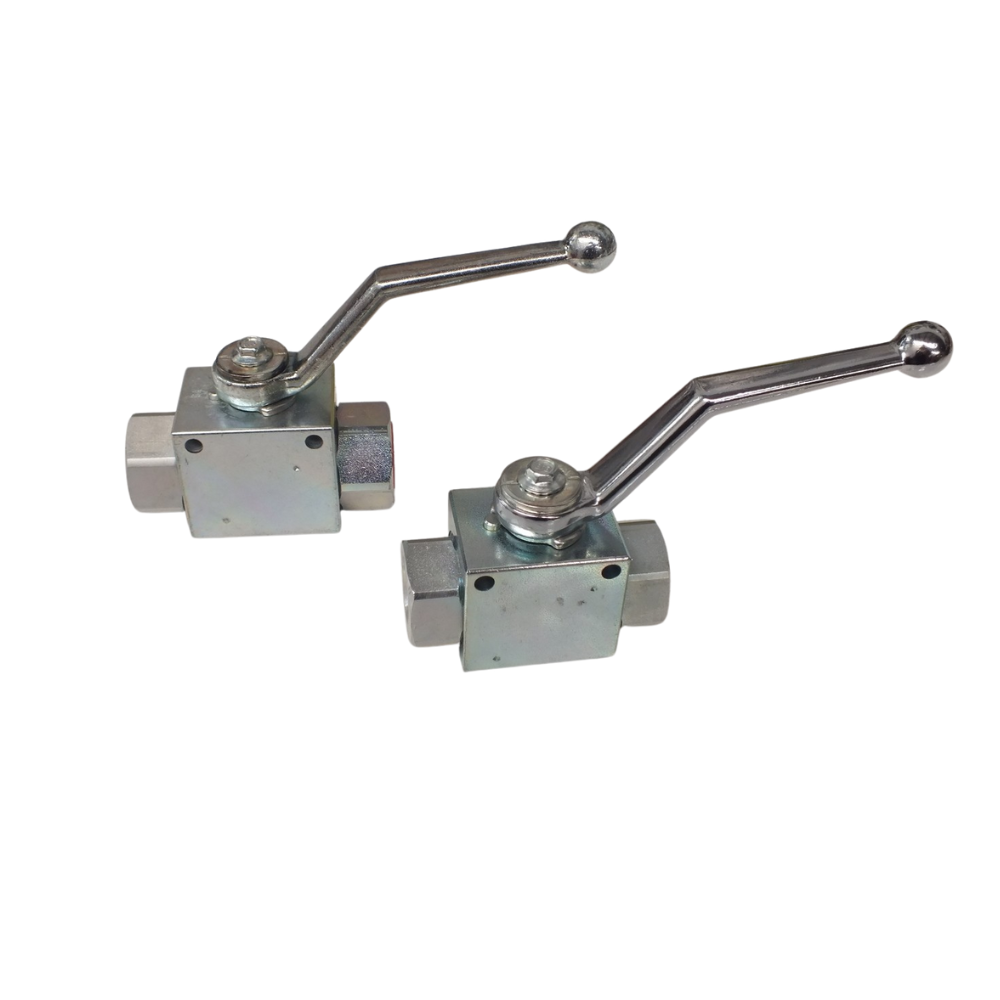

High Pressure 2 Way Steel Ball Valve,
with BSPP Female Ports Made in Italy.

Pressure Rating = 500 bar (7350 PSI)

Size = 1/4 , 3/8 or 1/2 inch Full Bore

Flow = 1/4" = 25 Lt/min ; 3/8" = 35 Lt/Min, 1/2" = 60 Lt/Min

Ports = 2 x BSPP Female.

Materials of Construction

Body = Zinc Plated Steel

Ball = Hard Chrome Plated Steel

Valve Seats = Machined Delrin

Seals = Viton.

Handle = Steel

This is a Quarter Turn type valve and uses a solid, perforated pivoting ball to
control the flow of most liquids including Oil Water or Fuel through it.

Ball valve is Open when the ball's hole is in line with the flow and closed
when it is pivoted 90-degrees by the valve handle.

The valve's handle will lie flat and in line with the flow when open, and is perpendicular
(at 90 °) to it when closed, this design makes it very easy to tell visually
when the valve is open or closed.

These Ball valves are durable, reliable, and continue to perform well after
many cycles, they will continue to close securely even after long periods of
disuse.

These qualities make them an excellent choice for shutoff flow control
applications.

They are not designed for fine control or throttling applications.

Please see or search for our Needle Flow Control Valves for this type of
application.
