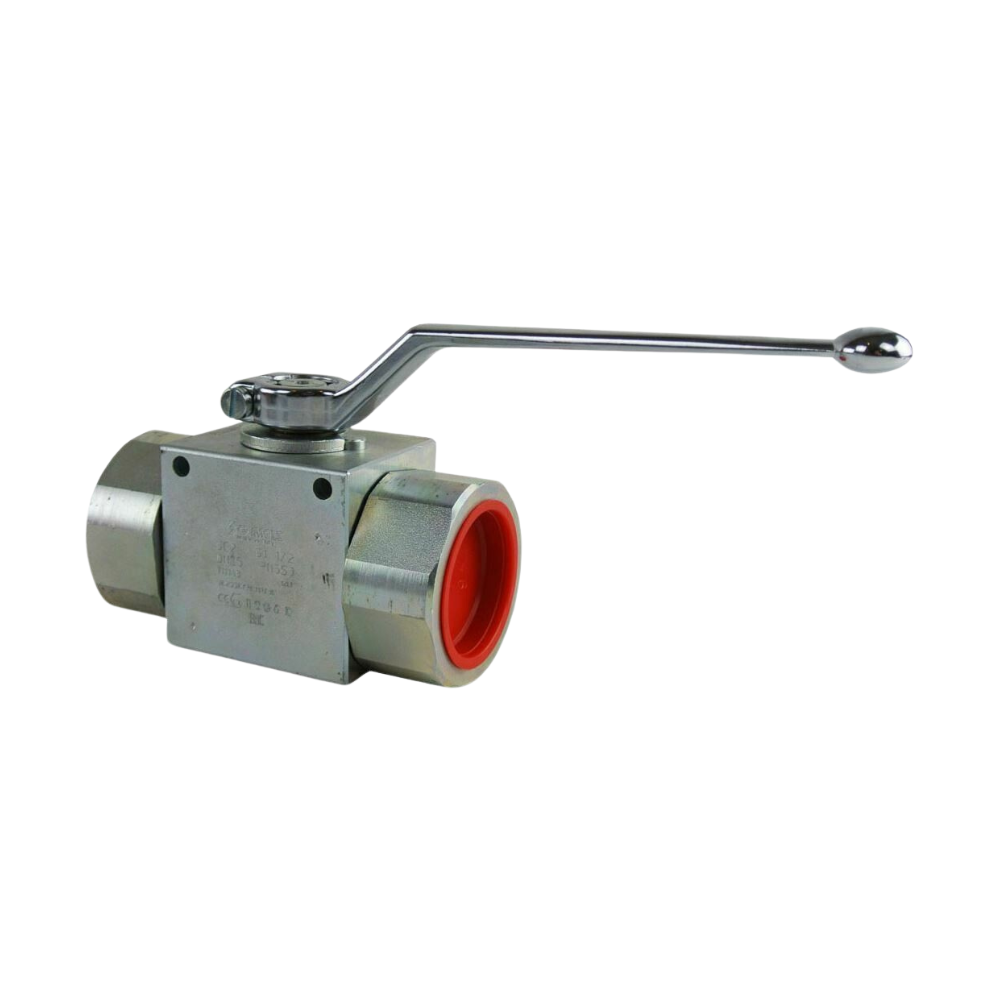

High Pressure 2 Port Hydraulic Ball Valve / Isolator Valve With Hard Chrome Steel Ball and Carbon Steel Body.
Pressures from 315 to 400 bar, Available in Sizes from 3/4" nominal bore to 1-1/2" Nominal bore.

Your choice of 3/4",1", 1-1/4", or 1-1/2" Inside Diameter 2 Way Steel Ball Valve, with BSPP Female Ports.

The valve uses a perforated hard chrome-plated steel ball which when turned through 90 ° (1/4 turn) will allow or stop the flow of Liquids or Gases. The valve's handle is in line with the flow when open, and at 90° when closed, this design makes it simple to know at a glance if the valve is open or closed.

These Ball valves are durable, and reliable, and continue to perform well after many cycles, they will continue to close without leaking even after long periods of non use. These qualities make them an excellent choice for shutoff flow control applications.

Please note, ball Valves are not designed for fine control or throttling applications.
Please see link below or search our Needle Flow Control Valves for this type of application.

Hydraulic-Oil-Flow-Control-Throttle-Shutoff-Valve-BSPP-Ports-400Bar-6000-PSI

Quality item made in Italy.

• Flow for 3/4" = 80 Lt/min, pressure rated to 400 bar (5880 PSI)
• Flow for 1" = 150 Lt/min, pressure rated to 400 bar (5880 PSI)
• Flow for 1-1/4 = 150 Lt/min, pressure rated to 315 bar (4670 PSI)
• Flow for 1-1/2" = 150 Lt/min, pressure rated to 315 bar (4670 PSI)
• Ports = 2 x BSPP Female.

Materials of Construction

• Body = Zinc Plated Carbon Steel
• Ball = Hard Chrome Plated Steel
• Valve Seats = Machined Delrin
• Seals = Viton.
• Handle: Zinc Alloy
• Orings: NBR

• Ball Seals: POM (Delrin)

• Working Temperature Range: -20°C to +120°C

• Plating: Zinc Plating Cr3 Silver

• Mounting holes are standard

• Email: sales@hydraulic.online

Phone: 07 5563 1982
Hours: 8 am to 5 pm Monday - Friday, excluding public holidays
If you have any questions please don’t hesitate to contact us
Best regards,
Hydraulic.Online

Improper Selection, Installation, Implementation, And/Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
