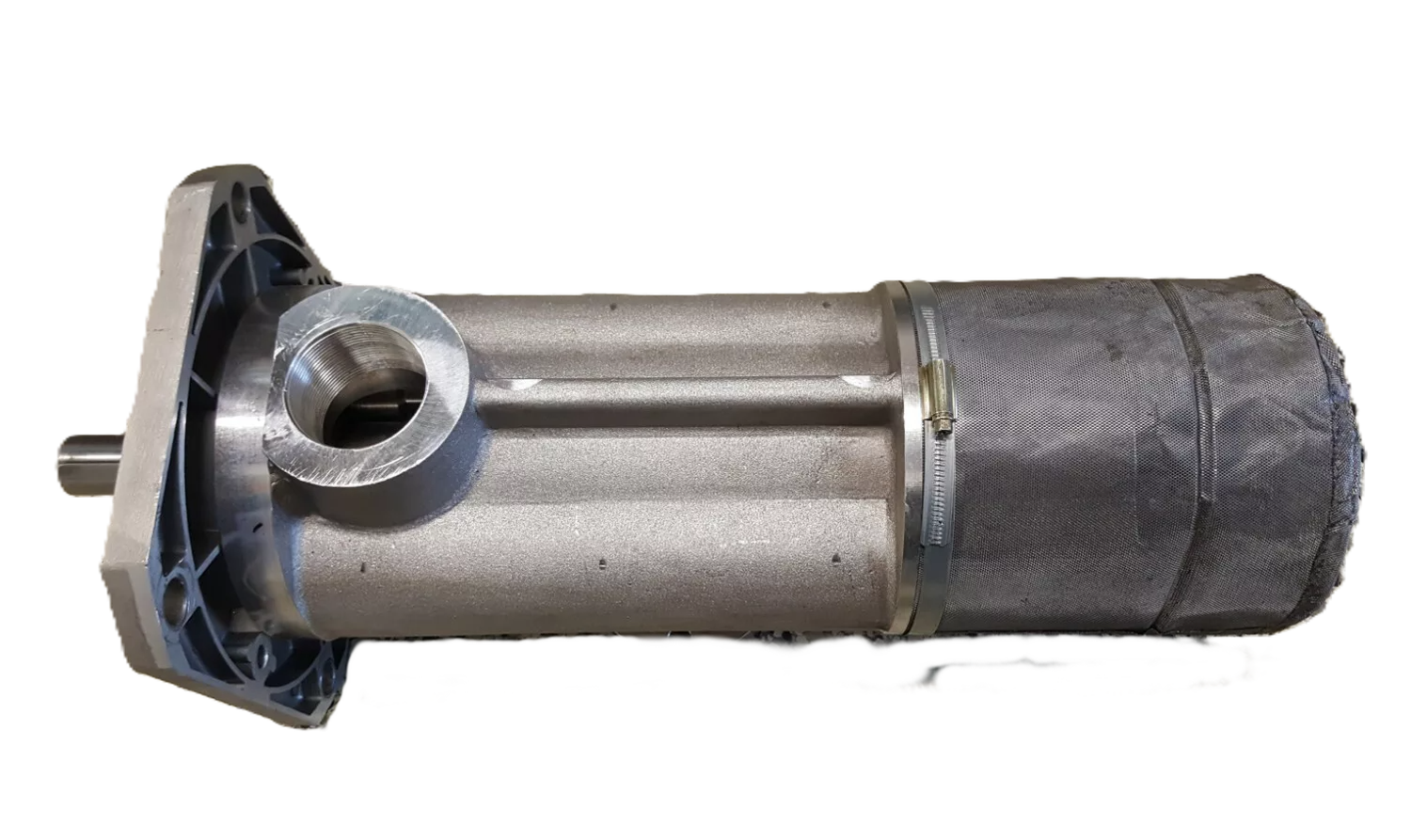

Made in Italy this is a Quality Italian Made High Flow medium pressure (740 PSI) Hydraulic Screw Pump.

Designed to flow between 120 to 720 liters per minute: (30 to 180 US GPM) at up to 50 bar (720 psi) pressure.

Hydraulic screw pumps are designed to be very quiet in operation and thus ideal for passenger and goods lift applications or to quietly transfer or move large volumes of liquids.

This pump will transfer up to 10,800 gallons or (43,000 liters per hour) .

Removed from a Equipment / Goods Lift: as it was moving the lift too fast for the new owners requirements and was drawing way too power 55 KW (90 HP). You can use lower power and speed to reduce flow down to 120 Liters per minute (please see below for power/speed/flow requirements.

Please Note this is a used pump but in great Condition

email us at sales@mhfgc.com.au

or phone us on +61 7 5563 1982

Specifications:

• Input speeds recommended 2, 4 or 6 pole motor 500 to 2750 RPM .
• Flow 240 cc per revolution or
• 120 liters/min (30 Gal/min) at 500 RPM = 1800 Gallons per Hour
• 720 liters/min (180 Gal/min) at 3000 RPM = 10800 Gallons per hour
• Motor Power requirements BASED ON FLOW AND PUMP OUTLET PRESSURE

• 5 Bar = 9 KW (75 PSI = 12 HP)
• 10 Bar = 15 KW (150 PSI = 20 HP)
• 20 Bar = 29 KW (300 PSI = 40 HP)
• 30 Bar = 42 KW (440 PSI = 56 HP)
• 40 Bar = 55 KW (590 PSI = 74 HP)
• 50 Bar = 66 KW (740 PSI = 88 HP)

• Screw pump for industrial applications with shaft seal, low pressure.
• Mounting flange, 4 holes 18 mm diameter equally spaced on 261 mm Pitch Circle Diameter.
• Input shaft size 32 mm diameter with 10 mm key.
• Drive Shaft length 55 mm
• Pump location Boss 220 mm diameter 5 mm high.
• Overall length = (mounting flange to end of strainer 510 mm)
• Over all weight 27 Kg (60 pounds)
• Noise 52 - 68 dba (2750 rev/min hydraulic oil)
• Body material = Aluminium Alloy
• Screws = C25 Steel for the main screw, Cast Iron for the lateral screws,
• Ambient operating Temperature -20 + 60 °C
• Medium Temperature -20 bis +180°C dependent on the seals material.
• Seals standard Viton
• Filtration recommended on NAS1638 class 10 or ISO 4406-19/16 filtration 25>= 75
• Maintenance requirements None
• Pipe connections 2" BSP screw thread.
• Mounting position, In any orientation
• Drive to be exempt from axial and radial shaft stresses
• Rotation = clockwise, from shaft’s view
• Revolution design speed 500 to 3600 rev/min
• Rate of delivery 660 l/min 165 gal/min (at 2750 rev/min with 2 pole motor.)
• Pressures Constant = 40 Bar, Pressure Peek = 50 bar
• Inlet pressures min. 0,7 bar absolute, Max 3 bar

HLP oil according to DIN 51524 part 1+2 biodegradable mediums HETG+HEPTG*HEE synthesized fluids and emulsions

HFA water-oil-emulsions min. 5% oil contingent HFB water-oil-emulsions 50% oil contingent

HFC water glycol, water contingent max. 35 - 55% HFD phosphaticaly ester Lubrication oils with high viscosity , cavitation or air contingent

synthesized fluids MIL-H, Skydrol Viscosity 4 - 2000 mm2 /s (attend options S1-S4 + SN)
