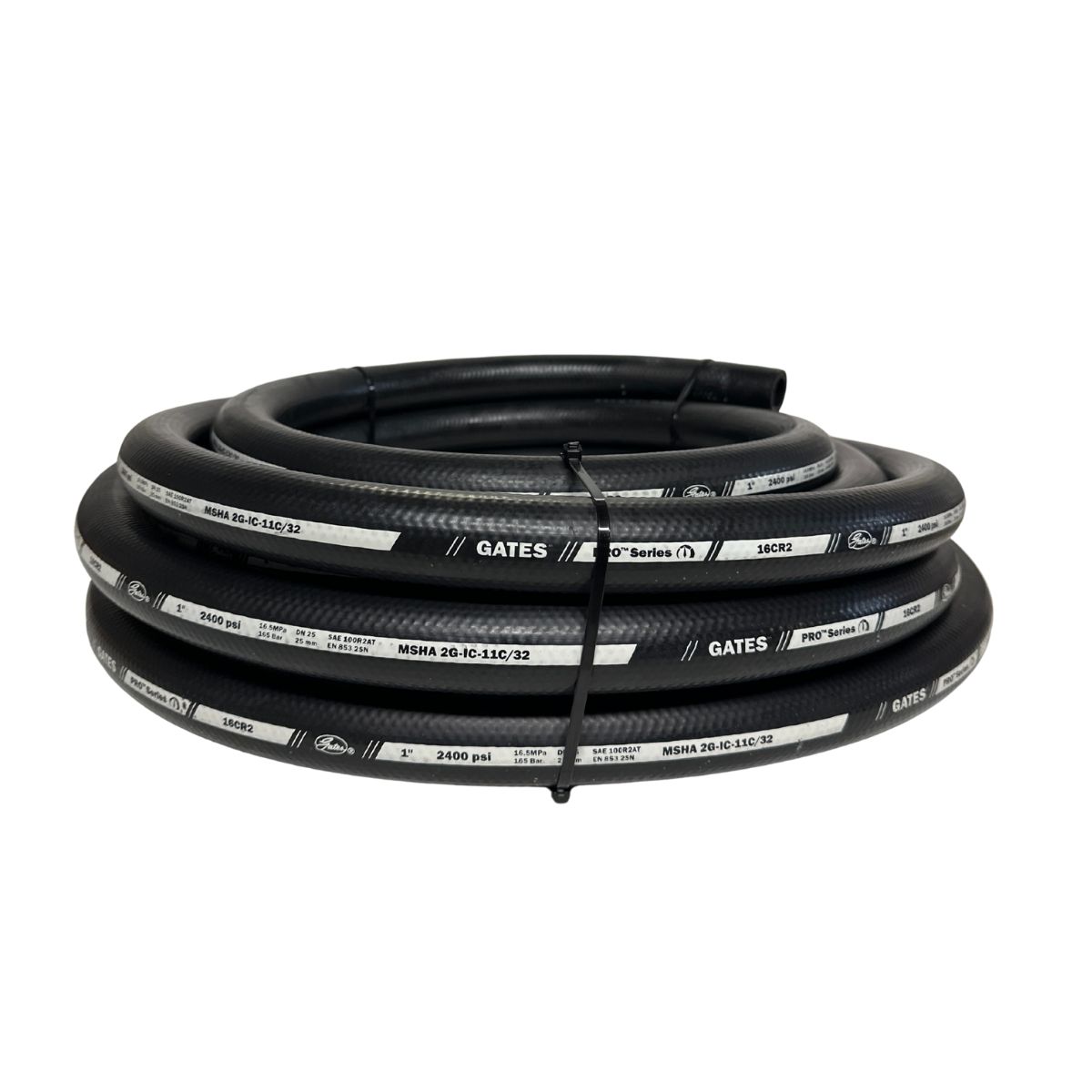

10- 20m Coilsor 50-meter reel of GATES® 16CR2 1" ID Hydraulic Hose with a working pressure of 165 bar (2,400 psi)
Flame Resistant Smooth outer Cover, Two Wire Construction with a flexible 300 mm Bend radius.

Available in 10 and 20m coils or 50m reels.

This is a premium tough cover hose, that is also flexible. It suits either crimped ends or our field fit reusables, both also available for sale on this web store.

Gates 16CR2 is a 1" bore SAE 100R2 AT– 16 NON SKIVE HOSE Two Wire

This is a premium hose made to meet or exceed SAE 100R2AT (Society of Automotive Engineers). and Euro Standard, DIN EN 853 2SN

Click to view GATES® CR2 Pro Series Hydraulic Hose Official Spec Sheet

Specifications:

Construction: Synthetic rubber inner tube with one layer of braided high tensile steel wire reinforcement and an oil, Ozone, weather, and abrasion-resistant synthetic rubber outer cover.

Application: High-pressure service with petroleum base hydraulic fluids, water, Air, water-glycol, hot oil, grease, lubricants, crude, and fuel oils. For air applications above 100psi, the cover should be pin pricked

Need other hose sizes and or field fit reusable hose fittings?

Buy it now online All GATES CR1 and CR2 hydraulic Hoses in One Place

Hose Specifications

• Pressure Range Working Pressure: 165 Bar (2,400 PSI)
• Burst Pressure: 9,600 PSI (Minimum)
• Range of Temperature -40⁰C to + 100⁰C
• Minimum Bend Radius 300 mm
• Weight 1.26 KG / M
