Gates GlobalSpiral Caterpillar Flange Multispiral Hose Tail
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Ultra High Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/SAE Code 61 & 62 Flange Multispiral Hose Tails - Gates
Product Details
Brand: Gates

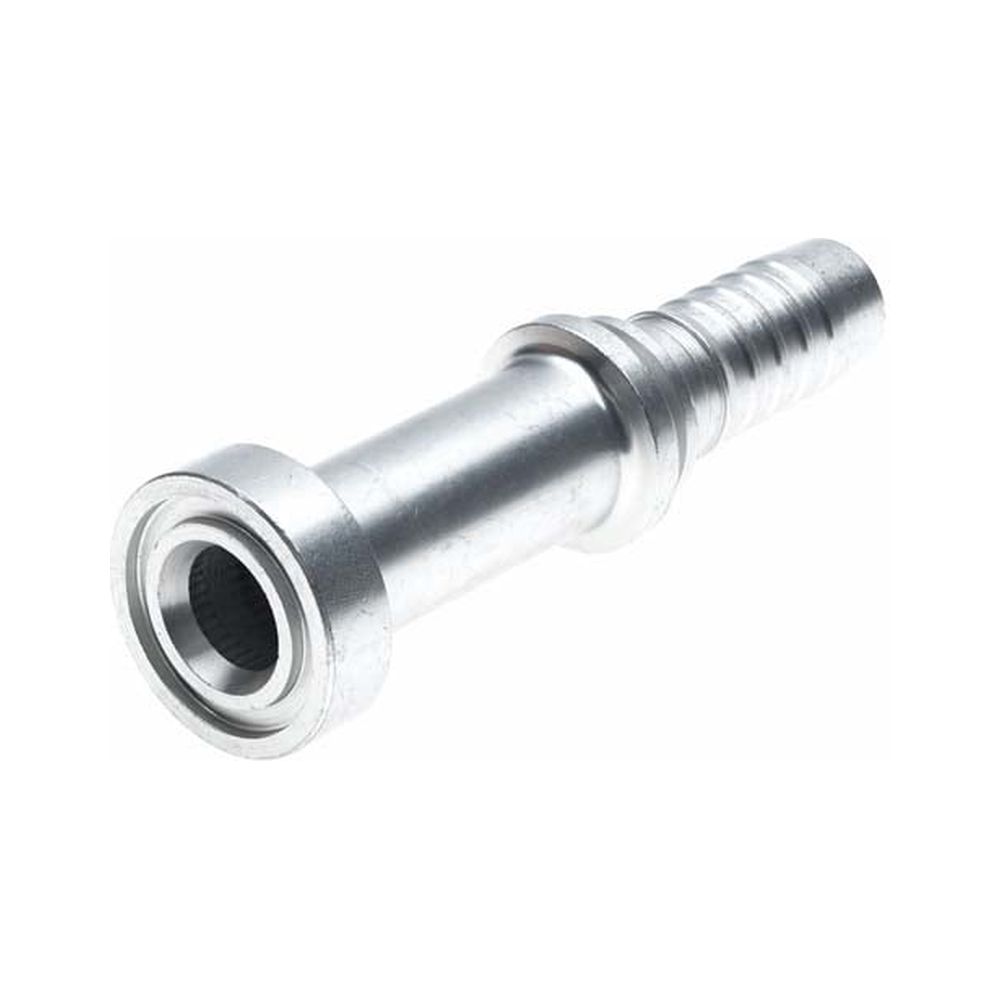

Gates GlobalSpiral Caterpillar Flange Multispiral Hose Tail
Genuine Gates GlobalSpiral™ caterpillar flange multispiral hydraulic hose fitting, engineered for 4 & 6 spiral-wire hose (SAE 100R12 / R13 / R15, EN856 4SP / 4SH) — suits Gates EFG4K, EFG5K, EFG6K, M4K & M6K spiral hose. Supplied as a matched Two-Piece stem + Gates ferrule set.
Built for excavators, dozers, drill rigs and high-pressure mining & construction hydraulics. Crimp to genuine Gates specifications for a certified, leak-free connection — crimp charts available via the download link below.
Specifications
| Size | Type | Our SKU | Gates Part No | Gates Code | Barcode | L (mm) | Cut-off (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| (12) 3/4" x (12) 3/4" | 2-Pc | HTM-CAT-1212-GA | 12GS-12FLC | G20400-1212 | 72053399486 | 145 | 94 | 1.26 |
| (16) 1" x (16) 1" | 2-Pc | HTM-CAT-1616-GA | 16GS-16FLC | G20400-1616 | 72053297294 | 154.9 | 98.3 | 1.74 |
| (16) 1" x (20) 1-1/4" | 2-Pc | HTM-CAT-1620-GA | 16GS-20FLC | G20400-1620 | 72053297515 | 154.9 | 98.3 | 1.85 |
| (20) 1-1/4" x (20) 1-1/4" | 2-Pc | HTM-CAT-2020-GA | 20GS-20FLC | G20400-2020 | 72053454673 | 186.9 | 115.8 | 3.14 |
Download Gates crimp dimensions
