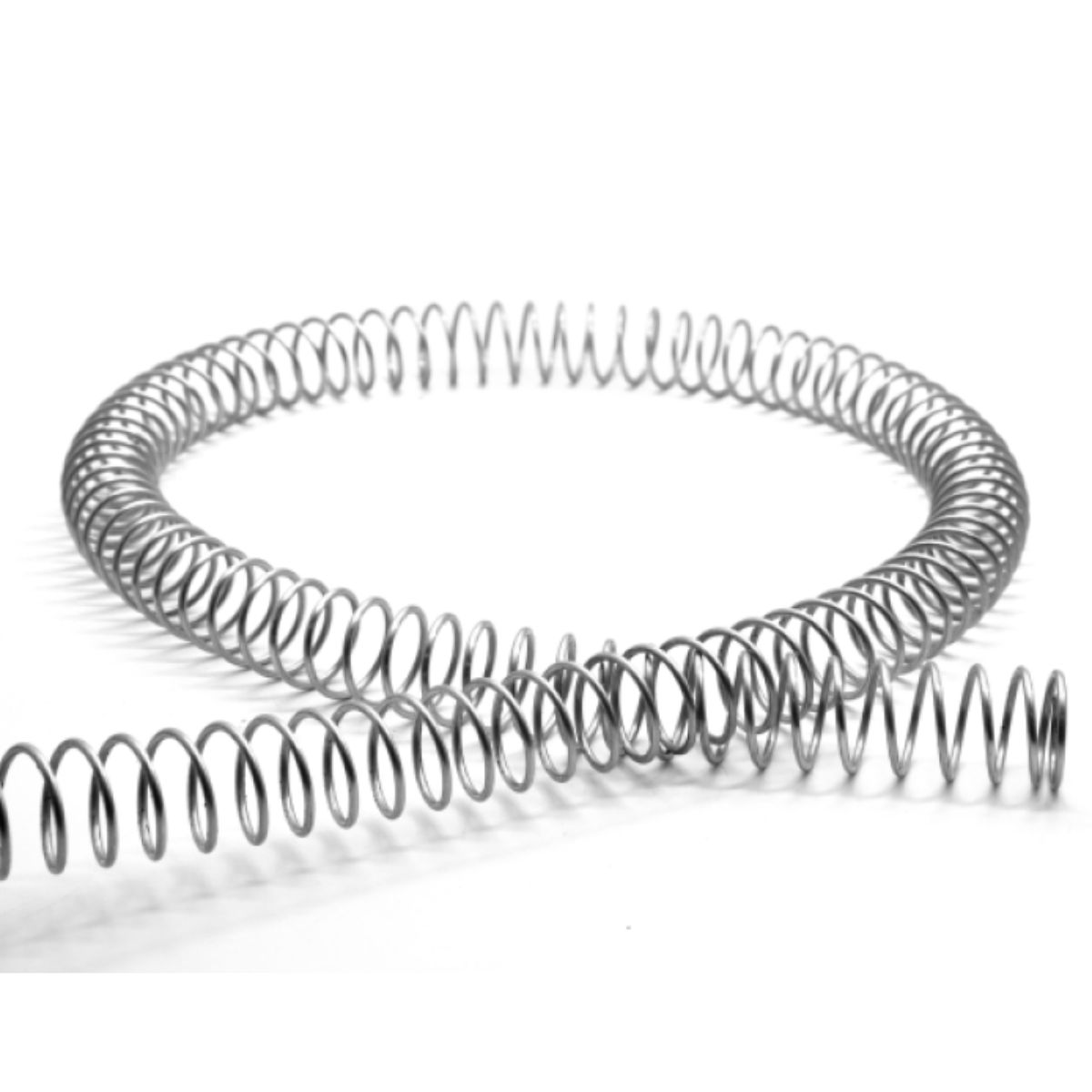

Galvanised Steel Hydraulic Hose Spring Guard 6.4mm-75mm
Product Details
Weight: 5.00 kg
Spring Guard – Hose Protection
Our Galvanised Hydraulic Hose Spring Guard range provides a simple and cost-effective solution to protect hydraulic hoses, tubing, and cables from external abrasion and accidental damage.
Manufactured from high-quality galvanised steel, these guards deliver exceptional wear resistance and anti-crush durability, ensuring long-lasting performance in demanding environments. Each coil is precision-engineered with consistent wire diameter and spring pitch for reliable fitment.
Key Features
- Protects hoses, tubing, and cables from external abrasion and impact
- Manufactured from galvanised steel for strength and durability
- Anti-crush properties for added safety and hose longevity
- Supplied in convenient roll lengths for easy cutting and application
- Available in a wide range of internal diameters (6.4mm – 75mm) to suit various hose sizes
Applications
- Hydraulic systems
- Industrial machinery
- Construction and earthmoving equipment
- Agricultural machinery
- Automotive and transport industries
Whether you’re protecting a single hose or managing a complete hydraulic system, our Spring Guard offers reliable and cost-effective protection to extend hose life and minimise downtime.
Specifications:
| Product Code | Nominal I.D | Actual I.D | Wire Diameter | Spring Pitch | Material | Length |
| SG-6.4 | 6.4mm | 6.4mm +/- 0.2mm | 1.8mm +/- 0.02mm | 4.0mm +/- 0.2mm | Galvanised steel | 6 metre roll |
| SG-17 | 17mm | 17mm +/- 0.2mm | 1.8mm +/- 0.02mm | 4.0mm +/- 0.2mm | Galvanised steel | 6 metre roll |
| SG-21 | 21mm | 21mm +/- 0.2mm | 1.8mm +/- 0.02mm | 4.0mm +/- 0.2mm | Galvanised steel | 6 metre roll |
| SG-23 | 23mm | 23mm +/- 0.2mm | 1.8mm +/- 0.02mm | 4.0mm +/- 0.2mm | Galvanised steel | 6 metre roll |
| SG-27 | 27mm | 27mm +/- 0.2mm | 1.8mm +/- 0.02mm | 4.0mm +/- 0.2mm | Galvanised steel | 6 metre roll |
| SG-31 | 31mm | 31mm +/- 0.2mm | 2.0mm +/- 0.02mm | 4.0mm +/- 0.2mm | Galvanised steel | 6 metre roll |
| SG-34 | 34mm | 34mm +/- 0.2mm | 2.0mm +/- 0.02mm | 4.0mm +/- 0.2mm | Galvanised steel | 6 metre roll |
| SG-41 | 41mm | 41mm +/- 0.2mm | 2.5mm +/- 0.02mm | 8.0mm +/- 0.2mm | Galvanised steel | 6 metre roll |
| SG-49 | 49mm | 49mm +/- 0.2mm | 2.5mm +/- 0.02mm | 8.0mm +/- 0.2mm | Galvanised steel | 6 metre roll |
| SG-56 | 56mm | 56mm +/- 0.2mm | 3.0mm +/- 0.02mm | 8.0mm +/- 0.2mm | Galvanised steel | 3 metre roll |
| SG-61 | 61mm | 61mm +/- 0.2mm | 3.0mm +/- 0.02mm | 8.0mm +/- 0.2mm | Galvanised steel | 6 metre roll |
| SG-68 | 68mm | 68mm +/- 0.2mm | 3.0mm +/- 0.02mm | 8.0mm +/- 0.2mm | Galvanised steel | 6 metre roll |
| SG-75 | 75mm | 75mm +/- 0.2mm | 3.0mm +/- 0.02mm | 8.0mm +/- 0.2mm | Galvanised steel | 6 metre roll |
Recomended Spring Guard for Common Hydraulic Hoses and Sizes (PLEASE DOUBLE CHECK AS HOSE OD CHANGES)
| Dash Size | Hose Size and Construction | Typical Hose OD (mm) | Recommended Spring Guard I.D. (mm) | Part Code | |
|
R1AT 1 Wire Hydraulic Hose
|
-4 | 1-wire - 1/4" | 12.5 | 17mm | SG-17 |
| -6 | 1-wire - 3/8" | 15.5 | 17mm | SG-17 | |
| -8 | 1-wire - 1/2" | 18.9 | 21mm | SG-21 | |
| -10 | 1-wire - 5/8" | 22.2 | 27mm | SG-27 | |
| -12 | 1-wire - 3/4" | 26.4 | 31mm | SG-31 | |
| -16 | 1-wire - 1" | 33.3 | 41mm | SG-41 | |
| -20 | 1-wire - 1-1/4" | 39.7 | 41mm | SG-41 | |
| -24 | 1-wire - 1-1/2" | 47.6 | 49mm | SG-49 | |
| -32 | 1-wire - 2" | 63.5 | 68mm | SG-68 | |
|
R2AT 2 Wire Hydraulic Hose
|
-4 | 2-wire - 1/4" | 13.9 | 17mm | SG-17 |
| -6 | 2-wire - 3/8" | 17.7 | 21mm | SG-21 | |
| -8 | 2-wire - 1/2" | 21.5 | 23mm | SG-23 | |
| -10 | 2-wire - 5/8" | 24.6 | 27mm | SG-27 | |
| -12 | 2-wire - 3/4" | 28.6 | 31mm | SG-31 | |
| -16 | 2-wire - 1" | 36.5 | 41mm | SG-41 | |
| -20 | 2-wire - 1-1/4" | 46 | 49mm | SG-49 | |
| -24 | 2-wire - 1-1/2" | 53.8 | 56mm | SG-56 | |
| -32 | 2-wire - 2" | 67.5 | 75mm | SG-75 | |
|
100R12 4 Wire 4K Hydraulic Hose
|
-8 | 4-wire - 1/2" | 23.8 | 27mm | SG-27 |
| -10 | 4-wire - 5/8" | 27 | 31mm | SG-31 | |
| -12 | 4-wire - 3/4" | 31.8 | 34mm | SG-34 | |
| -16 | 4-wire - 1" | 41.3 | 49mm | SG-49 | |
| -20 | 4-wire - 1-1/4" | 53.5 | 56mm | SG-56 | |
| -24 | 4-wire - 1-1/2" | 61.9 | 68mm | SG-68 | |
| -32 | 4-wire - 2" | 78 | 75mm | SG-75 | |
|
100R15 Wire 6K Hydraulic Hose
|
-8 | 6-wire - 1/2" | 25.5 | 27mm | SG-27 |
| -10 | 6-wire - 5/8" | 26.6 | 31mm | SG-31 | |
| -12 | 6-wire - 3/4" | 30.6 | 41mm | SG-41 | |
| -16 | 6-wire - 1" | 37.8 | 49mm | SG-49 | |
| -20 | 6-wire - 1-1/4" | 58 | 61mm | SG-61 | |
| -24 | 6-wire - 1-1/2" | 57 | 61mm | SG-61 | |
| -32 | 6-wire - 2" | 70.5 | 75mm | SG-75 |
Email: click here to email us
Phone: 07 5563 1982 or 1300 1 HOSES
If you have any questions please don’t hesitate to contact us for further assistance,
Best regards,
Hydraulic.Online
Improper Selection, Installation, Implementation, And Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
