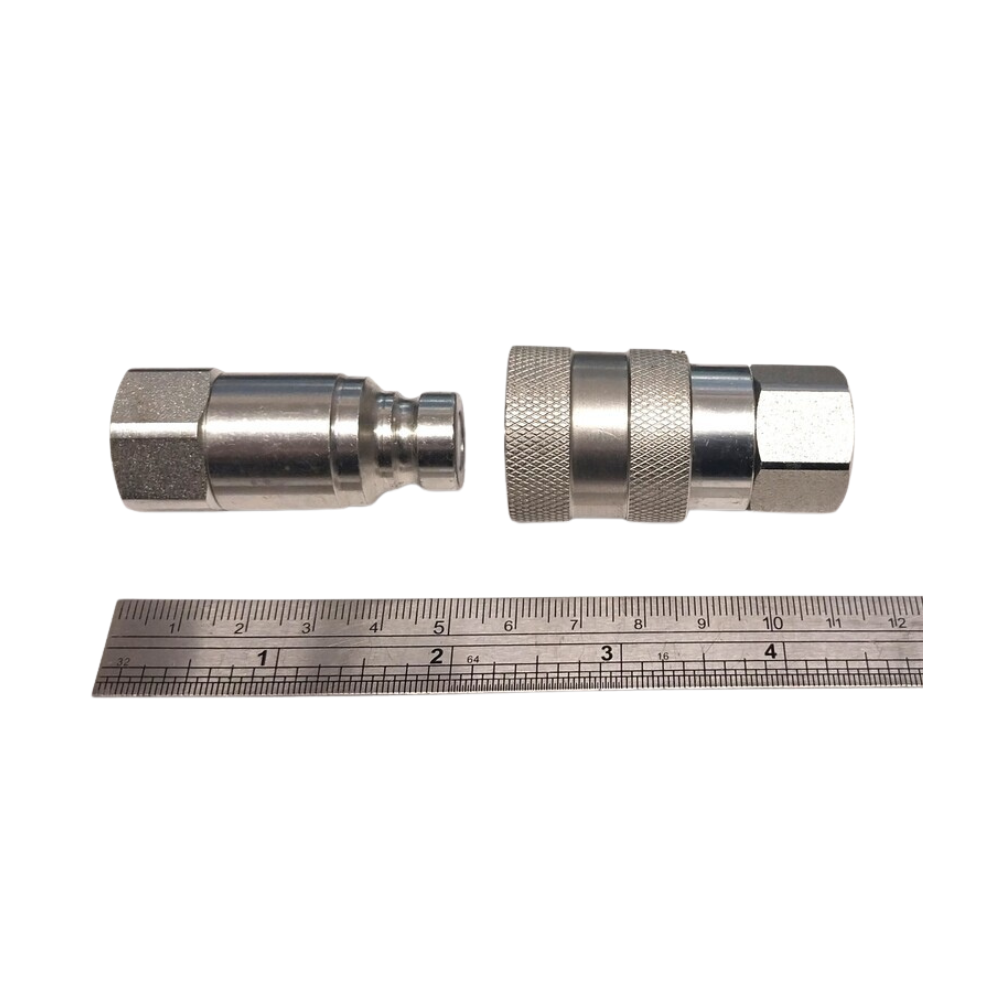

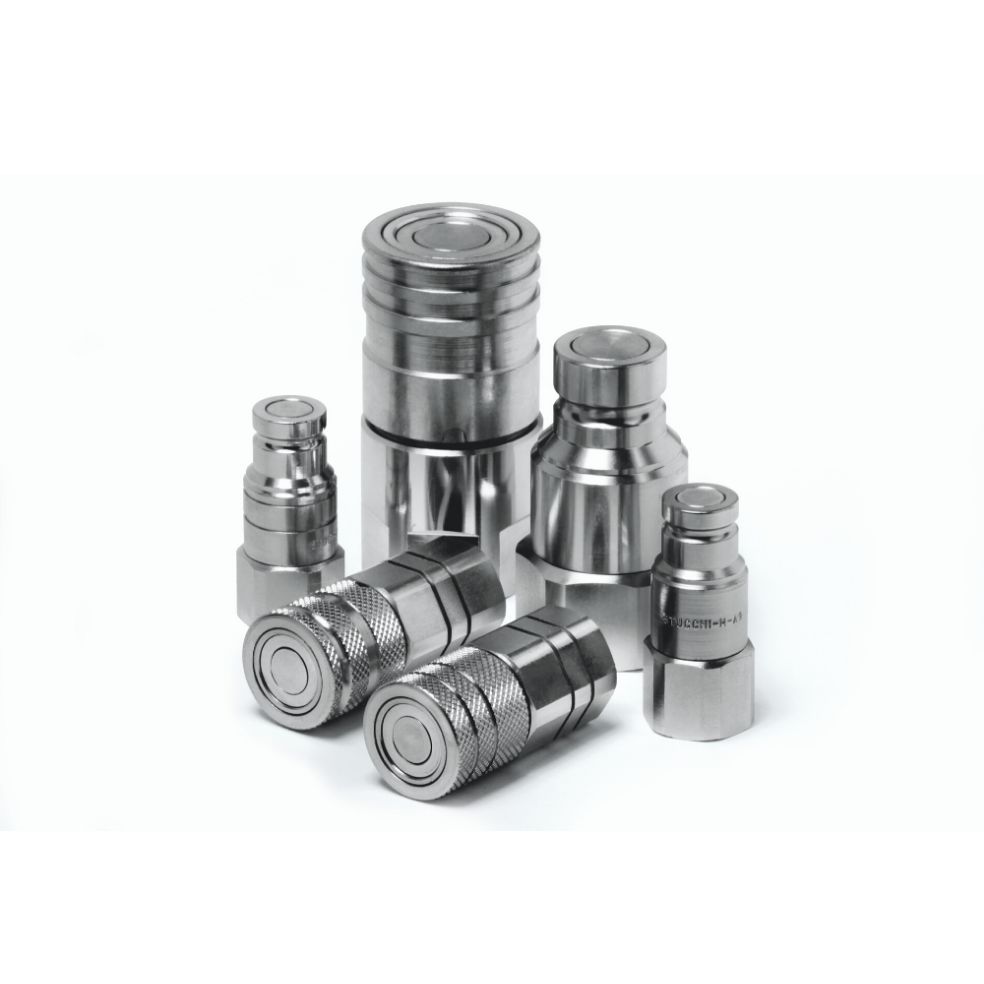

Flat Face dry break Hydraulic couplers are available in many sizes this is the small 1/4" inch version

Used on smaller or low oil flows (< 20 Lt / Min) Hydraulic machinery and equipment.

These 'Residual pressure, 1/4" inch couplers are some of the smallest Flat-face quick-connect couplers available.

The small compact design is ideal for low oil flow machinery with the requirement for dry break and Quick disconnect .

They have 1/4" BSPP Threads. It is easy to check compatibility.

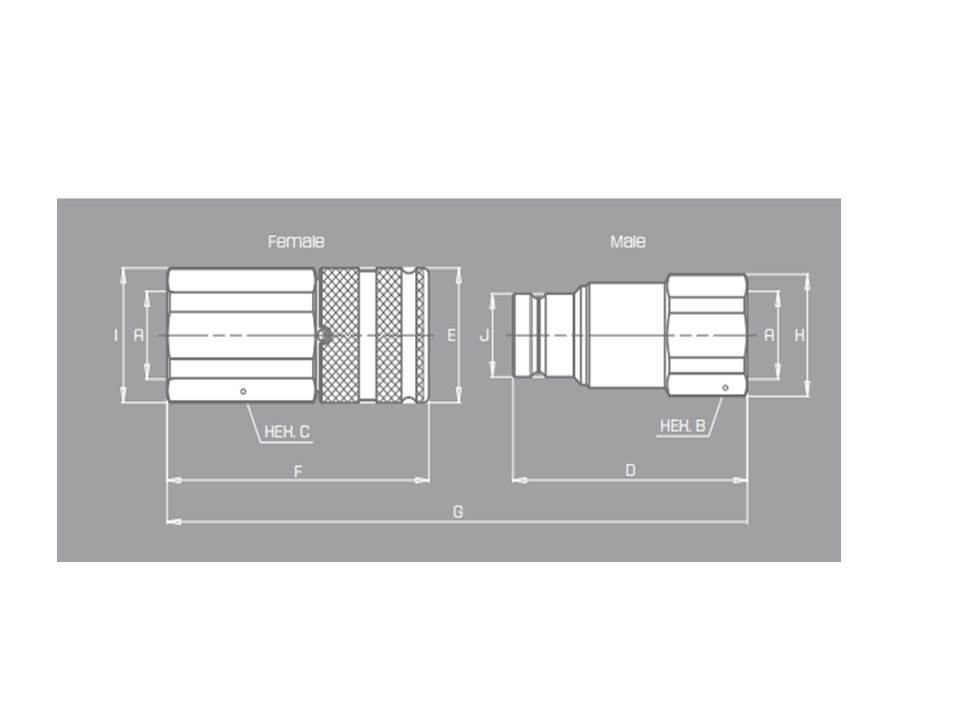

Please refer to our size charts in photos for correct sizing.

The best measurement to use is 'J' column.

Please note , this sale is ONLY for 1/4" x 1/4" couplers ,
the A7 dimension coupler in the chart.
If you need other sizes in the chart, please check our other listings or

Click here to see our full range of available sizes.

Phone us on 07 5563 1982

or email us at sales@mhfgc.com.au

This series of couplings are designed for use in and hydraulic circuits and
other applications involving high pressure pulses.
Construction plant, mobile equipment, general industrial, mining and agricultural.

These are not warranted if used for hydraulic hammers.
We recommend 'screw together ' couplers for Hammers.

These 1/4" flat face couplers are compatible with;

DNP PLT4, Stucchi FIRG/A Series, Faster 2FFI ,
Hansen QA, Ryco R110-06/08, Safeway FF49, Aeroquip FD89/FD49

The above price is for one pair, (one set which includes one male and one female coupler)
single male/female halves are available, please call or email.

Please refer to our size charts below for correct sizing.
The best measurement to use is 'J' column.

Threaded Connections

1/4" BSPP

Pressure drops less than 0.1 Bar @ 20 Litres / Minute

Operating Temperatures -20 to 100 degrees Celsius

Materials of Construction

Carbon steel body, Heat treated to increase hardness and corrosion resistance,
Nitrile seals. H Series couplings are Zinc plated.

Features

• Flat mating faces are easily wiped clean to prevent the ingress of contaminants.
• Improved flow path minimises the pressure drop.
• Non-spill design avoids fluid loss during connection and disconnection.
• No air intrusion during connection.
• Locking sleeve prevents accidental disconnection.
• Zinc nickel surface treatment and meets 200 hour salt spray tests.

Standard

This Series conforms to ISO 16028 (2006) in all respects

Connection / Disconnection Under Pressure
