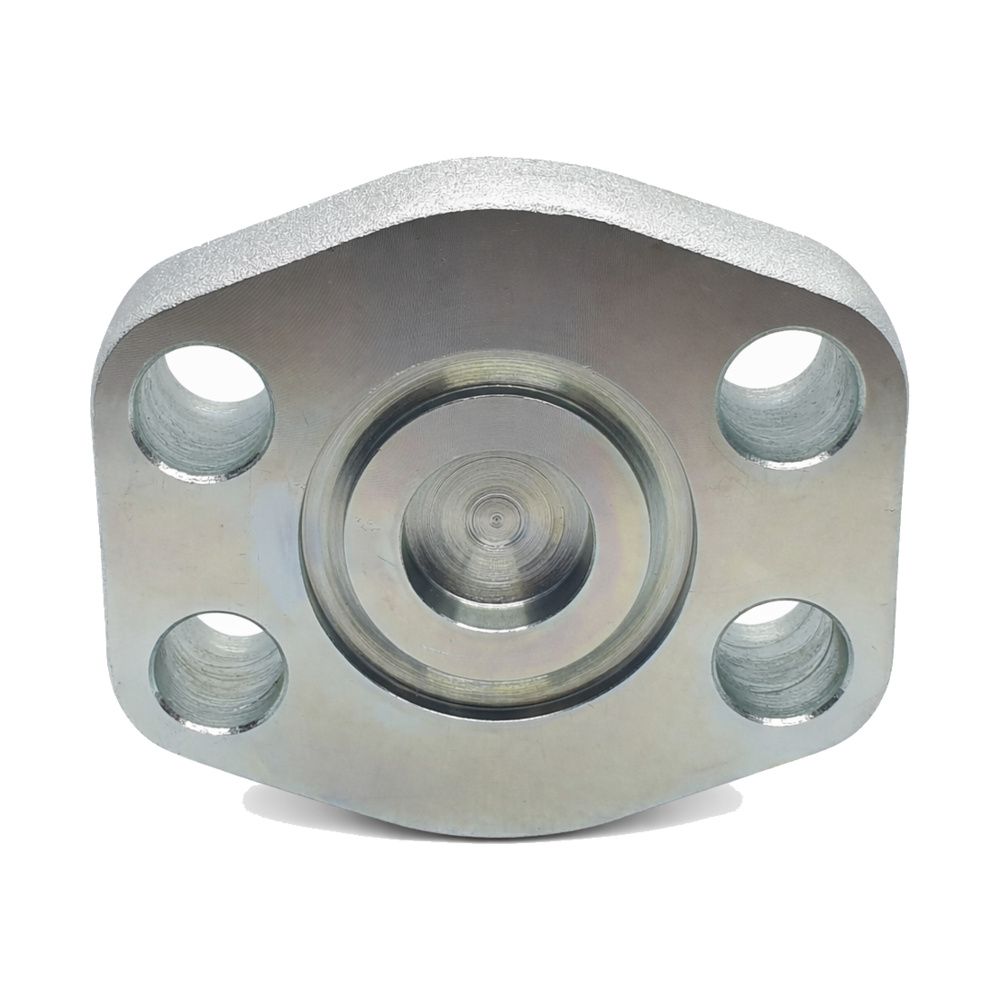

SAE Code 62 Flange Blanking Plates

Solid blanking plates for Code 62 high-pressure split-flange ports.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• SAE Code 62 Flange – SAE J518 Code 62 high-pressure split flange. It seals on a face O-ring and uses a heavier, tighter bolt pattern for high pressure.

How to Choose

• A plate blanks the port face; the split flange halves and four bolts clamp it.
• Code 62 is the higher pressure standard with a different bolt pattern and a thicker head than Code 61.
• Seals on the O-ring in the face.

Technicians Advice

Even, staged, cross-pattern tightening on all four bolts. At Code 62 pressures a cocked plate does not weep, it lets go, and a blanking plate leaving a live port is dangerous.

Where You’ll Find It

• SAE Code 62 Flange – High-pressure pump and motor ports on excavators and heavy plant.

Cross-Reference

• SAE Code 62 Flange – SAE J518 Code 62 / ISO 6162-2 high-pressure split flange. Heavier head and tighter bolt pattern than Code 61.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	Size	C	N	Material	Finish
F62-PLATE-12	3/4" Code 62	50.8mm	19mm	Mild steel	Plated finish
F62-PLATE-16	1" Code 62	57.2mm	24mm	Mild steel	Plated finish
F62-PLATE-20	1.1/4" Code 62	66.7mm	27mm	Mild steel	Plated finish
F62-PLATE-24	1.1/2" Code 62	79.4mm	30mm	Mild steel	Plated finish
F62-PLATE-32	2" Code 62	96.8mm	30mm	Mild steel	Plated finish

Key: C across corners, N thickness. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
