SAE Code 61 Flange Blanking Plates

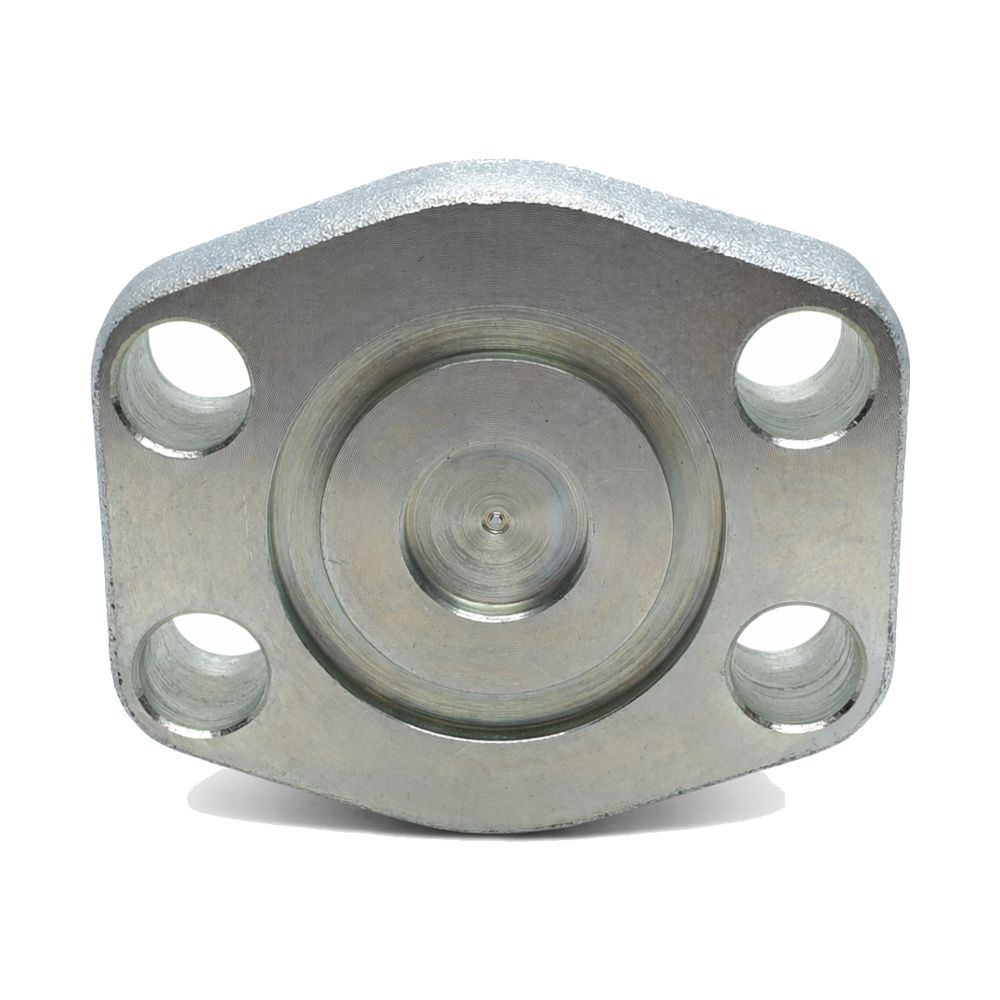

Solid blanking plates for Code 61 split-flange ports. Bolts on in place of a flange head to close the port off.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• SAE Code 61 Flange – SAE J518 Code 61 standard-pressure split flange. It seals on an O-ring captured in the flange head face, clamped by four bolts.

How to Choose

• A plate blanks the port face. The split flange halves and four bolts do the clamping.
• Code 61 and Code 62 are not interchangeable. Code 62 has a different bolt pattern.
• Seals on the O-ring in the face. Nothing on the bolts.

Technicians Advice

Pull the four bolts up evenly and in a cross pattern in stages. A plate cocked on one corner pinches the ring, and a blanked port that weeps is the one nobody thinks to check.

Where You’ll Find It

• SAE Code 61 Flange – Pump, motor and valve block ports from around 3/4 inch upward on US and Japanese built plant.

Cross-Reference

• SAE Code 61 Flange – SAE J518 Code 61 / ISO 6162-1 split flange. Also called a 4-bolt flange or standard-pressure flange.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	Size	C	N	Material	Finish
F61-PLATE-12	3/4" Code 61	47.6mm	16mm	Mild steel	Plated finish
F61-PLATE-16	1" Code 61	52.4mm	19mm	Mild steel	Plated finish
F61-PLATE-20	1.1/4" Code 61	58.7mm	19mm	Mild steel	Plated finish
F61-PLATE-24	1.1/2" Code 61	69.9mm	20mm	Mild steel	Plated finish
F61-PLATE-32	2" Code 61	77.8mm	20mm	Mild steel	Plated finish

Key: C across corners, N thickness. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
