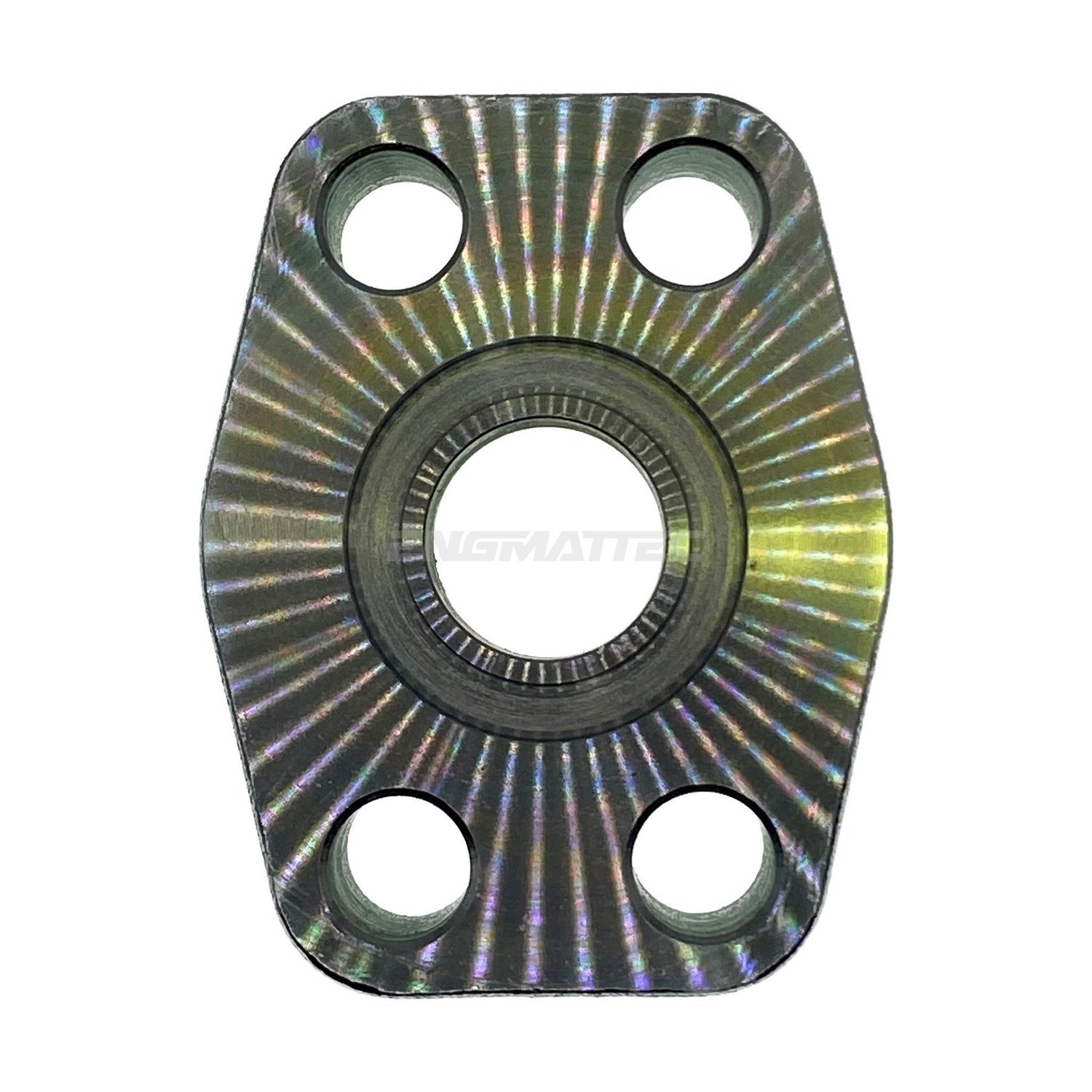

Flange Block BSP Parallel Female x Flange Code 62 Straight

Code 61 and 62 flange clamps, plates and hardware – the bolted connection for big flows and high pressures where threaded fittings run out of puff.

Ways to buy:

• Off the shelf – pick your size from the dropdown below and it’s on its way.
• Need a size or combination you can’t see? Call us – if it exists, we can get it.

Pick your size

What is in the box

One fitting as per your selection.

Specifications

How to choose

• Code 61 is the standard-pressure series, Code 62 the 6000 psi series – they do not interchange.
• Match the flange size to the port, not the hose – the flange head sets the pattern.
• Replace the O-ring every time the joint is opened.
• Not sure? Call us and we will confirm the size.

Technicians Advice

Flange joints live or die on even clamping: torque the bolts in a cross pattern in two or three stages, and never single-bolt a flange down to ‘get it started’ – a cocked flange head cuts the O-ring and you will chase that leak for a day. Seat the O-ring dry in its groove, keep the faces clean, and if a flange joint weeps, open it and inspect – more torque on a cut O-ring fixes nothing.

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
