Flange Block BSP Parallel Female x Code 62 Flange 90° Compact

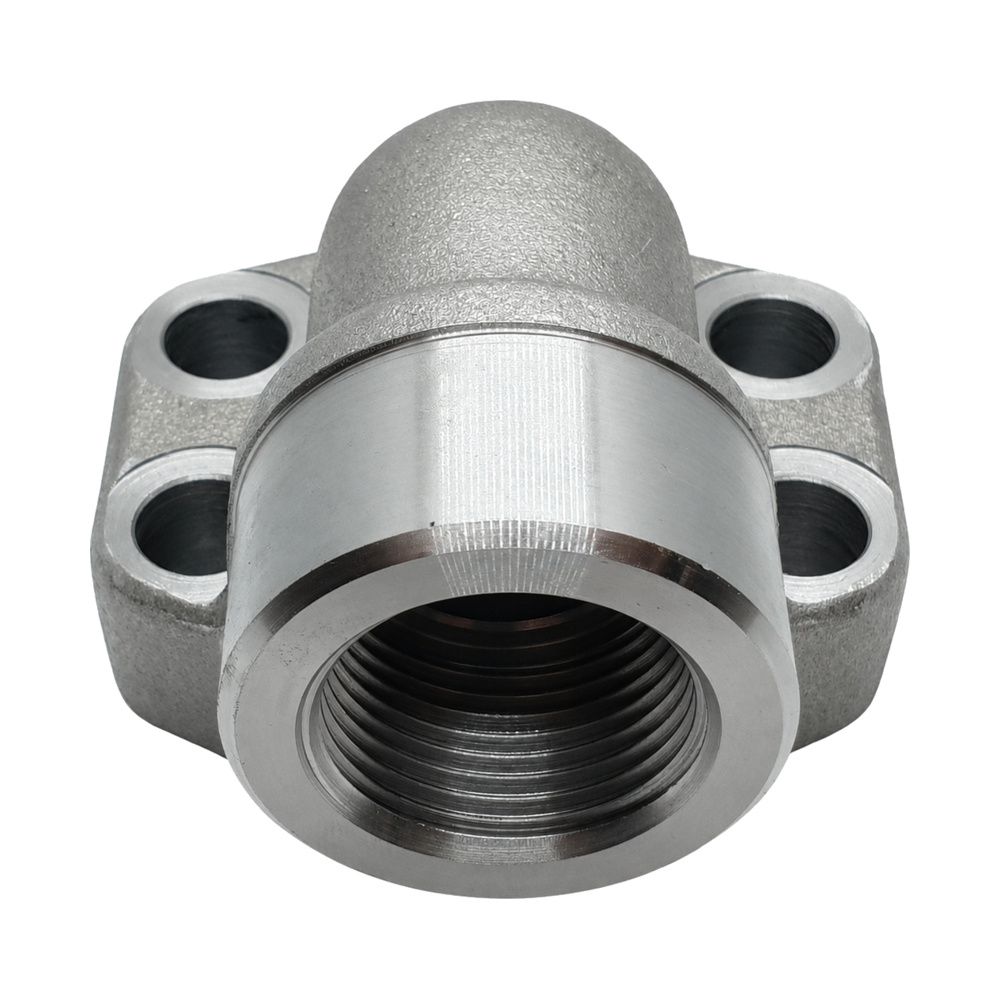

A BSP parallel female port on a Code 62 high-pressure flange block with a 90° turn.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Parallel Female – BSPP to ISO 228. It needs a bonded washer or a cone seat to seal, because a parallel thread cannot seal on itself.
• SAE Code 62 Flange – SAE J518 Code 62 high-pressure split flange. It seals on a face O-ring and uses a heavier, tighter bolt pattern for high pressure.

How to Choose

• The flange face seals on an O-ring clamped by four bolts. The BSPP port needs a washer or cone seat.
• Code 62 has a different bolt pattern and thicker head than Code 61. Do not mix them.
• The 90° is fixed. Check the orientation before bolting down.

Technicians Advice

Orientation first, then even staged tightening on all four bolts, then the hose. At Code 62 pressures getting the flange square matters more than anywhere else on the machine.

Where You’ll Find It

• BSP Parallel Female – Female side of BSPP manifolds, adaptor blocks and gauge assemblies on local equipment.
• SAE Code 62 Flange – High-pressure pump and motor ports on excavators and heavy plant.

Cross-Reference

• BSP Parallel Female – BSPP to ISO 228 / BS 2779, written G.
• SAE Code 62 Flange – SAE J518 Code 62 / ISO 6162-2 high-pressure split flange. Heavier head and tighter bolt pattern than Code 61.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
