Flange Block BSP Parallel Female x Code 61 Flange 90° Compact

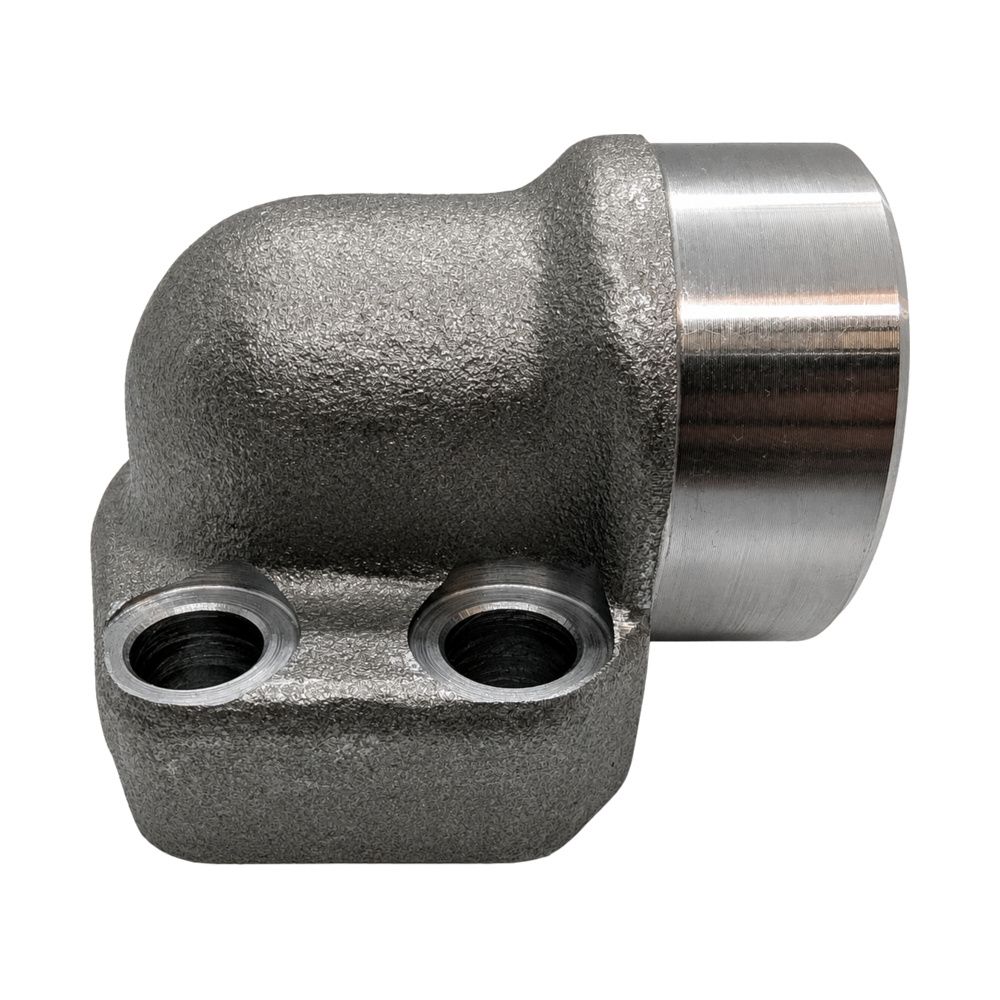

A BSP parallel female port on a Code 61 flange block with a 90° turn. Takes a BSPP line off a flanged pump or motor port and turns it square.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Parallel Female – BSPP to ISO 228. It needs a bonded washer or a cone seat to seal, because a parallel thread cannot seal on itself.
• SAE Code 61 Flange – SAE J518 Code 61 standard-pressure split flange. It seals on an O-ring captured in the flange head face, clamped by four bolts.

How to Choose

• The flange face seals on an O-ring, clamped by four bolts. The BSPP port needs a bonded washer or a cone seat.
• Code 61 and Code 62 do not interchange.
• The 90° is fixed, so check which way it needs to point before you bolt it down.

Technicians Advice

Set the block orientation and get the four bolts up evenly in a cross pattern before you connect the BSPP side. Once a hose is pulling on it you cannot correct a cocked flange without starting again.

Where You’ll Find It

• BSP Parallel Female – Female side of BSPP manifolds, adaptor blocks and gauge assemblies on local equipment.
• SAE Code 61 Flange – Pump, motor and valve block ports from around 3/4 inch upward on US and Japanese built plant.

Cross-Reference

• BSP Parallel Female – BSPP to ISO 228 / BS 2779, written G.
• SAE Code 61 Flange – SAE J518 Code 61 / ISO 6162-1 split flange. Also called a 4-bolt flange or standard-pressure flange.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
