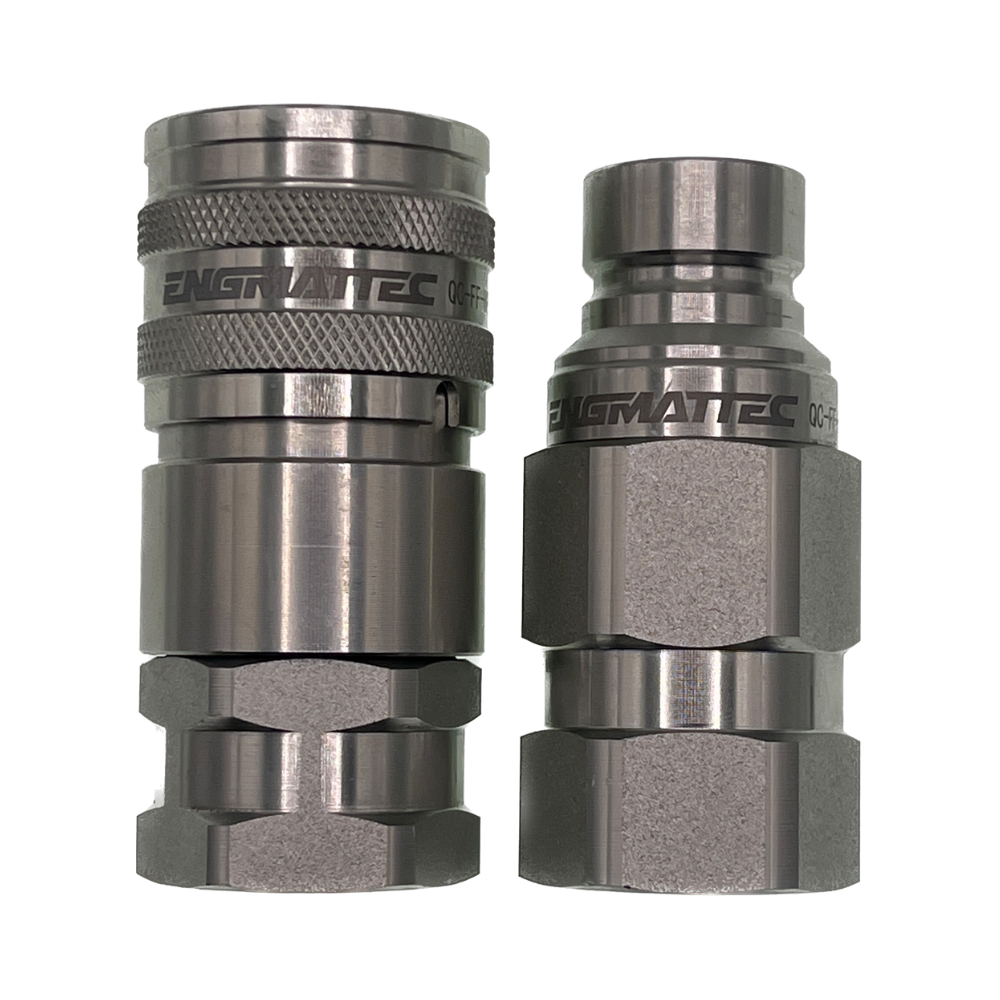

Pair 1/2 inch Male and female ENGMATTEC Brand Flat Face Dry Break Hydraulic Couplers with Free blue Dust Caps.

These are flat-face dry break couplers are used extensively on all manner of hydraulic machinery by our customers, they are the most common flat-face coupler used on small to medium-sized Australian machines as well as various Bobcat Attachments.

They have 1/2" BSPP threads and are rated to flow up to 115 Lt/min at pressures up to 5000 PSI 350 bar. ISO 16028 A SERIES

If you require 1/2 Flat Face Couplers with UNO threads instead of BSPP threads then please click the link below
1/2 inch Flat Face Hydraulic Couplers with optional UNO threads

Manufactured by ENGMATTEC they are suitable for applications involving dusty or dirty environments and where oil loss on disconnection cannot be tolerated.

Designed for use in excavator hammer and Auger circuits and other applications involving high pressure pulses.

Also good for Construction plant, Mobile equipment, General Industrial, Manufacturing Mining and Agricultural Attachments and Equipment.

This sale is for one pair, ie: 1 x female half, 1 x male half,

Please refer to our size charts in photos for correct sizing. The best measurement to use is 'J' column.

** Please note , this sale is ONLY for 1/2" x 1/2" couplers , the A13 dimension coupler in the chart. If you need other sizes in the chart, please check our other listing links below or email us at sales@mhfgc.com.au

or Phone us at 07 5563 1982
or message by clicking the link below

Click here to send us an email

These High Quality Flat Face quick connect hydraulic couplings are manufactured by ENGMATTEC and are suitable for applications involving dusty or dirty environments and where oil loss on disconnection cannot be tolerated. This series of couplings are designed for use in excavator hammer and Auger circuits and other applications involving high pressure pulses. Construction plant, mobile equipment, general industrial, mining and agricultural.

These 1/2" flat face couplers are compatible with;

DNP PLT4, Stucchi FIRG/A Series, Faster 2FFI , Hansen QA, Ryco R110-06/08, Safeway FF49, Aeroquip FD89/FD49

The above price is for one pair, (one set which includes one male and one female coupler) single male/female halves are available, please call or email us for this option.

Please refer to our size charts below for correct sizing. The best measurement to use is 'J' column.

Features and Specifications

Threaded Connections

Rated Working Pressure

Flow Rates

Pressure drops

Operating Temperatures

Materials of Construction

Weight

Features

Non-spill design avoids fluid loss during connection and disconnection.

No air intrusion during connection.

Locking sleeve prevents accidental disconnection.

Standard
