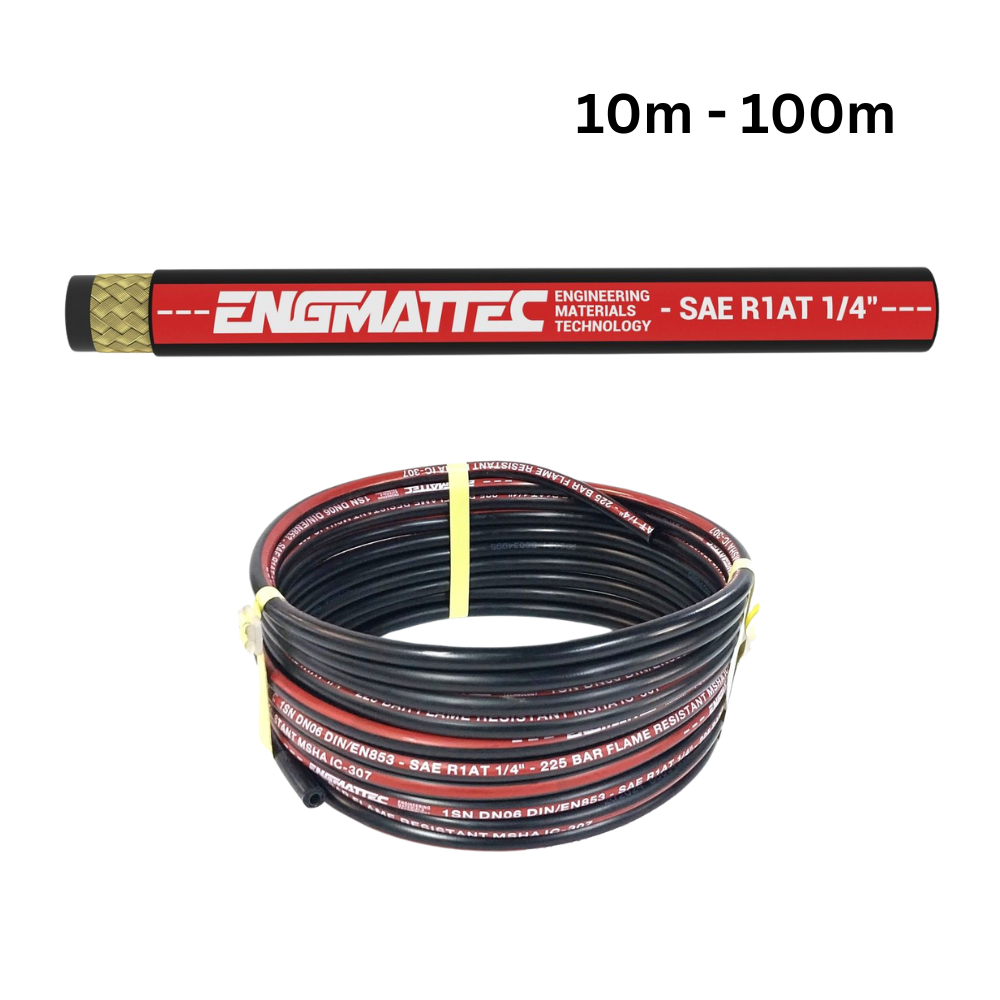

ENGMATTEC - SAE 100R1 - One Wire Braid (04) 1/4" - 3265psi - Available 10 , 20 50 or 100 m Reels

20M & 50M LENGTHS ARE DISCONTINUED in ENGMATTEC 1 Wire Smooth Cover, All other lengths are available.

20m & 50M GATES CR1 1 WIRE SMOOTH COVER WILL BE SENT INSTEAD! Click here to see listing.

Also available as complete made to your specification hose assemblies with crimp on fittings.

10, 20, 50, and 100 meter coils of quality 1/4 " ID 3,200 PSI working pressure Flame Resistant ONE Wire Hydraulic Hose .

This is a super flexible smooth cover hydraulic Hose with a 1/4" inch Inside diameter.
Made to meet or exceed SAE (Society Of Automotive Engineers) 100 R1 AT 04 Specifications.

This is a great tough smooth skinned hose, that is also very flexible. It suits either crimped hose ends, or reusables that are also available in our store.

SAE 100R1 – 04 NON SKIVE HOSE ONE Wire

This is a good quality hose made to SAE (Society of Automotive Engineers)

100R1-04 Specifications.

Construction

Synthetic rubber inner tube with one layer of braided high tensile steel wire reinforcement and a oil, Ozone, weather and abrasion resistant smooth synthetic rubber outer cover.

Application

Light to medium duty and Flexible hose ideal in tight spaces and where flexibility in movement is required.

Medium pressure service with petroleum base hydraulic fluids, water , Air, water-glycol, hot oil, grease, lubricants, crude and fuel oils. For air applications above 100psi the cover should be pin pricked

Hose Specifications

• Pressure Ranges
• Working Pressure: 220 Bar (3270 PSI)
• Burst Pressure: 13000 PSI (Minimum)
• Range of Temperature -40⁰C to + 100⁰C
• Minimum Bend Radius 100 mm
• Weight 0.22KG / M
