Digital Inline Hydraulic Flow Meter 400 Lt/min Stauff 7000 psi
Product Details
Brand: STAUFF
Weight: 15.00 kg
STAUFF- Webtec Digital Inline Hydraulic Flow Meter, test your hydraulic system with flows from 30 to 400 Lt/min, pressures to 480 bar (7,000 psi) and temperatures to 110 degrees Celsius.
This hydraulic flow testing unit is used for measuring the flow rate of fluids in mobile and industrial hydraulics.
The Flow Meter is designed with a loading valve: this valve is used to induce or simulate a load or strain to the hydraulic system in order to test and measure the system's performance. Suitable for oil flows from 30-400 LPM , Max Pressure: 480 bar (7,000 psi), Maximum Temperature : 110 °C (230 °F)

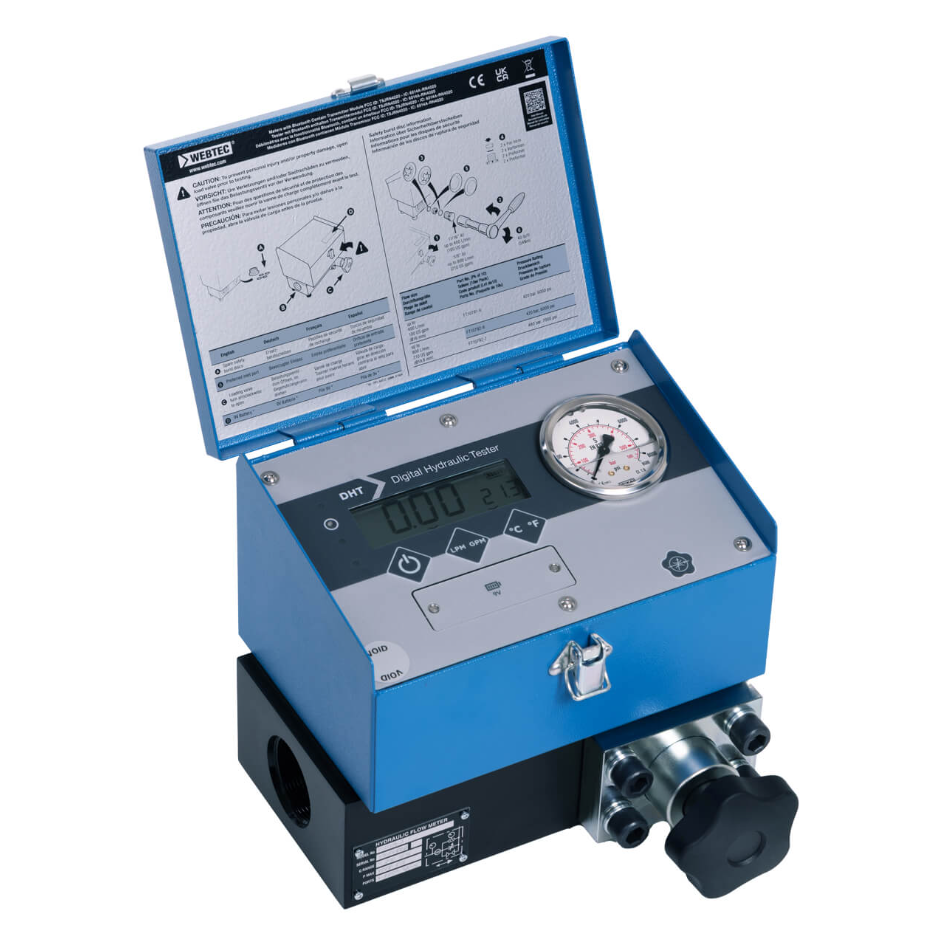

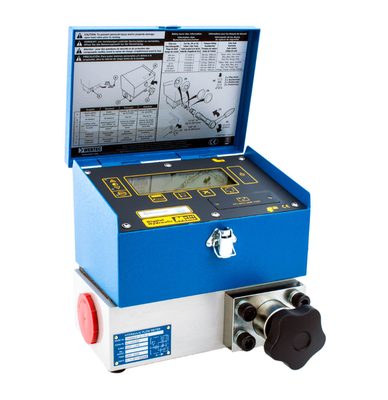

The DHT 1 Series Digital Hydraulic Testers accurately measure flow, pressure and temperature. The tester is designed to conveniently check the performance of hydraulic pumps, motors, valves and hydrostatic transmissions.
This easy to use diagnostic tester has simplified controls and can pinpoint hydraulic system faults, reducing downtime and helping in preventive maintenance.
The tester comprises a turbine flow block: and a large easy to read digital display which indicates both flow and temperature.
The tester has a built-in loading valve: to simulate the working pressure during normal machine operation. The built-in safety discs protect the machine and operator in event of excessive pressure, allowing oil to safely bypass the loading valve INTERNALLY with no spillage of oil from the hydraulic circuit, eliminating clean-up costs and environmental hazards.
Optional Calibration Certificate: this certificate is an optional extra (please see the listing options).
If a Calibration Certificate is required, The Unit needs to be sent calibrated & recorded at Stauff NSW Head office.
Please allow 2 weeks for this procedure. This is an additional cost.
For protection of the unit:, there are two 'burst discs'.
At pressures over 480 Bar, they will rupture & allow free flow of fluid.
These disks can be replaced with ease. Four spares provided.
Features
- Suitable for Mineral Oil (Aluminium), HFC Fluids. Not suitable for water,
- Manufacturers 5 year warranty.
- Selectable units (metric Or Imperial) .
- Sealed to IP65.
- Built-in loading valve.
- Unrestricted connection and simplified testing.
- Low power consumption – extended operation on standard battery.
- Portable and extremely robust.
- Interpass® safety protection system, bypasses oil internally in the event of the valve being over pressurised in either flow direction.
- Large display with Selectable Units.
- Bi-Directional Oil Flow
- Designed for in-line installation
- 1" BSPP Ports,
- Auto power off after 20 minutes.
- Dimensions; 240 (9.45”) wide, 200 (7.87”) deep, 200 (7.87”) high
- Weight. Unpacked 6.5Kg (14lbs)
- Calibration All testers are calibrated with 21cSt oil as standard.
- Calibration certificates are available on request - this is a chargeable option.
- Installation It is recommended to connect the flow block with flexible hoses 1-2 metres (3-6ft) long. All connections should be made by suitable qualified personnel.
How the DHT digital Flow tester Operates.
DHT testers are microprocessor-based instruments: providing flexibility and high accuracy.
Flow and Temperature are continuously displayed in different sized fonts on a large liquid crystal display.
Flow and temperature units can be changed with the display panel buttons.
Low power micro-circuitry and power management minimises battery consumption so a standard 9-volt battery, that is available worldwide, will typically supply > 6 months normal testing.
The turbine block is made from high tensile aluminium and houses a six-blade turbine rotating on a stainless steel bearing and shaft.
Built-in flow straighteners reduce flow turbulence and allow accurate flow measurement in both directions.
The integral loading valve gives progressive pressure loading in either flow direction.
Replaceable safety burst discs are part of Interpass® safety protection system and operate if maximum pressure is exceeded, relieving flow to the return line.
Replacement safety discs are stored in an internal holder machined in the rear of the flow block.
There is an operational warning by a red LED if the electronics exceed maximum working temperature.
This provides confidence in readings when measuring fluids up to 125 °C (257 °F).
Installation
It is recommended to connect the flow block with flexible hoses: 1-2 metres (3-6ft) long.
Inlet and outlet connections should always be of a similar bore size to that of the flow block to prevent venturi or constriction effects.
Where repetitive pulsation causes lateral pipe movement against the ports, we recommend the hoses are firmly clamped.
IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
