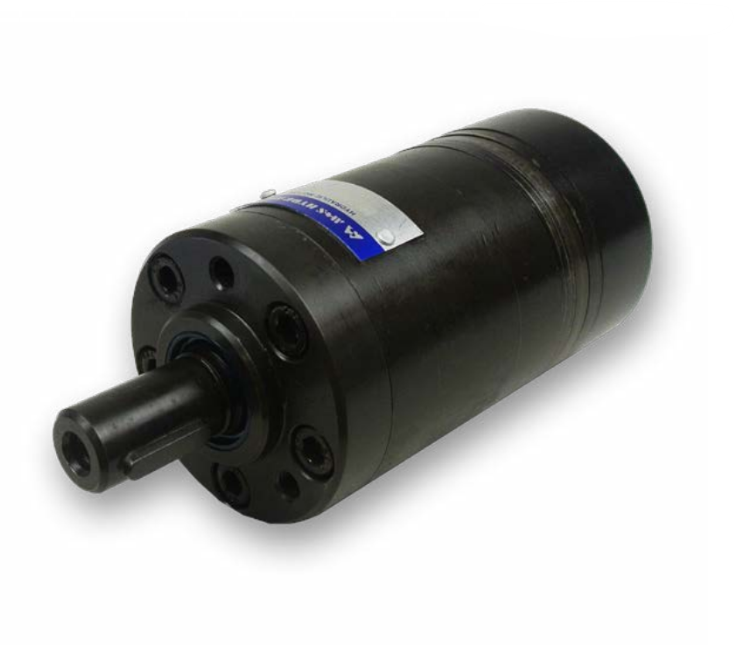

M+S MM Series Compact Gerotor Hydraulic Motors

Name: Hydraulic Gerotor Motor MM Series, Danfos OMM, Bosch MGX
Brand: M+S Hydraulics
SKU: MM xx C
Price: 416.25 AUD
Availability: InStock

High-Performance Compact Power | 8.2cc to 50cc Displacement

The M+S MM Series represents a pinnacle in compact hydraulic engineering.
Manufactured in Bulgaria to exacting European standards, these spool valve Gerotor motors deliver high torque and reliable performance in a frame barely larger than a standard Beer can. They are the professional's choice for applications where space is at a premium but power cannot be compromised.

Technical Authority & Cross-Reference

With over 20 years of technical expertise in high-pressure hydraulics, we recommend the MM series as a high-quality, direct equivalent to the following international manufacturers:

Danfoss: OMM Series
Hyd Net: BMM (EU)
Bosch Rexroth: MGX Series
Brevini / Sam: BGM Series
White: WM (125/126) Series

Click Here to View the M+S MM Series Gerotor Motor's Full Specification

Typical Applications

The MM Series is highly versatile, designed to eliminate the need for complex gears, chains, or belts.
Common Australian industrial and agricultural uses include:

• Conveyor Drives	• Textile Machinery
• Ventilators & Fans	• Machine Tooling
• Mining Equipment	• Construction & Access Platforms

Critical Commissioning & Setup Tips

1. Pre-Filling with Oil: Before installation, always fill the motor with a premium anti-wear mineral-based hydraulic oil, specifically HLP(DIN 51524) or HM(ISO 6743/4). Operating a "dry" motor can cause immediate internal damage to the fine tolerances.

2. The "Running-In" Period: To ensure the maximum service life of your motor, it must be run-in correctly. Operate the motor at moderate loads and speeds for the initial 10 to 15 minutes before applying full system pressure.

3. Filtration Standards: Cleanliness is vital. We recommend a nominal filtration of 25 microns or better, adhering to ISO cleanliness code 20/16 (ISO 4406-1999)

MM Specification Highlights

Displacement Range: 8.2 to 50 cm³/rev
Maximum Speed: Up to 2450 RPM (intermittent)
Maximum Oil Flow: Up to 25 Lt/min (intermittent
Maximum Pressure Drop: Up to 140 bar (intermittent)
Porting Options: Side or rear ports available in 3/8" BSPP
Shaft Options: 16mm straight (Parallel key), 14mm straight, or 16.5mm splined.

Expert Identification Help: Unsure of your model?
Clean the motor body and send us a clear photo of the stamped numbers for professional identification.
Email it to us at: sales@mhfgc.com.au

Visit www.hydraulic.online

These are high quality hydraulic Gerotor Motors made in Bulgaria.

The M+S MM series hydraulic motors are suitable for many low-speed applications i.e. eliminating gears, shafts, chains, belts, pulleys and other speed reduction components.

All motors are compact and light in weight in proportion to the torque and power delivered, all are fully reversible. These motors are useful where space is tight, high torque & low speed are required.

These come with 3/8" BSPP threaded side or rear ports.

Hydraulics demands extremely fine tolerances & quality materials. M + S have been producing hydraulic items for over 20 years.
We offer a 12 month warranty with purchase of these motors.

If you are unsure about identifying your pump, please clean & send a photo of the numbers and letters stamped in the body of the pump. Optionally send a photo with the length, width, bolt hole and centre dimensions.

Please refer to the chart in the photos for dimensions, shafts ports etc.
