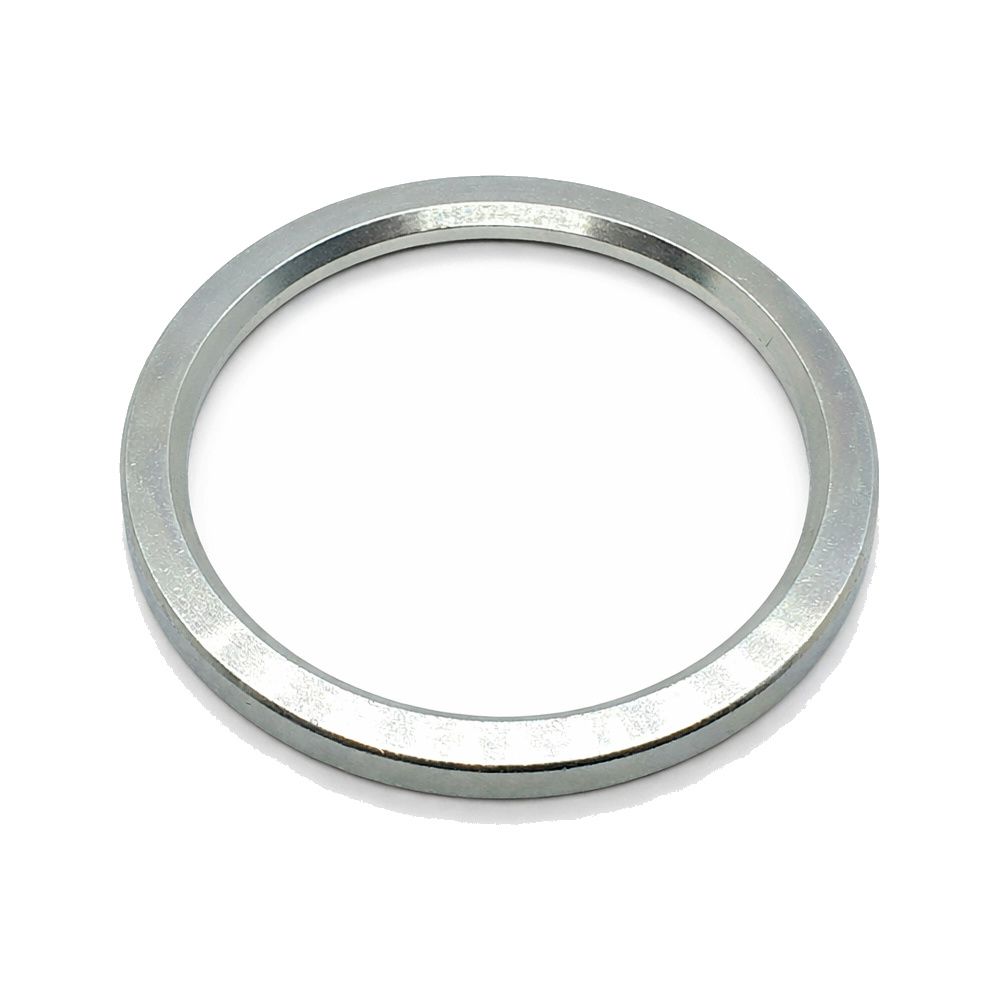

Caterpillar Flange Spacer Rings

Spacer rings that convert a Code 62 flange to the Caterpillar flange pattern. Fits between the flange head and the port.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• SAE Code 62 Flange – SAE J518 Code 62 high-pressure split flange. It seals on a face O-ring and uses a heavier, tighter bolt pattern for high pressure.

How to Choose

• These adapt a Code 62 flange to the Cat pattern. They are not a Code 61 to Code 62 converter.
• Match the ring to the flange size you already have.
• The flange O-ring still does the sealing. The ring only sets the spacing.

Technicians Advice

Check you actually need one before ordering. A Cat machine with a standard Code 62 port does not, and the ring will just add a joint that does not need to be there.

Where You’ll Find It

• SAE Code 62 Flange – High-pressure pump and motor ports on excavators and heavy plant.

Cross-Reference

• SAE Code 62 Flange – SAE J518 Code 62 / ISO 6162-2 high-pressure split flange. Heavier head and tighter bolt pattern than Code 61.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
