Engmattec NV Pull-to-Disconnect Poppet Hydraulic Couplers ISO A 1/2 Inch BSPP
SKU QC-PA-NV-BPF-P-0808-EN
AU$39.60
Bulk pricing available for quantities of 2 units or more
Configuration
Please choose
In stock: 173 available
1
Buy more, save more
| Quantity | Price per item | Discount |
| 2 items | AU$32.50 | 18% off |
| 4 items | AU$31.25 | 21% off |
| 6 items | AU$29.17 | 26% off |
| 8 items | AU$28.13 | 29% off |
| 10 items | AU$26.50 | 33% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Engmattec NV Pull-to-Disconnect Poppet Hydraulic Couplers ISO A 1/2 Inch BSPP
Product Details
Brand: Engmattec
Weight: 0.40 kg

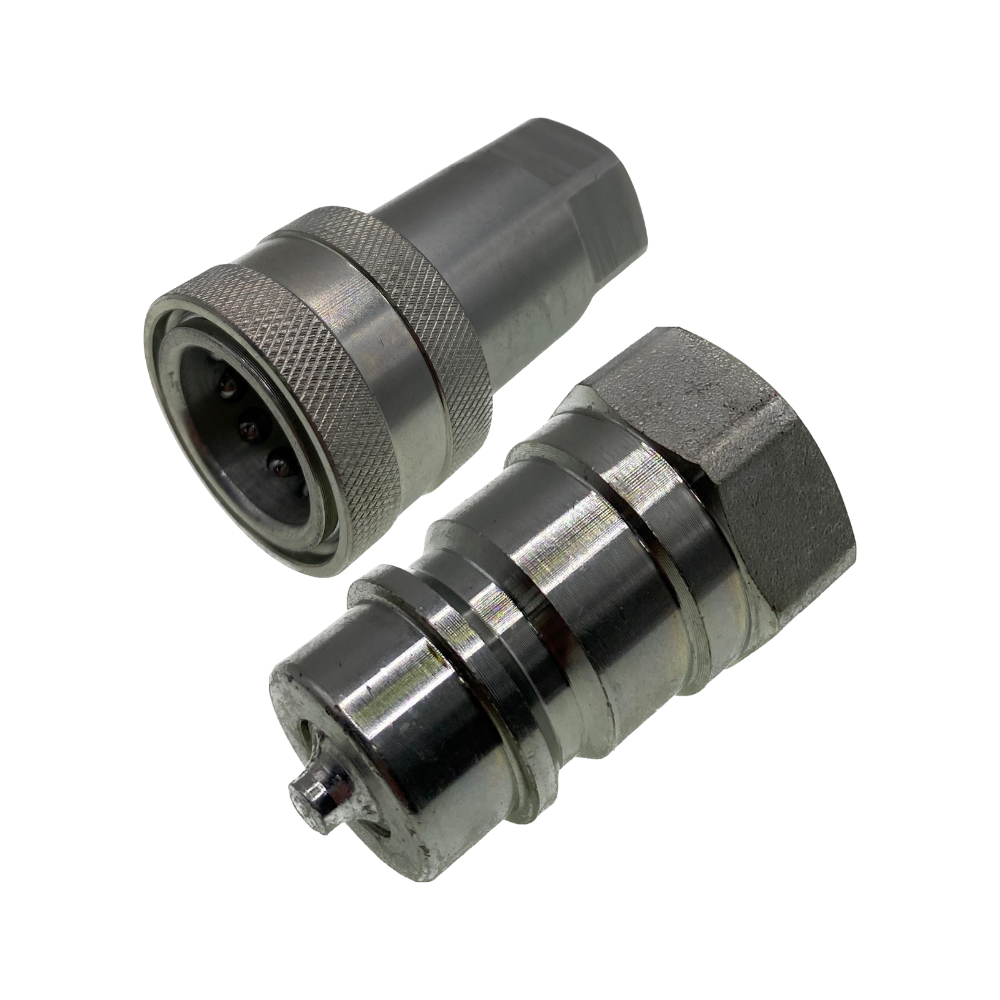

Pair of Male and Female ISO 7241 A Quick connect high pressure hydraulic couplings (1 x MALE plus 1 x FEMALE)
Widely used on Farming tractors and Agricultural attachments: as well as for general earth moving equipment.
They are the ideal choice where a tough, durable product of superior quality and high oil flow is required.
What is the difference between ISO A and ISO B coupler?
While both series' have similar technical advantages and are in widespread use,
Series A is predominantly used in Europe and is the preferred choice for forestry and agricultural equipment.
Series B quick couplers are predominantly used in the chemical industry and in North America.
Series A is predominantly used in Europe and is the preferred choice for forestry and agricultural equipment.
Series B quick couplers are predominantly used in the chemical industry and in North America.
We also have ISO 7241-1 Series A in another listing. If matching to existing poppets, you must check against Brand/series these interchange with.
These ISO A poppets Interchange with: Faster ANV, Parker 6600, Aeroquip FD56, Safeway S56, DNP PAV, Hansen HA15000
A poppet valve is used to minimize the pressure drop characteristics and provide a superior sealing fitment.
Typical applications include: Earthmoving Equipment, Tippers, Construction, manufacturing, chemical processing, agricultural equipment and general industrial machinery.
The above price is for one pair, (one set which includes one male and one female coupler)
Dimensions and Specifications
- Threaded Connections BSPP Female
- Rated Working Pressure 230 Bar (3380 PSI)
- Flow Rates
- From 40 to 320 Litres/Minute
- Pressure drops less than 0.1 Bar @ 40 Litres / Minute
- 4 Bar @ 320 Litres / Minute
- Operating Temperatures -20 to 100 degrees Celsius
- Materials of Construction Zinc plated, heat treated carbon steel. Nitrile ‘O’ ring seals with PTFE backing rings
- Positive, quick connection ensured by the snap together locking ball system.
- When connected the male and female halves can rotate, even under pressure, thus avoiding any torsional stress in the flexible hoses.
- Poppet valves have balanced springs and calibrated oil flow passages to minimize the pressure drop.
- Poppet valve seals have shockproof protective edges
- ISO A
