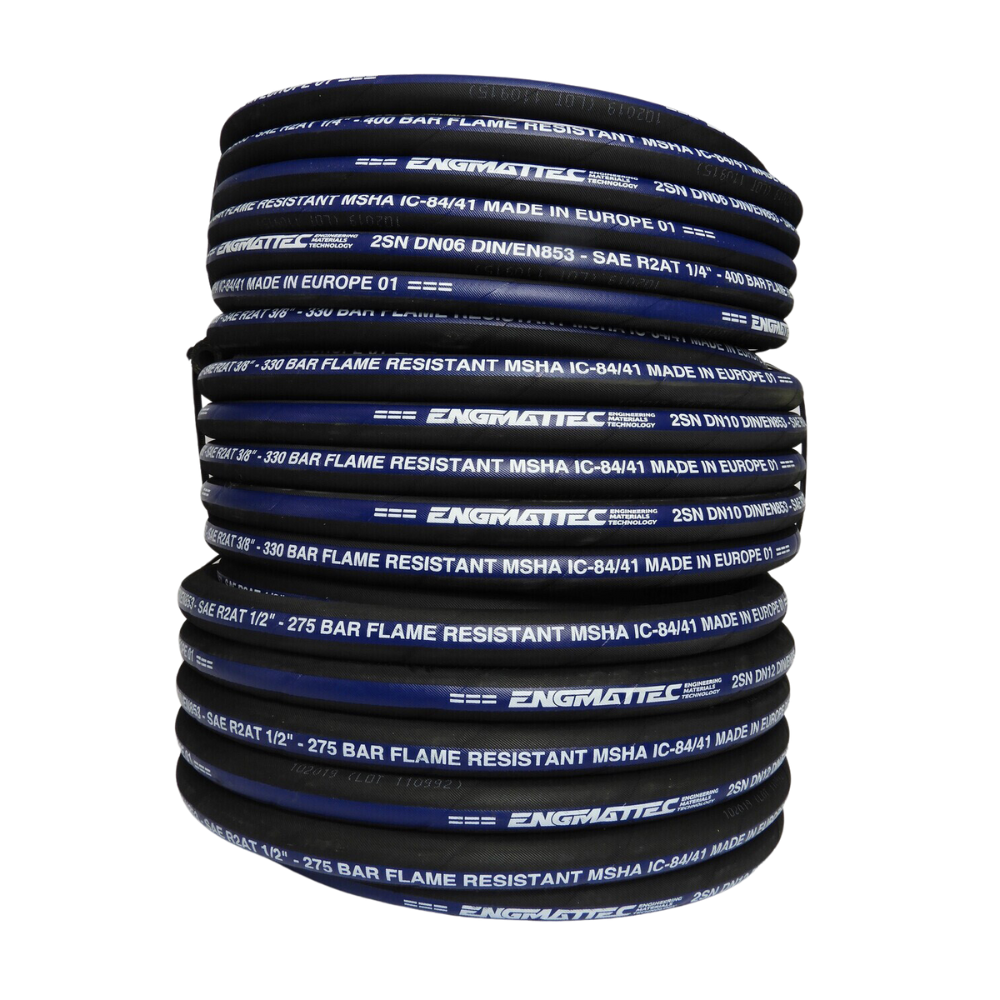

50 meter Roll or Reel of ENGMATTEC Two Wire Hydraulic Hose Specification as follows

Please contact us for detailed and accurate crimp dimensions

ENGMATTEC Hydraulic Two Wire Hose is Available in 4 Common Sizes
100R2AT 1/4" DN6,
100R2AT 3/8" DN10,
100R2AT 1/2" DN12,
100R2AT 3/4" DN19

Details of Hose Construction.
Synthetic rubber inner tube with Two layers of
braided high tensile steel wire reinforcement and
wrapped, in an Oil, Ozone, weather and abrasion-resistant
synthetic rubber outer cover.

Suitable Applications
High-pressure service (to 5,800 PSI - 400 bar) with petroleum-based hydraulic fluids,
Hot and Cold Water water, Water-glycol and water-oil mixtures,
Compressed Air, (For air applications above 100 PSI, the cover should be pin pricked)
fire-resistant hydraulic fluids, hot oil and Grease,
Lubricants, Crude Oil and Heavy Fuel Oils, Diesel.

All the Hoses listed above can also be used with the following
Matched hose fittings with the following part numbers.
Our Branded hose EngMatTec (EMT) 2 piece Hose Tails and Ferrules are
Available for Both One (1) & Two (2) Wire Braided Hose

Non Skive One Piece, Two piece, as well as Reusable Field Fit hose fittings, are available in the
Following Tread Styles and Types.

JIC Male and Female in Straight 90 and 45 elbows
BSPT and BSPP Male and Female in Straight 90 and 45 elbows
ORFS Female in Straight 90 and 45 elbows
METRIC Male and Female Light "L" and Heavy "S" in Straight, 90, and 45 elbows

GATES, One Piece "MegaCrimp" Couplings are also compatible with
ENGMATTEC Hose and are in stock and available for immediate shipment.

Order now with Confidence and your order will be processed packed and shipped within 24 hours
Have Questions and Want to Contact us.

Phone 07 5563 1982
Monday to Friday 7.30 to 4.00 PM QLD time

EMAIL us on sales@mhfgc.com.au

or shop online at

Buy Quality Hydraulic Hose at Awesome Prices

Buy Top Notch Hydraulic Hose Fittings at Really Awesome Prices

ENGMATTEC HYDRAULIC HOSE IS ALSO COMPATIBLE
with most common Hydraulic Hose Fittings
including
RYCO Field Attachable K00 and L00 Series and 600 SERIES INSERTS.
TAIPAN K Series ONE-PIECE NON-SKIVE HOSE TAILS
Taipan Field Attachable D Series
GATES, One Piece "MegaCrimp" Couplings are also compatible with
ENGMATTEC Hose and Available for immediate shipment.

Please note for lengths greater than 20m one or more cuts may be used to make up the full length,
please let us know if you require a continuous length and we will do our best to accommodate
Need another hose size, field fit reusable fittings couplers, and or adaptors for your application?
Just contact us at (07) 5571 6155, (07) 5563 1982
