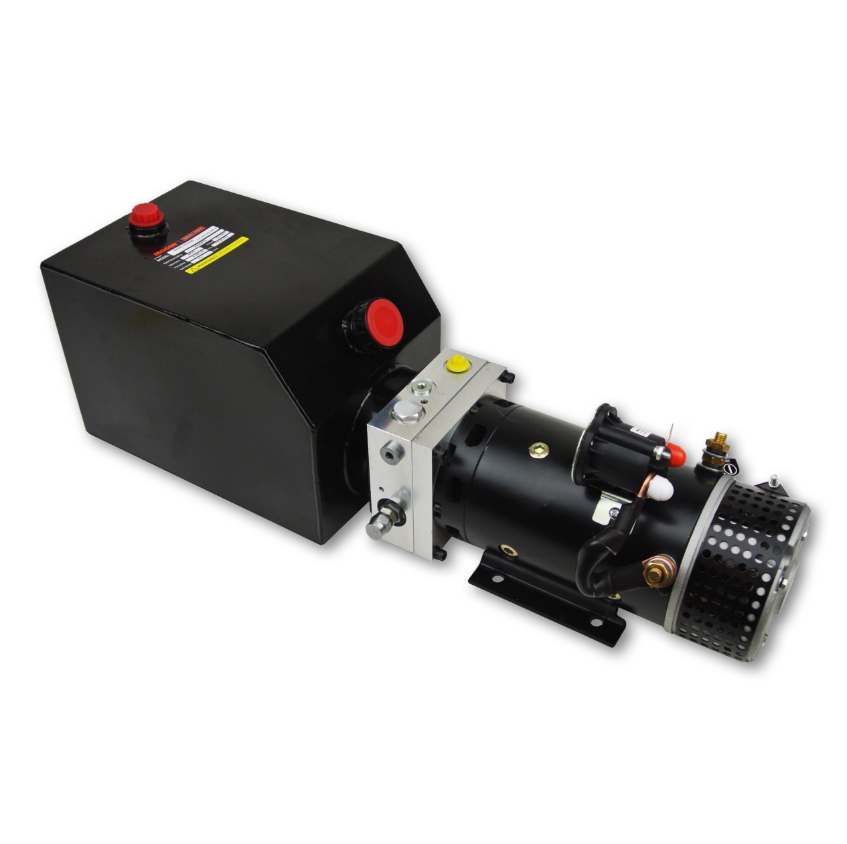

4KW Power pack 24 volt high powered and cooled for longer run times comes with a Standard 10 Lt tank.

This is our largest and most powerful DC Hydraulic power Unit.

It can produce an oil flow of 12.9 Lt/min at a pressure of 1,500 psi (100 Bar) and 7.5 Lt/min oil Flow at 3,000 psi (200 bar) pressure.

Larger Oil flows with Larger Pumps are also available: as options but at reduced delivery pressures (below 100 bar or 1,500 psi).
Contact us on 07 5563 1982 for more information and to further discuss you requirements.

Available in three configurations

• P and T ports to connect to flow control valves
• Single Acting for raising Hoists and Tipper Cylinders
• Double acting for cylinders and small drive motors

Please Note a DC powered pump's output Oil Flow will SLOW DOWN as weight / load and pressure increases.

These are still intermittent use only, however as it is fitted with a cooling fan it has longer run times.

Pendants for D/A & S/A are extra cost, see in other listing. Click here to see. Pendants

We also have the same unit without an oil tank. Click here to see. 4Kw NO OIL TANK

• Maximum pressure: 3,000 psi
• Power: 4kW
• Voltage: 24v DC
• Available Functions:
  Double Acting (for cylinders that require powerful control during extend and retract movements)
  Single acting, (for lift cylinders with gravity return such as lifts and tipper hoists)
  P & T (Pressure and Tank Ports only for suppling oil to remote mounted flow control valves)
• Pump size : 4.2 cc / rev
• Pump Ports: 9/16″ UNO
• Tank Size: 10L (usable)
• Relief valve Set: 2,500,psi
