4,000 psi "Gladiator" 100R12 Four Wire Multi Spiral Hydraulic Hose, available in sizes from 3/8" to 1" (dash 06 to dash16)
- Bulk discount on whole rolls!

Tested and rated to 1,000,000 impulse cycles (at 130% max pressure at Maximum Temperature)

Twice as flexible as SAE 100R12 because it has 1/2 the bend radius.

This is a quality Hydraulic hose made in South Korea.

Available in various Hose Bores, -06 -16 (3/8" to 1" inch bore) manufactured to meet of exceed SAE 100 R12 Specifications.

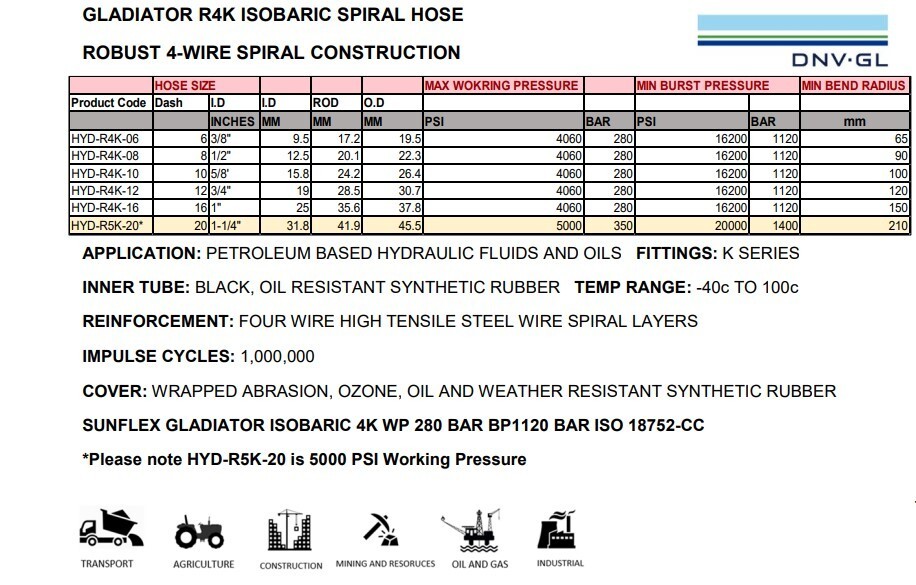

Features and Specifications:

The R4K Isobaric spiral hose provides 4,000 psi constant working pressure in all sizes from -06 to -16 (3/8" to 1")
Designed for harsh Australian conditions where high pressures, high temperatures and high impulse applications are required.

• R4K has half bend radius of traditional SAE100 R12 hose, making for easier installations
• This hose can be used with all K series one piece fittings we sell in the following thread types,
  JIC, BSP, ORFS, Code 61 Flange, Metric Light & Metric Heavy
• R4K hydraulic hose exceeds ISO 18752.
• The advantage of R4K hose is that it uses our special K series fittings that will crimp onto 1, 2 and 4 wire hoses,
• K fittings this will save you money in two ways: Less Stock to order and keep and Less Storage space.
• Half Bend Radius, ½ Iso 18752-C
• 4,000 Psi Constant (Isobaric) Working Pressure
• Exceeds Iso 18752-CC
• 4 Wire Spiral Construction
• Uses K Series Fittings
• Code Matched Hose and Fittings System
• Tough Abrasion Resistant Wrapped Cover Finish
• The Most Flexible Hose on the Market
• 4:1 Safety Pressure Factor

Applications:

Heavy Duty with High Impulse High Pressure applications like Excavators, Dozers, Skid steers, dumpers and tippers, Scrapers, Cranes, Compactors, Rock breakers, Drill rigs and other construction equipment.

Reinforcement:

4 High tensile steel spirals, wrapped in synthetic rubber, abrasion and weather resistant outer cover.

Save money with buying high quality 4 wire hose in bulk! Choose from our options now.

We are able to ship from several Australian locations including Western Australia.

Please contact us with length required plus a postcode for a freight quote.
call 1300 1 Hoses (1300 146 737) or 07 5563 1982
or email us at sales@mhfgc.com.au

Need other hose length or size? field fit reusable hose fittings and adaptors, please see our other listings or just call (07) 5563 1982 .

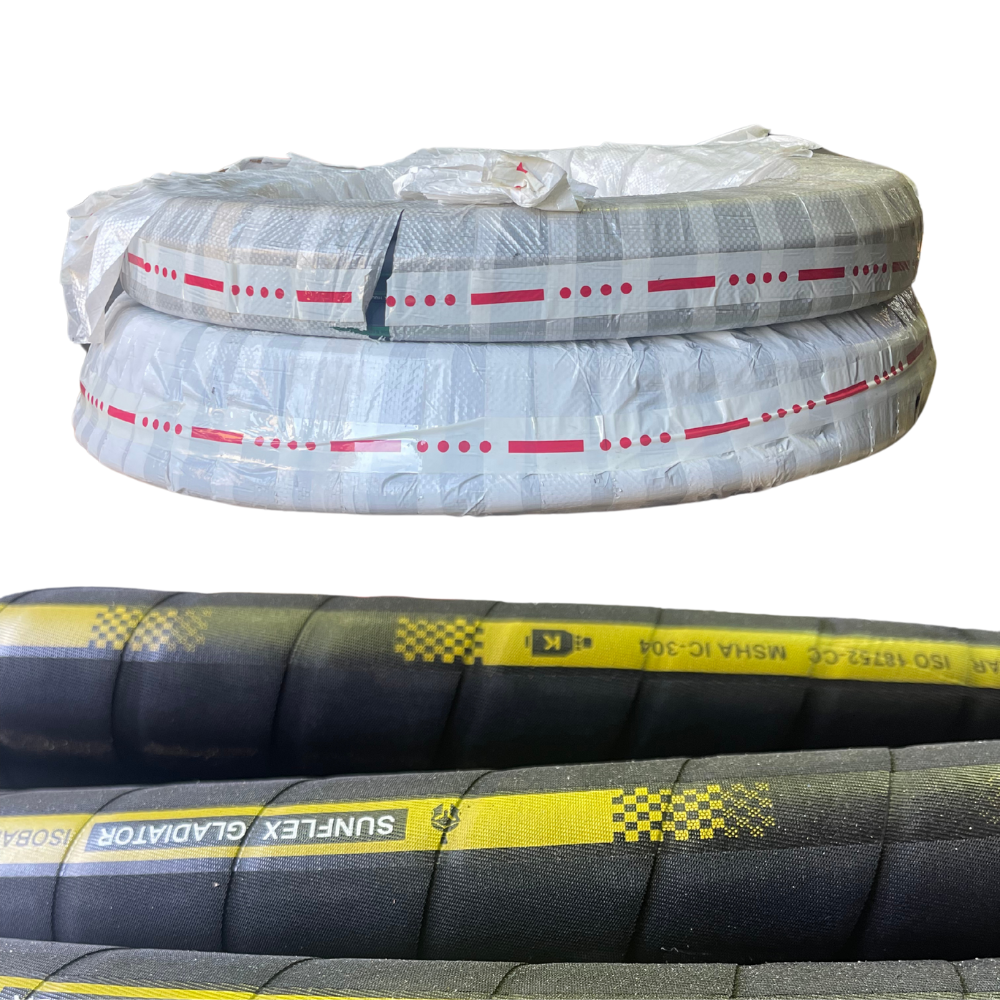

Picture is off actual hose
This is a high quality hose made in South Korea
