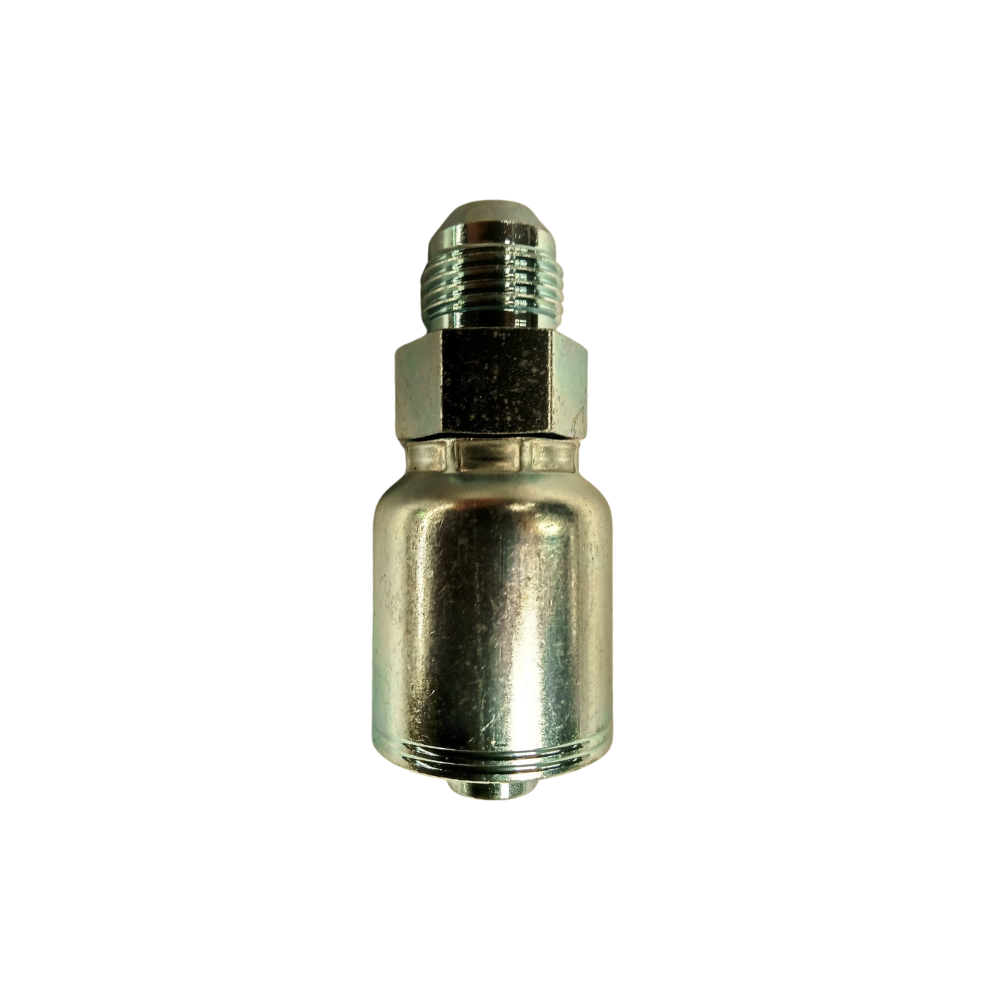

These are Quality made 'Crimp On' Male JIC Hose tails from a well know Australian manufacturer and distributor.

These are made from zinc-plated steel and are precision-made very robust hosetails.

They have been designed to be crimped on to either SAE100R1 or SAE100R2 Wire Braided Hydraulic hose (1 wire or 2 wire)

JIC/UNO THREAD ID CHART
Male Thread OD & Pitch	DASH SIZE	Male Thread OD		Female Thread ID		TUBE SIZE
inch – TPI		mm	inch	mm	inch	inch
5/16 – 24 UNF	-05	7,9	0.31	6,9	0.27	1/8
3/8 – 24 UNF	-06	9,5	0.38	8,5	0.33	3/16
7/16 – 20 UNF	-07	11,1	0.44	9,9	0.39	1/4
1/2 – 20 UNF	-08	12,7	0.50	11,4	0.45	5/16
9/16 – 18 UNF	-09	14,3	0.56	13,0	0.51	3/8
3/4 – 16 UNF	-12	19,1	0.75	17,5	0.69	1/2
7/8 – 14 UNF	-14	22,2	0.88	20,3	0.80	5/8
1.1/16 – 12 UNF	-17	27,0	1.06	24,9	0.98	3/4
1.3/16 – 12 UNF	-19	30,2	1.19	28,2	1.11	7/8
1.5/16 – 12 UNF	-21	33,3	1.31	31,2	1.23	1
1.5/8 – 12 UNF	-26	41,3	1.63	39,1	1.54	1.1/4
1.7/8 – 12 UNF	-30	47,6	1.88	45,5	1.79	1.1/2
2.1/2 – 12 UNF	-40	63,5	2.50	61,5	2.42	2

Please check our thread Identification chart in the photo section.
It is recommended you use calipers or verniers to achieve a precise measurement. We also have a BSP listing. JIC & BSP are the most commonly used fittings in Australia. However, there are other, JIS, SAE, Metric etc. If you are unsure, please measure the outside of the male thread & contact us with the dimension.

Please send us a message for more information.
Email: sales@hydraulic.online

Phone: 07 5563 1982
Hours: 8 am to 4 pm Monday - Friday, excluding public holidays
If you have any questions please don’t hesitate to contact us
Best regards,
Hydraulic.Online
Improper Selection, Installation, Implementation, And/Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
