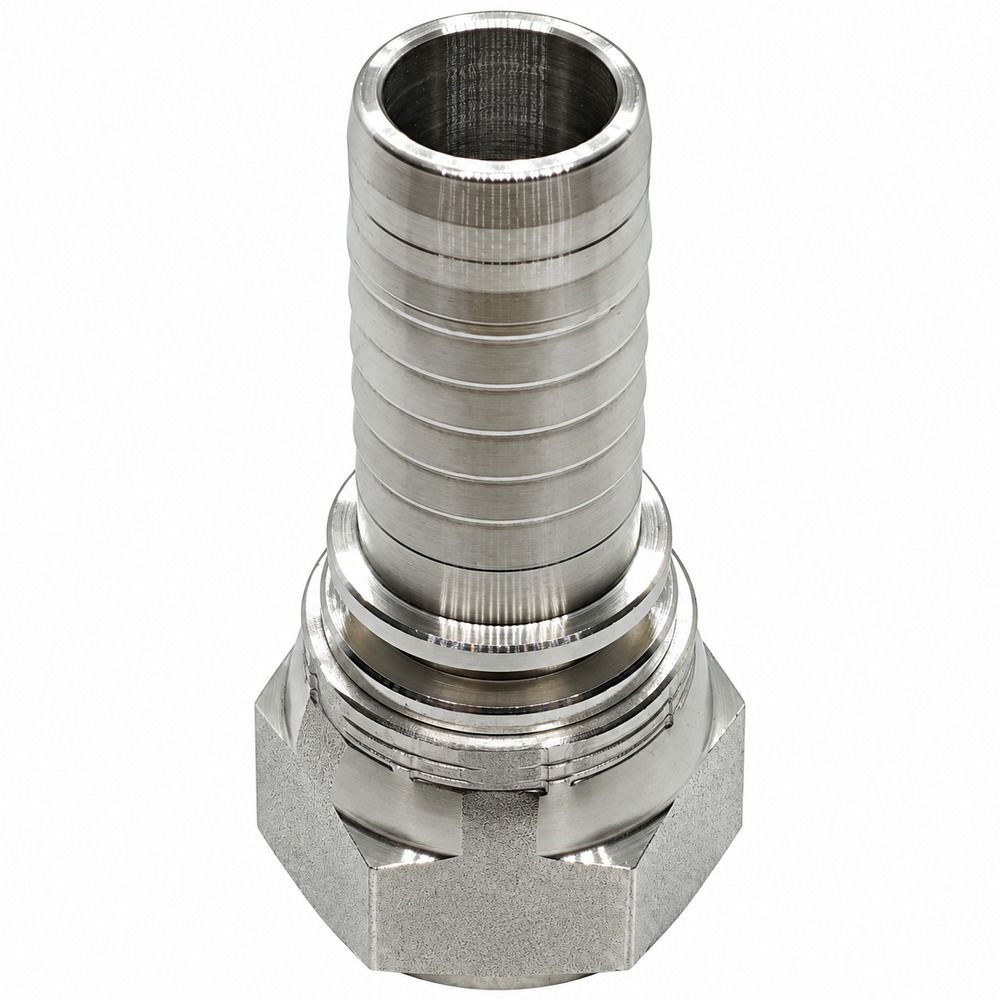

316 Stainless Steel Hose Tail - JIC Swivel Female - Straight - Two-Piece Crimp-On

A 316 stainless two-piece crimp-on hose tail with a JIC 37° Swivel Female end, straight. For hose assemblies that have to survive salt water, washdown chemicals or food-plant cleaning.

Material: 316 stainless steel, 11 sizes in this listing. Pick your size above and it is on its way.

This is the tail only – ferrules are sold separately

A two-piece crimp-on fitting is two separate parts: this tail and a ferrule that crimps over the hose. The ferrule is not included. Use a stainless ferrule with a stainless tail.

🔗 Stainless R2 ferrules🔗 Stainless R14 PTFE ferrules

Thread Standards

• JIC 37° Swivel Female – SAE J514 37° flare seat. Seals on the cone and swivels, so the hose is never wound up during assembly.

How to Choose

• First number is the hose bore, second is the thread. Size each separately.
• You also need a ferrule for each tail: the stainless swage ferrule that suits your hose.
• Angled tails set the direction the hose leaves the port. Decide that before you crimp, it cannot be turned afterwards.

Technicians Advice

Crimp stainless tails with stainless ferrules and use the crimp diameter for the stainless ferrule, not the steel one. Stainless springs back more than mild steel, so check the finished diameter with a vernier and adjust the die setting if you are reading high. Never mix a stainless tail with a plated ferrule on a boat: the two metals in salt water corrode the ferrule first.

Where You’ll Find It

• Boats and ferries: steering rams, deck cranes, anchor winches and anything that lives in salt spray.
• Food, dairy and beverage plants where lines are washed down with caustic and hot water every shift.
• Chemical dosing, water treatment and mine wash bays where zinc plating is gone in months.

Sizes in this listing
