20 Metre Coil Of inch (1") Inside Diameter "Special Order 4800 psi Three Wire Hose" Made In Italy.
Longer Lengths Up To 50 Metres are Also Available. Please Call 07 5563 1982

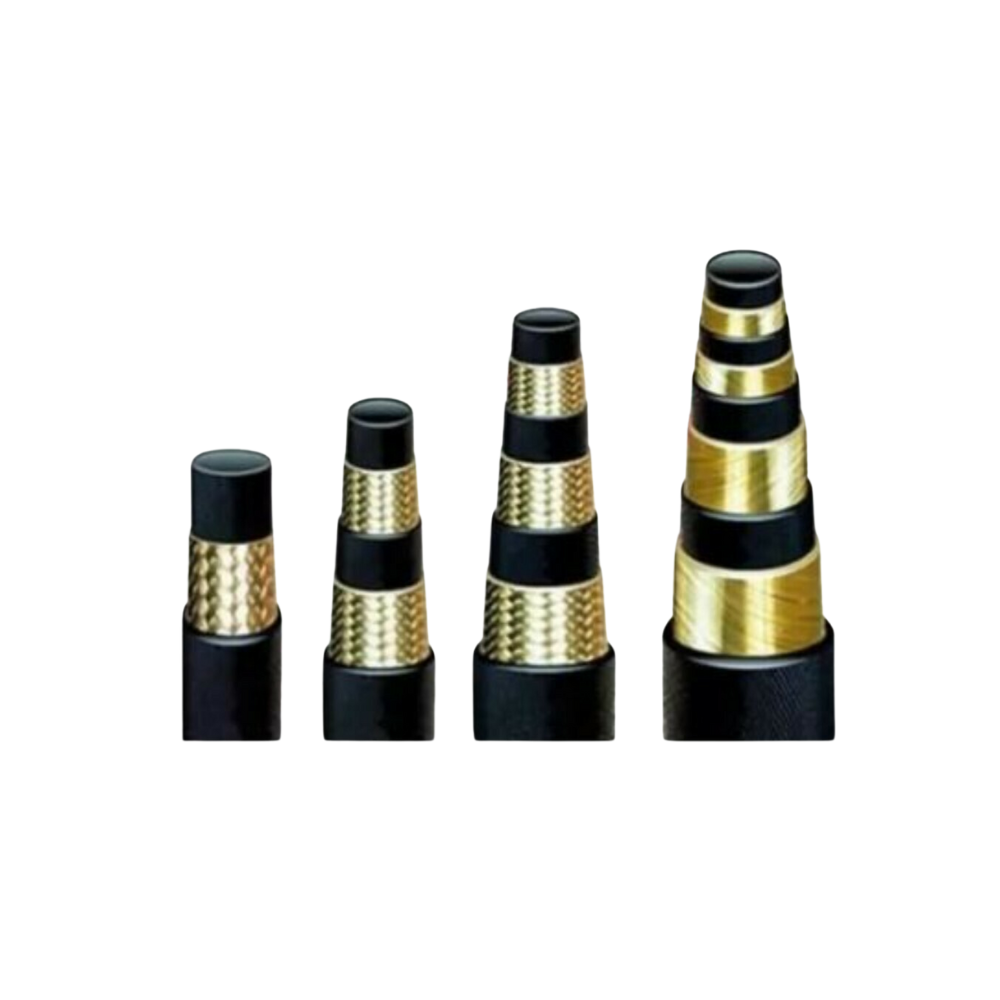

This Is An Extra High-Pressure Super Flexible Hose Reinforced With Three (3) Layers Of High Tensile Braided Steel Wire
Ideal For Applications Where An Ultra High-Pressure Hydraulic Hose With Extreme Flexibility And High-Temperature Resistance Is Required. get The Flexibility Of Two Wire Hydraulic Hose With The Pressure Resistance Of 100R13 Four Wire Spirally Reinforced Hose.
standard 2 Wire Hose Fittings Can Be Used, But The Hose Must Be Skived Before Assembly (Outer Rubber Cover Removed)
end Crimped to Just before Tail Collapse Alternatively, You Can Use 4 Wire Hose Tails And Ferrules.
Please Note That This Is Old Stock Kept In "Air Tight" Storage For 5 Years And Is Still In Great Condition.
Specifications
Pressure Range Working Pressure: 4,800 PSI
Burst Pressure: 19,200 PSI (Minimum)
Range of Temperature -40⁰C to + 125⁰C
Minimum Bend Radius 310 mm
Weight 1.9 KG/Mtr Total packed weight 38 KG
This is a great quality "Special Order Only" hose made in Italy.
Construction
Synthetic rubber inner tube with three layers of braided high tensile steel wire reinforcement and a wrapped, Oil, Ozone, weather, and abrasion resistant synthetic rubber outer cover.
Application
High-pressure service with petroleum base hydraulic fluids, water, Air, Water-glycol, water-oil, fire-resistant hydraulic fluids, hot oil grease, lubricants, crude, and fuel oils. For air applications above 100
PSI the cover should be pin pricked.
