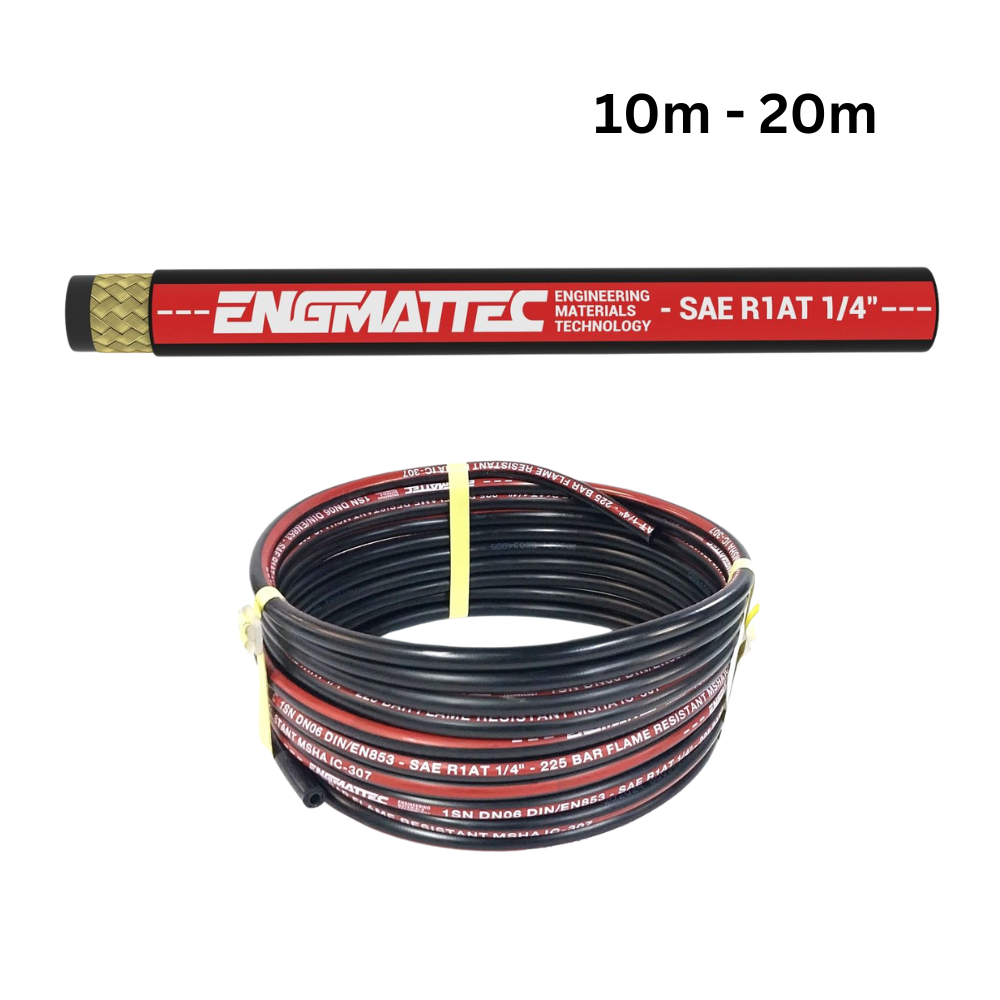

10 meter coil of European quality 1/4 " ID 3200 PSI working pressure Flame Resistant ONE Wire Hydraulic Hose . This is a great tough skinned hose, that is also very flexible. It suits either crimped ends, or our re usables in our store. (pick one wire ferrules)

SAE 100R1 – 04 NON SKIVE HOSE ONE Wire

This is a good quality hose made to SAE (Society of Automotive Engineers)

100R1-04 Specifications.

Construction

Synthetic rubber inner tube with one layer of braided high tensile steel wire reinforcement and a oil, Ozone, weather and abrasion resistant synthetic rubber outer cover.

Application

High pressure service with petroleum base hydraulic fluids, water , Air, water-glycol, hot oil, grease, lubricants, crude and fuel oils. For air applications above 100psi the cover should be pin pricked

Hose Specifications

Pressure Range

Working Pressure: 220 Bar (3270 PSI)

Burst Pressure: 13000 PSI (Minimum)

Range of Temperature

-40⁰C to + 100⁰C

Minimum Bend Radius

100 mm

Weight

0.22KG/Mtr
