1/2" Flat Face Hydraulic Coupler Set, 3/4" BSPP Female Ports

Name: 1/2" Flat Face Hydraulic Coupler with 3/4 BSPP Port 5,000 psi flows 115 Lt/min
Brand: ENGMATTEC
SKU: 10166
Price: 98.0 AUD
Availability: InStock

Store/Couplers Quick Connect for Oil/Water/Flat Face Dry Break Designs with twist to Lock Collars

SKU 10166

AU$98.00

🔥 EOFY SALE!

was ~~AU$122.00~~ Save 20%

Bulk pricing available for quantities of 2 units or more

In stock

Quantity:

Maximum purchase quantity: 10 items

Buy more, save more

Quantity	Price per item	Discount
2 items	AU$83.60	15% off
4 items	AU$79.20	19% off

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

1/2" Flat Face Hydraulic Coupler Set, 3/4" BSPP Female Ports

Store/Couplers Quick Connect for Oil/Water/Flat Face Dry Break Designs with twist to Lock Collars

Product Details

Brand: ENGMATTEC

Weight: 0.75 kg

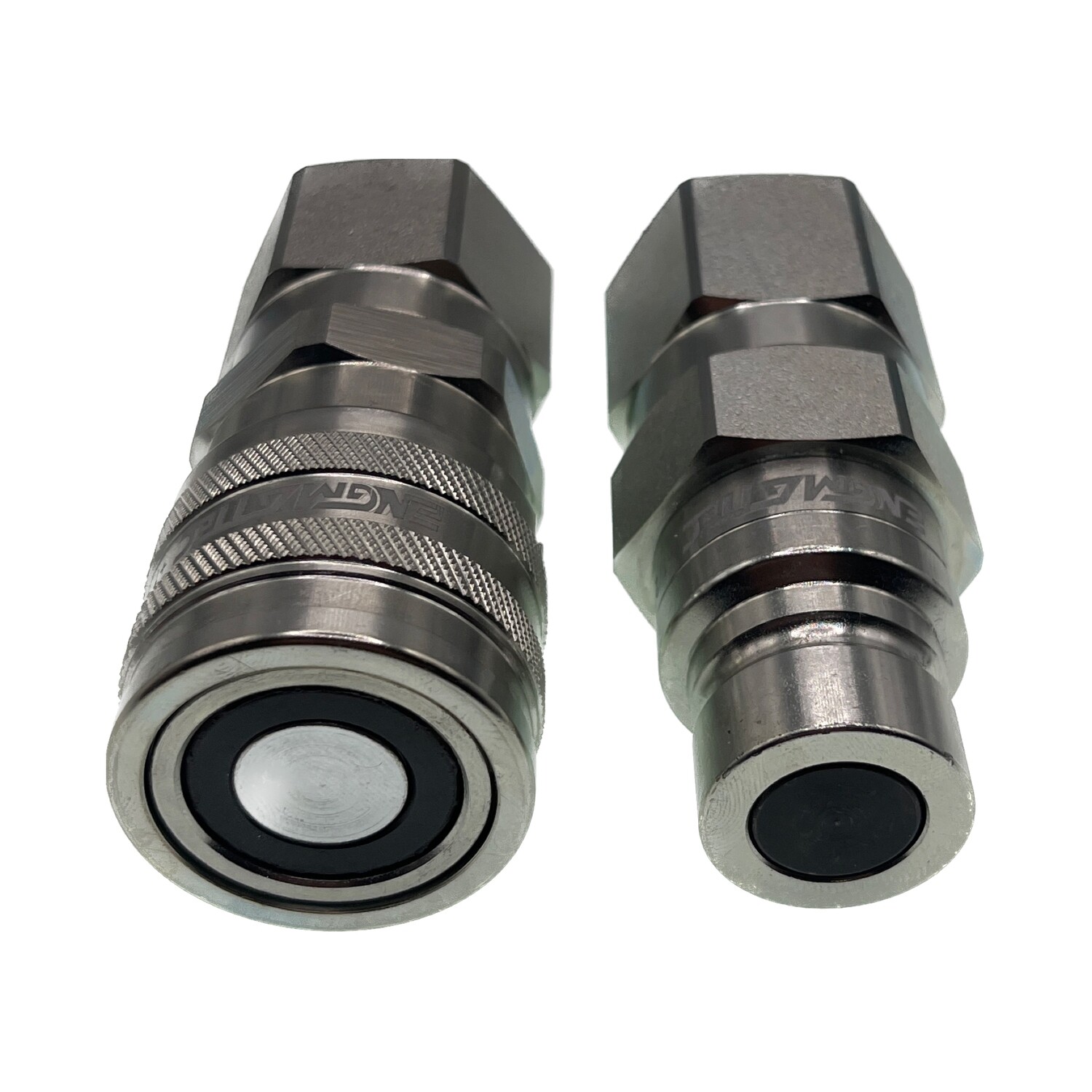

Pair of 1/2" body Quick-connect Flat Face hydraulic couplers with 3/4 BSPP threaded connections flows 115 Lt/min at 5,000 psi.

Free: Pair of Dust Caps with every purchase.

This type of Coupler is Ideal for connecting to Larger 3/4 BSP hoses with BSPP Male hose ends.

Designed for use in dusty earthmoving environments for quick connect and disconnect without tools and almost no oil loss or leakage.

Used extensively on Larger KUBOTA and YANMAR equipment and most medium-sized earthmoving machinery and attachments.

1/2" flat face couplers are the most common size for machines used in Australia.
This type has a 3/4 BSPP Female Thread.

Specifications

Threaded Connections 3/4' inch BSPP
Rated Working Pressure 350 Bar (5100 PSI)
Flow Rates From 20 to 115 Litres/Minute
Pressure drops less than 0.1 Bar @ 20 Litres / Minute
6 Bar @ 115 Litres / Minute
Operating Temperatures -20 to 100 degrees Celsius
Materials of Construction Carbon steel body heat treated to increase hardness and corrosion resistance,
Nitrile seals. H Series couplings are Zinc plated.
Weight 750 grams

Features

Flat mating faces are easily wiped clean to prevent the ingress of contaminants.
Improved flow path minimizes the pressure drop.
The non-spill design avoids fluid loss during connection and disconnection.
No air intrusion during connection.
Locking sleeve prevents accidental disconnection.
Zinc nickel surface treatment and meets 200-hour salt spray tests.

Manufacturing Standard

These Series conform to ISO 16028 (2006) in all respects

Connection / Disconnection Under Pressure

Connection with residual pressure in the line will be difficult or impossible. For applications where connection under pressure is required, HCP male couplings, or screw couplings from either the VD VV or Connect Under Pressure range.

Click here for VD Type Screw together hydraulic Couplers

click here for VV type Screw together hydraulic couplers

Disconnection of any quick disconnect / quick release coupling whilst under full system pressure can be very dangerous and should not be attempted.

Need Help or advice please contact us for assistance.

Email: sales@mhfgc.com.au

Phone Australia +61 (07) 5563 1982

It is easy to check compatibility and it only takes a minute. Please refer to our size charts in photos for correct sizing. The best measurement to use is 'J' column. **

This series of couplings are designed for use in excavator hammer and Auger circuits and other applications,

that experience high-pressure pulses.

Construction plant, mobile equipment, general industrial, mining and agricultural.

These 1/2" body flat face couplers are compatible with;

DNP PLT4, Stucchi FIRG/A Series, Faster 2FFI , Hansen QA, Ryco R110-06/08, Safeway FF49, Aeroquip FD89/FD49

The above price is for one pair, (one set which includes one male and one female coupler) single male/female halves are available, please call or email.

Please refer to our size charts below for correct sizing. The best measurement to use is 'J' column.

Buy with Confidence from a long established Hydraulic Service Center get a 12 month warranty and an Australian Tax Invoice.

Hours: 8am to 5pm Monday - Friday, excluding public holidays

Tax invoices are supplied with every purchase

Out of Stock

It is our desire to always have every listed item actively in stock. Occasionally (but very seldom) due to high demand, short supply or human error we may be momentarily out of stock on an item. If this happens you will be notified and given the option to either cancel for a full refund or wait for the part to come in (typically 3-14 days).

If you have any questions please don’t hesitate to contact us for further assistance.

Best regards,

Hydraulic.Online

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
