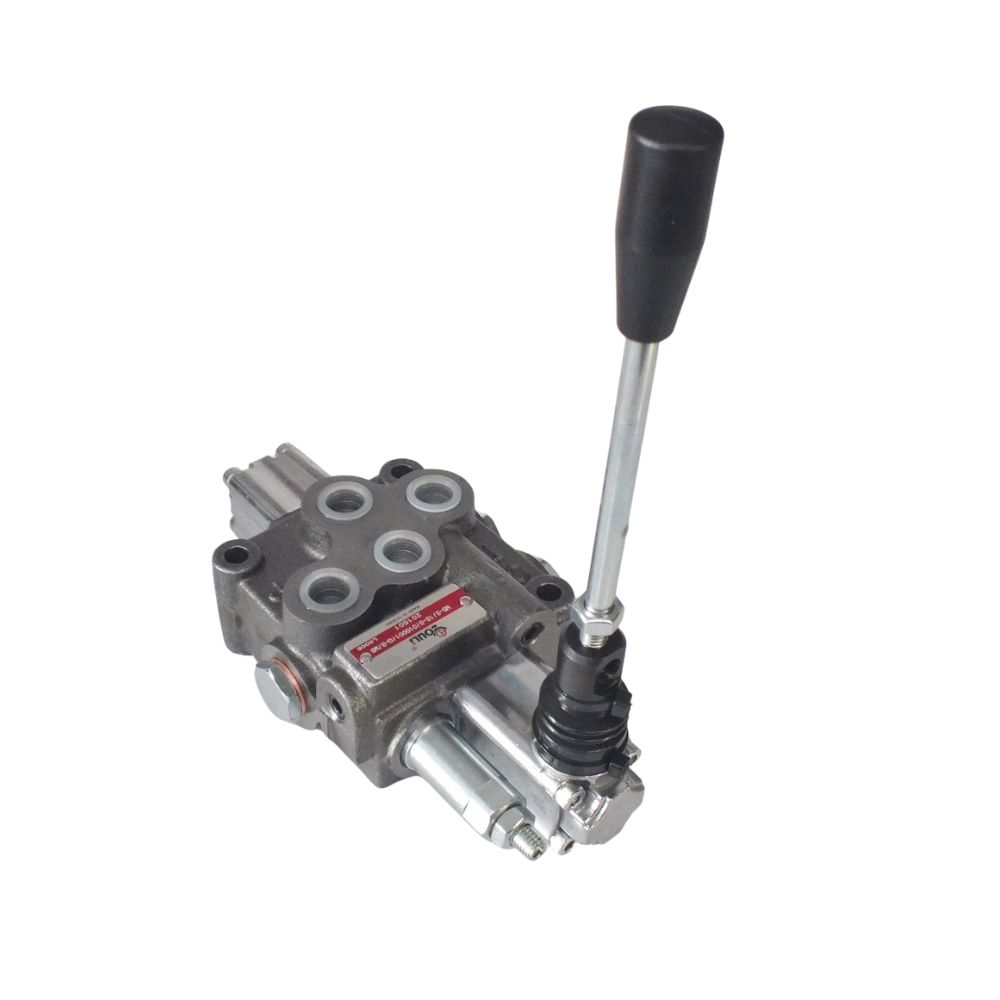

Youli MB3 Monoblock Valve - Solenoid Operated 12/24V DC, 45 L/min, 3/8" BSPP

Push-button hydraulics: a single-spool MB3 with the 8ES solenoid kit factory-fitted, switching a full 45 L/min from a dash button, pendant or relay - cranes, tippers, winches and remote-mounted valves. Every option here keeps the MANUAL LEVER as backup, so a flat battery or blown fuse never strands the machine.

Pick voltage and spool from the dropdown - each is an assembled unit with its own part number. All prices include GST.

Sizes & Part Numbers

What is in each kit: each unit = MB3/1S3/18L/G4-3-4-M3 valve + the Youli 8ES solenoid kit factory-fitted: KIT-MB3-1S-ES12C uses YLMB34511L (12V, closed-centre cylinder spool, manual lever), ES24C uses YLMB34512L (24V), ES12O uses YLMB34521L (12V, open-centre motor spool), ES24O uses YLMB34522L (24V). The 8ES kit includes its own spool - assembled and tested by us before dispatch. Spare coils: YLMB8ES12D / YLMB8ES24D.

Closed centre (cylinder spool) holds a load in neutral - rams and winches. Open centre (motor spool) lets a motor coast. 250 bar, 45 L/min, 36W coils.

Specifications

• Flow: 45 L/min | Pressure: 250 bar nominal | Ports: 3/8" BSPP
• Adjustable inlet relief valve | Made in Taiwan (Youli)

Technicians Advice

Size the supply wiring for the 36W coils and always switch through a relay. 12V and 24V coils are NOT interchangeable on the same kit - spare coils are available (12V and 24V) if a machine changes voltage. Multi-spool solenoid valves are assembled to order - call with the function list.

Official Datasheets

📄 Youli MB3 Factory Spec Sheet

Complete Your Setup

⚙ MB3 1-Spool (manual)⚙ MB3 Micro Switch Valve⭐ Power Beyond Plugs

Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.

Not sure? Call 1300 146 737 or email sales@mhfgc.com.au - we will spec it with you.
