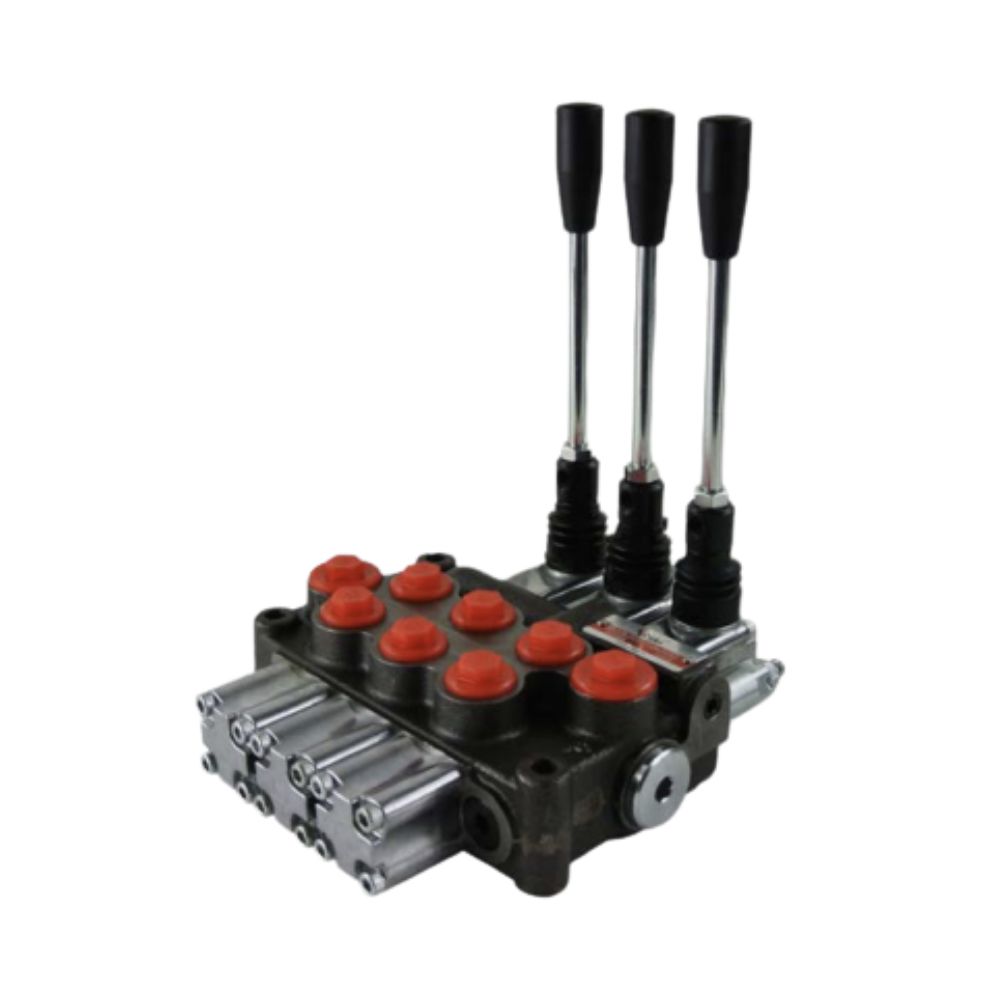

Youli MB3 Monoblock Directional Control Valve - 3 Spool, 45 L/min

Three independent functions on one compact block - loader lift + tilt + grab and similar setups. 45 L/min, 250 bar.

Pick your configuration from the dropdown - each choice is a factory-built valve with its own part number that flows straight through to our warehouse. All prices include GST.

• Cylinder spool (closed centre, standard) - ports closed in neutral, holds the load. For rams.
• Motor spool (open centre) - ports open to tank in neutral so a motor can coast.
• Single-acting spool - one work port for single-acting rams and tippers.
• FLOAT spool (5PYL) - detented 4th position opens ports to tank so a bucket or deck follows the ground.

Sizes & Part Numbers - every configuration

Need a different spool mix, detents, micro-switches, pneumatic or 12/24V solenoid control? Every combination can be factory-coded - call us and we will build the part number with you.

Specifications

• Flow: 45 L/min | Pressure: 250 bar nominal | Ports: 3/8" BSPP
• Adjustable inlet relief valve (63-200 bar standard, 40-80 & 160-315 bar options)
• Spring-return 3-position levers | Made in Taiwan (Youli)

Technicians Advice

Cylinder (closed centre) spools hold a load in neutral; motor (open centre) spools let a spinning motor coast - do not run a motor on a cylinder spool. The inlet relief ships on a standard setting: set it to YOUR system pressure with a gauge on P at first start. Detent, micro-switch, pneumatic and solenoid controls all retrofit per spool - call us with the function list and we will code it. Power beyond needs the MB3 plug (below) and a dedicated tank return line.

Official Datasheets

📄 Youli MB3 Factory Spec Sheet

Complete Your Setup

⭐ Power Beyond Plugs (MB3)⚙ MB3 1-Spool⚙ MB3 2-Spool⚙ MB3 4-6 Spool

Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.

Not sure? Call 1300 146 737 or email sales@mhfgc.com.au - we will code the valve for you.
