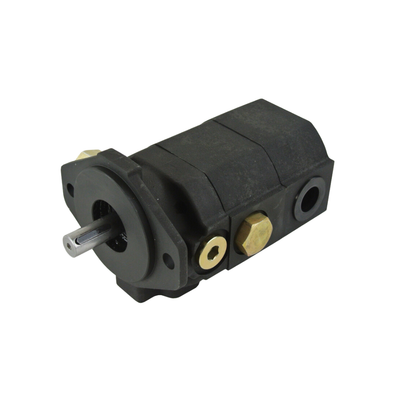

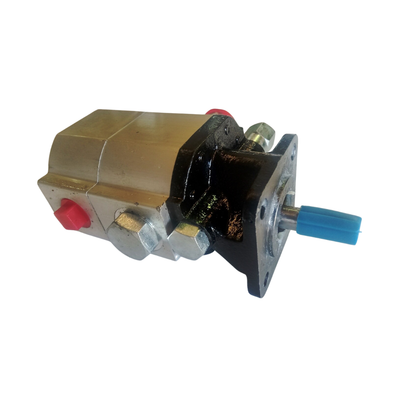

Log Splitter Pump with automatic High flow low pressure and Low Flow high pressure capabilities complete with Bell Housing.

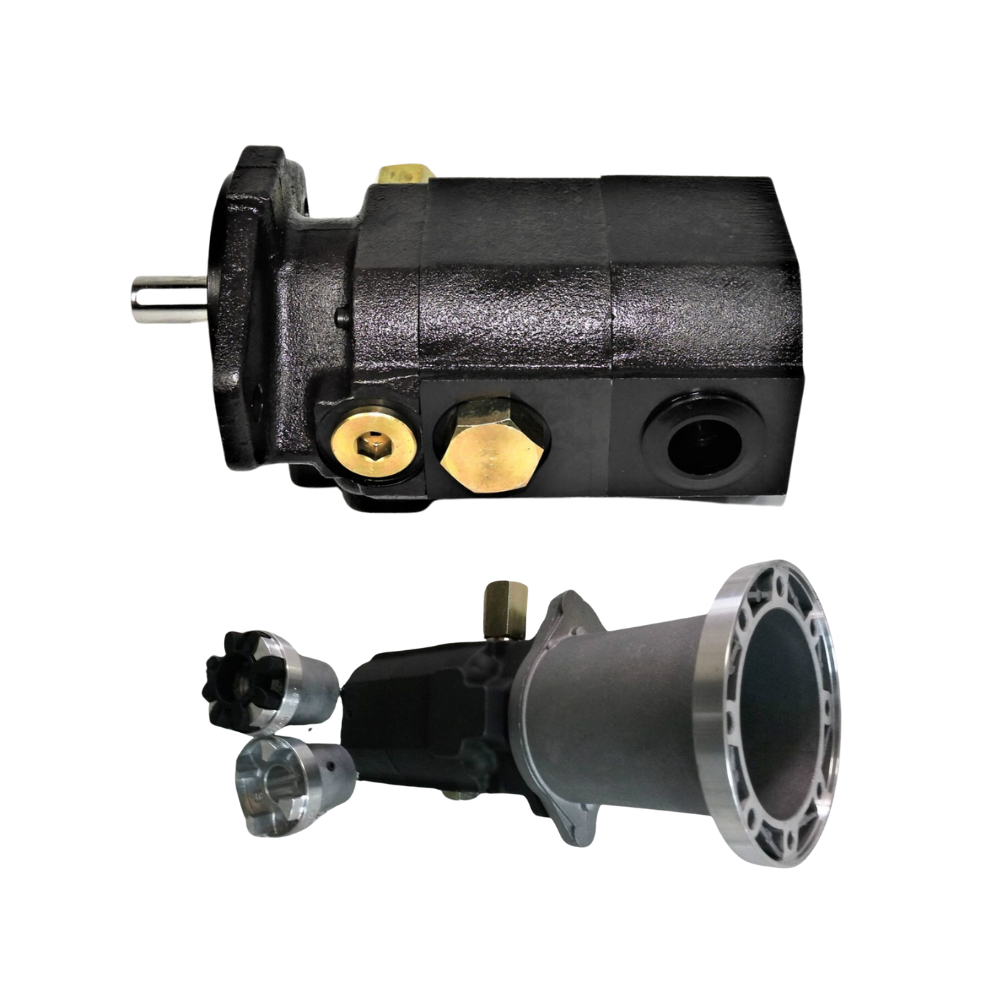

This is high quality, cast iron hydraulic log splitter pump that comes complete with a ready-to-bolt-on bell house & couplers to fit 1" shaft Honda motors (& most copies off). This pump requires a minimum of 15 HP.

This pump is a Hi-Lo unit, which means it closes your log splitter blade quickly, then produces maximum PSI to split the wood.

It is rated to 3600RPM max. This pump requires a minimum of 15 HP.

If not enough HP is available, the pump will not be capable of making high enough PSI, which in turn creates the high tonnage required.

Tonnage will be determined by the Bore size of your ram, for example, a 4" bore ram will produce 16 tonnes @ 3000 psi, whilst a 5" bore ram will produce 26 tonnes @ 3000 psi

• 1" BSP Suction port
• 3/4" BSP tapered pressure port.
• The shaft is a 5/8"
