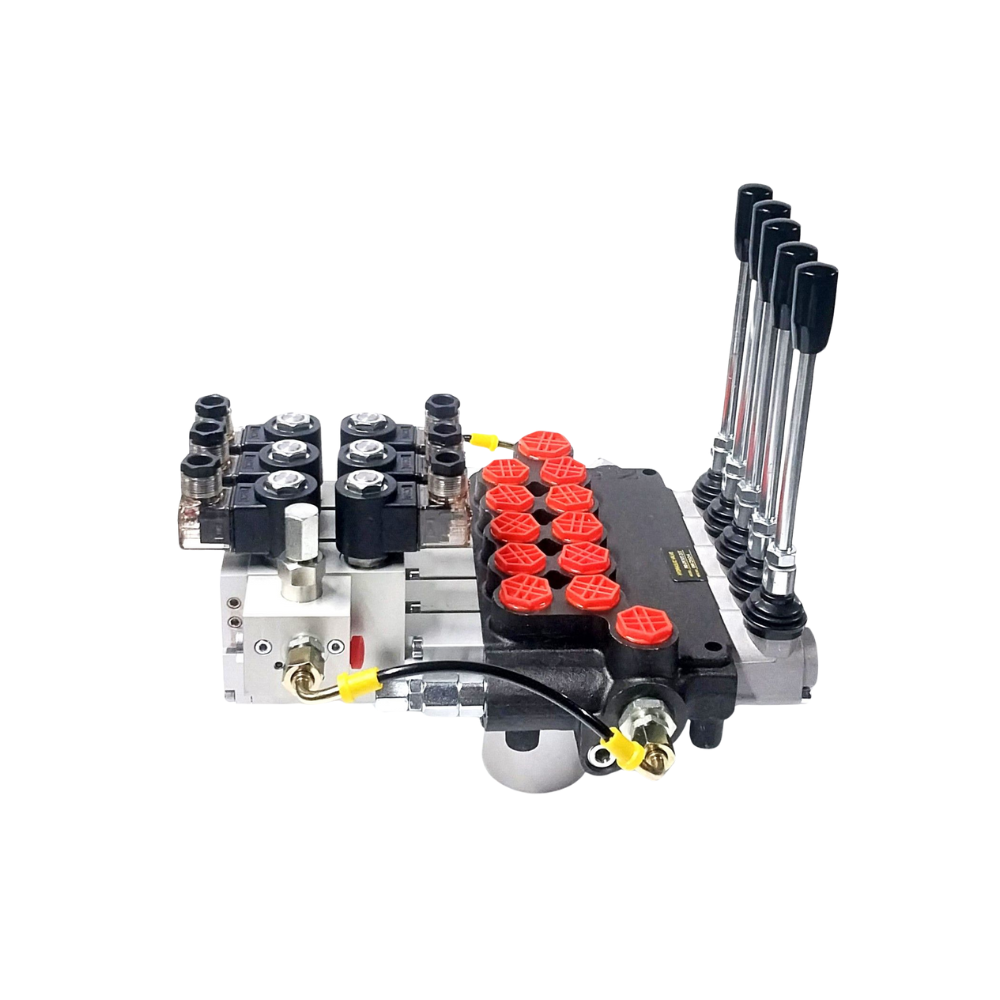

Tilt Tray Electric Remote Control Hydraulic Valve 5 Functions 3 x Remote 80LPM

Tilt Tray or Tow Truck Ready Electro-Hydraulic 5 Spool Monoblock Valve and 3 x Electro-Hydraulic controls with 80L/min Flow and 250 Bar Rating. Designed for high performance hydraulic control in transport, recovery, and industrial applications.

This listing is for the hydraulic valve only and includes electro-hydraulic solenoids. The radio remote kit is not included and can be purchased separately here: Remote Kit Listing

Features:

• 5 Spool Monoblock Valve (5 Levers / 10 Functions)

• 3 Electro-Hydraulic Solenoids (2 Actuators Per Spool for 3 Spools)

• Allows Control of 3 Functions via Electrical Input (e.g. Remote or Switch Panel)

• Manual Lever Control on All Functions with Override

• Durable Steel Construction with Case Hardened Steel Spools

• Cylinder Spools for Load Holding When Controls Are Released

• Spring Return to Centre for Safe and Precise Operation

• Adjustable Built-In Relief Valve (Factory Set at 175 Bar / 2500 PSI)

Common Applications:

• Winch In / Out

• Tray Slide In / Out

• Tray Up / Down

• Tilt Tray Trucks and Recovery Vehicles

• Crane Trucks, Skip Bin Trucks

• Farming, Excavation and Drilling Equipment

• Any System Requiring Control of Multiple Hydraulic Cylinders or Motors

Specifications:

• Construction: Monoblock Steel

• Spool Material: Case Hardened Steel

• O-Rings: NBR (Buna-N®)

• Number of Spools: 5

• Electro-Hydraulic Actuators: 6 (Across 3 Spools)

• Spool Type: Cylinder

• Spool Movement: Lever Action, Spring Return to Centre

• Max Flow Rate: 80 Litres/Minute (20 GPM)

• Max Working Pressure: 250 Bar (3,675 PSI)

Port Sizes:

• Pressure Port: 1/2" BSPP

• Cylinder Ports: 1/2" BSPP

• Tank Port: 3/4" BSPP

• Power Beyond Port: 3/4" BSPP

Additional Information:

• Operating Temperature: -20°C to +80°C

• Dimensions: 380 x 360 x 160 mm (300 mm Height with Levers Installed)

• Weight: 17 kg

• Suitable Replacement for Most Tilt Tray Spool Valves

• Can Reuse Existing Hoses or Adapt with Available Fittings

• Requires Clean, Filtered Hydraulic Oil for Operation

• Compatible with 24V DC Electrical Systems

• Wiring Diagram Typically Supplied for Installation

• Suitable for DIY Installation with Basic Mechanical and Electrical Knowledge
