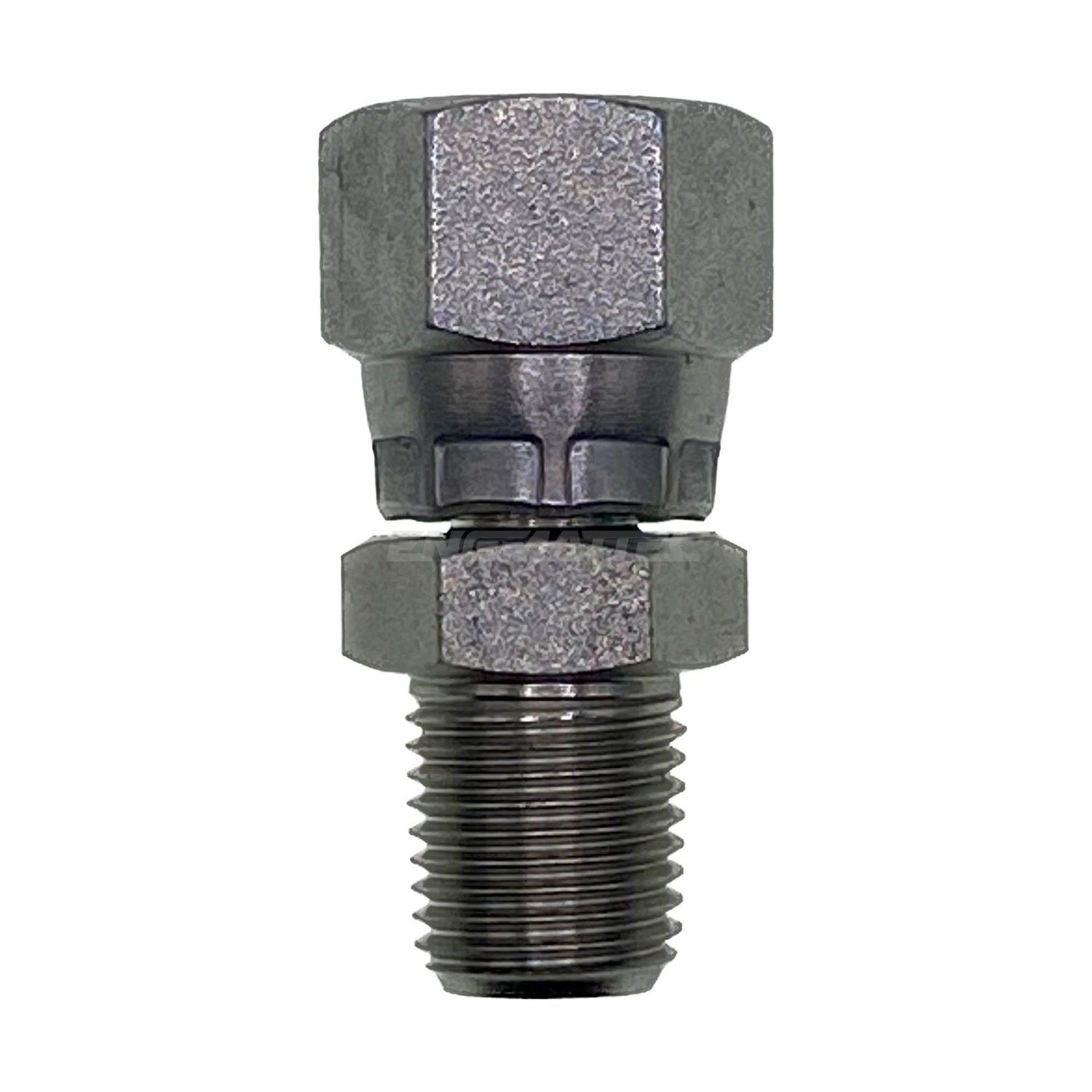

BSP Test Gauge Female x BSP Tapered Male Straight Gauge Adaptor

A BSP gauge port one end and a BSP tapered male the other. Screws into a BSPT port and gives you somewhere to put a gauge.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Test Gauge Female – BSP female sized for a pressure gauge or test point. It seals on the gauge’s own seat or a bonded washer, depending on the gauge fitted.
• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.

How to Choose

• The BSPT end seals on the thread and needs sealant.
• Confirm the gauge thread form before you fit it, parallel or tapered.
• Cap the port when nothing is on it.

Technicians Advice

An open gauge port collects grit and water, and it all goes into the circuit the moment a gauge is screwed in. Cap it between uses, even if that means one more small part on the shelf.

Where You’ll Find It

• BSP Test Gauge Female – pressure testing and diagnostics – permanent gauge ports on valve banks and power packs, and temporary test connections during commissioning or fault-finding.
• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.

Cross-Reference

• BSP Test Gauge Female – BSP gauge port. Check whether the gauge is a parallel thread with a washer or a tapered thread before you fit it, because both are sold as “BSP gauge”.
• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
BGF-BTM-0404	1/4" BSPT	1/4" BSPP Gauge Thread	31mm	19mm	17mm	Mild steel	Plated finish

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
